21

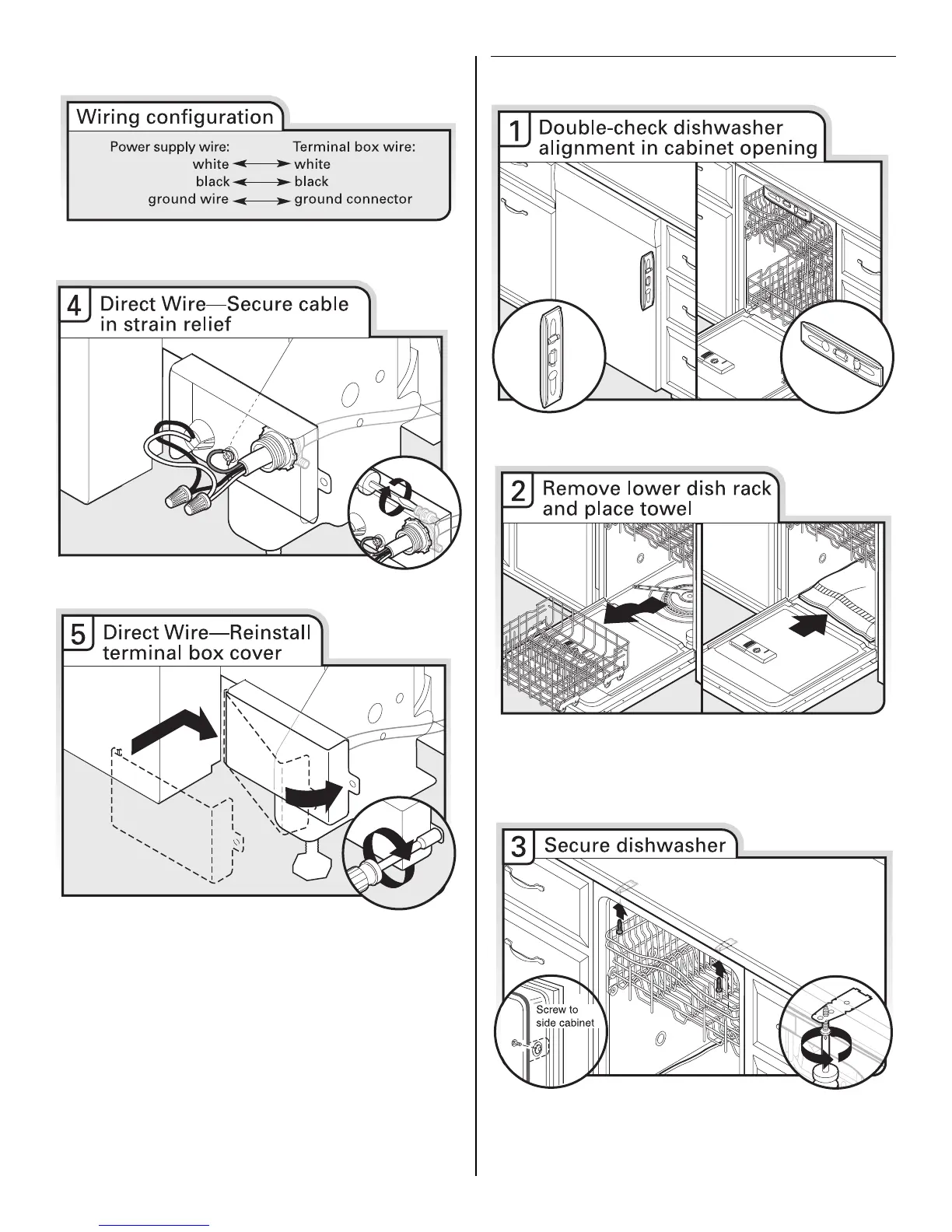

Connect wires black to black and white to white, using UL
Listed/CSA Approved twist-on wire connectors (not included).
If needed, see website for animated representation of this step.
Visit www.maytag.com/electrical under FAQ tab.
Tighten strain relief screws to secure cable.
Place wires inside terminal box. Insert tabs on left side of cover.
Make sure wires are tucked inside box. Close cover ensuring
wires are not pinched. Use ¹⁄₄" nut driver or Torx
®
T20
®
screwdriver
and previously removed screw to secure cover.
Secure Dishwasher in Cabinet Opening
Check that dishwasher is still level front-to-back and side-to-side
in cabinet opening.
Open dishwasher door, remove lower dish rack, and place towel
over pump assembly and lower spray arm of dishwasher. This will
keep screws from falling into pump area when you are securing
the dishwasher.
NOTE: Do not drop screws into bottom of dishwasher.
