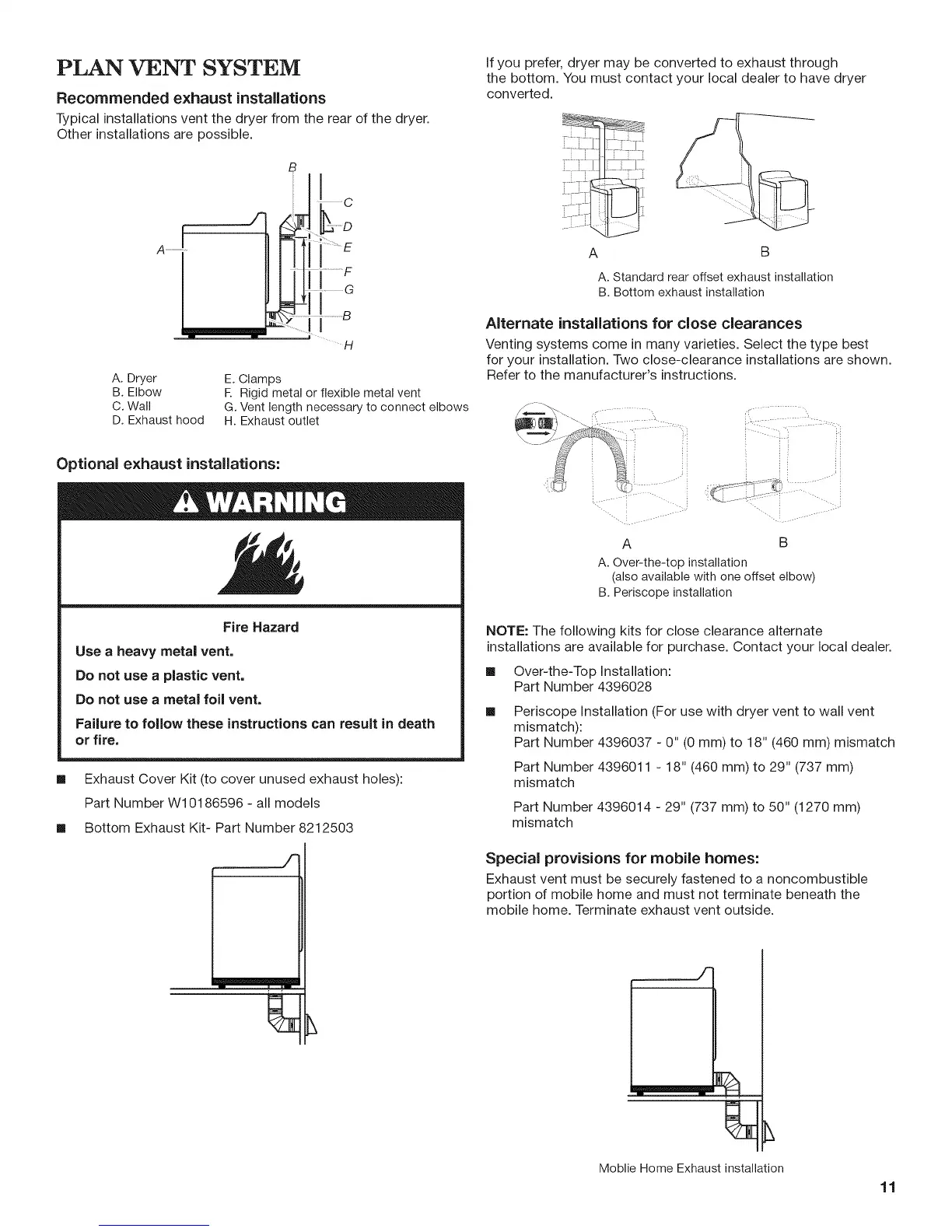

PLAN VENT SYSTEM
Recommended exhaust installations
Typical installations vent the dryer from the rear of the dryer.
Other installations are possible.
A ...........................
B
C
..............F
.... e
.............g
H
A. Dryer
B. Elbow
C. Wall
D. Exhaust hood
E. Clamps
R Rigid metal or flexible metal vent
G. Vent length necessary to connect elbows
H. Exhaust outlet
If you prefer, dryer may be converted to exhaust through
the bottom. You must contact your local dealer to have dryer
converted.
A B
A. Standard rear offset exhaust installation
B. Bottom exhaust installation
Alternate installations for close clearances
Venting systems come in many varieties. Select the type best
for your installation. Two close-clearance installations are shown.
Refer to the manufacturer's instructions.
Optional exhaust installations:
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent,
Do not use a metal foil vent.
Failure to follow these instructions can result in death
or fire.
[] Exhaust Cover Kit (to cover unused exhaust holes):
Part Number W10186596 - all models
[] Bottom Exhaust Kit- Part Number 8212503
A B
A. Over-the-top installation
(also available with one offset elbow)
B. Periscope installation
NOTE: The following kits for close clearance alternate
installations are available for purchase. Contact your local dealer.
[] Over-the-Top Installation:
Part Number 4396028
[]
Periscope installation (For use with dryer vent to wall vent
mismatch):
Part Number 4396037 - 0" (0 mm) to 18" (460 mm) mismatch
Part Number 4396011 - 18" (460 mm) to 29" (737 mm)
mismatch
Part Number 4396014 - 29" (737 mm) to 50" (1270 mm)
mismatch
Special provisions for mobile homes:
Exhaust vent must be securely fastened to a noncombustible
portion of mobile home and must not terminate beneath the
mobile home. Terminate exhaust vent outside.
Mobile Home Exhaust installation
11
