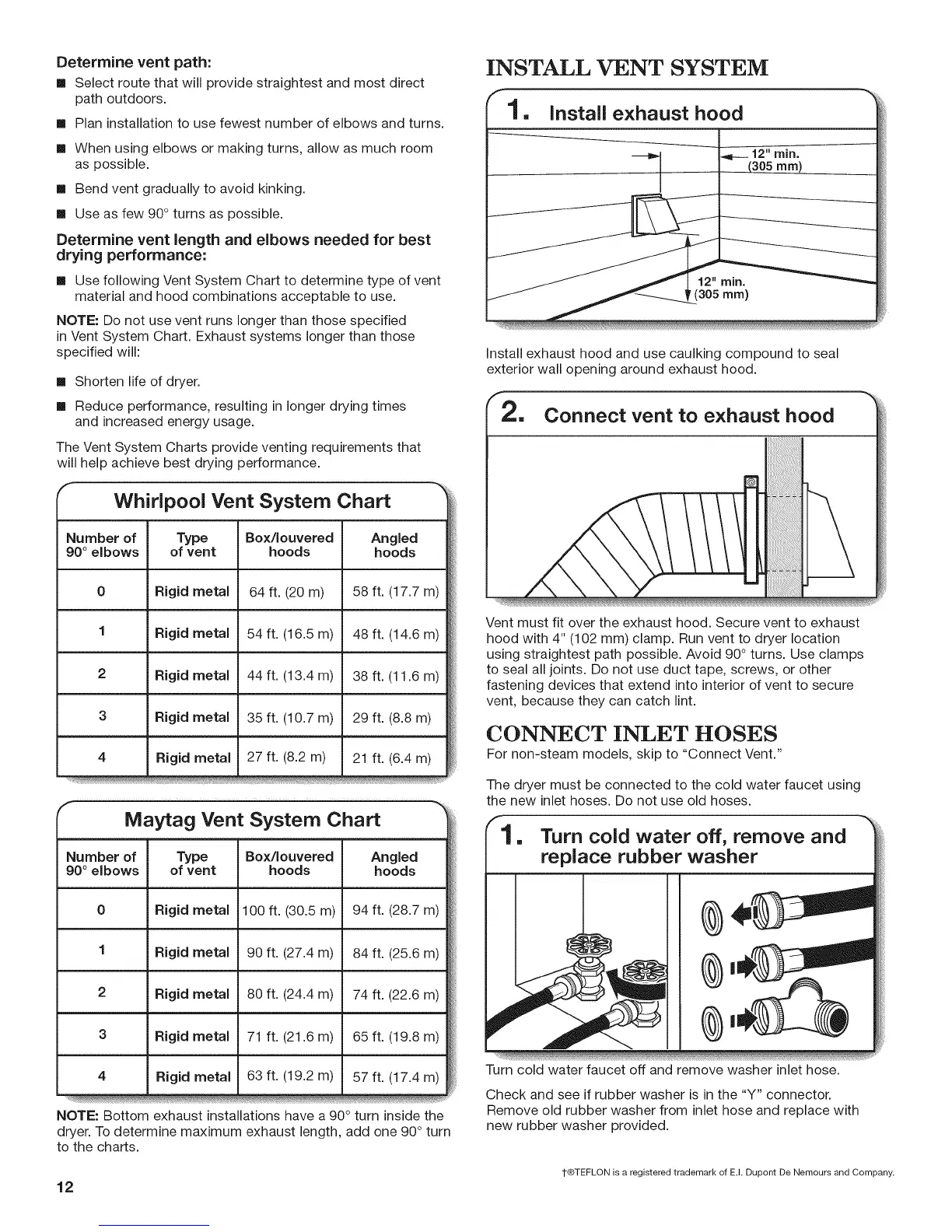

Determine vent path:
[] Select route that will provide straightest and most direct
path outdoors.
[] Plan installation to use fewest number of elbows and turns.
[] When using elbows or making turns, allow as much room
as possible.
[] Bend vent gradually to avoid kinking.
[] Use as few 90° turns as possible.
Determine vent length and elbows needed for best
drying performance:
[] Use following Vent System Chart to determine type of vent
material and hood combinations acceptable to use.
NOTE: Do not use vent runs longer than those specified
in Vent System Chart. Exhaust systems longer than those
specified will:
[] Shorten life of dryer.
[] Reduce performance, resulting in longer drying times
and increased energy usage.
The Vent System Charts provide venting requirements that
will help achieve best drying performance.
Whirlpool Vent System Chart
Number of Type Box/Iouvered Angled
90 ° elbows of vent hoods hoods
0 Rigid metal 64 ft. (20 m) 58 ft. (17.7 m)
1 Rigid metal 54 ft. (16.5 m) 48 ft. (14.6 m)
2 Rigid metal 44 ft. (13.4 m) 38 ft. (11.6 m)
3 Rigid metal 35 ft. (10.7 m) 29 ft. (8.8 m)
4 Rigid metal 27 ft. (8.2 m) 21 ft. (6.4 m)
Mayta9 Vent System Chart
Number of Type Box/Iouvered Angled
90 ° elbows of vent hoods hoods
0 Rigid metal 100 ft. (30.5 m) 94 ft. (28.7 m)
1 Rigid metal 90 ft. (27.4 m) 84 ft. (25.6 m)
2 Rigid metal 80 ft. (24.4 m) 74 ft. (22.6 m)
3 Rigid metal 71 ft. (21.6 m) 65 ft. (19.8 m)
4 Rigid metal 63 ft. (19.2 m) 57 ft. (17.4 m)
NOTE: Bottom exhaust installations have a 90 ° turn inside the
dryer. To determine maximum exhaust length, add one 90 ° turn
to the charts.
INSTALL VENT SYSTEM
1, Install exhaust hood
..__,2.m,o
(305 ram)
Install exhaust hood and use caulking compound to seal
exterior wall opening around exhaust hood.
2, Connect vent to exhaust hood
Vent must fit over the exhaust hood. Secure vent to exhaust
hood with 4" (102 mm) clamp. Run vent to dryer location
using straightest path possible. Avoid 90° turns. Use clamps
to seal all joints. Do not use duct tape, screws, or other
fastening devices that extend into interior of vent to secure
vent, because they can catch lint.
CONNECT INLET HOSES
For non-steam models, skip to "Connect Vent."
The dryer must be connected to the cold water faucet using
the new inlet hoses. Do not use old hoses.
1, Turn cold water off, remove and
replace rubber washer
®
®
®
Turn cold water faucet off and remove washer inlet hose.
Check and see if rubber washer is in the "Y" connector.
Remove old rubber washer from inlet hose and replace with
new rubber washer provided.
1®TEFLON is a registered trademark of E.L Dupont De Nemours and Company.
12
