Mazda 3 2016 - Fuse Panel Description

6 – 65
Maintenance and Care
Owner Maintenance
*Some models.
Fuse Panel Description

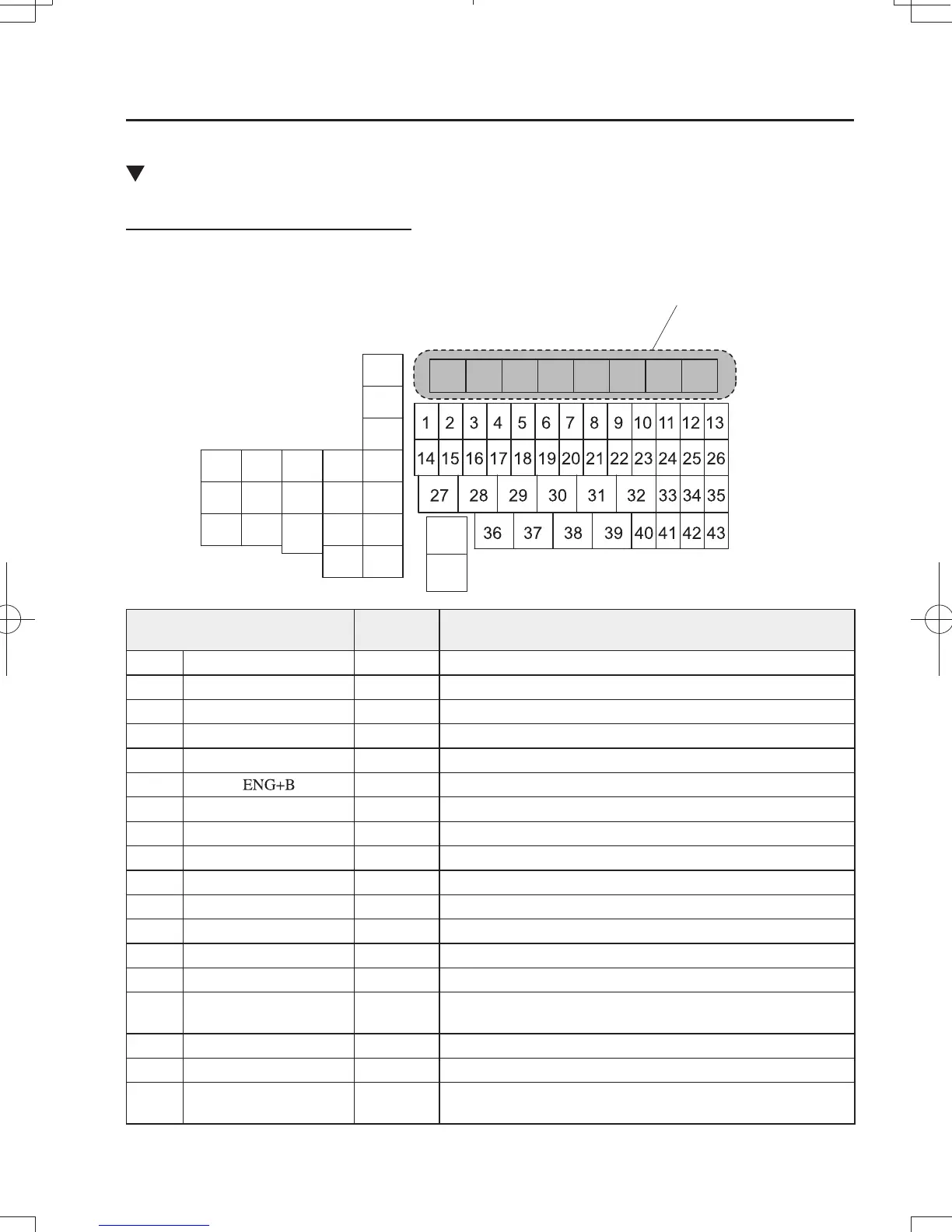

Fuse block (Engine compartment)
Multiplex slow blow fuse
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 FOG 15 A Fog lights
*
2 H/L HI 20 A Headlight high beam
*2
3 H/CLEAN 20 A —
4 STOP 10 A Brake lights
5 ROOM 15 A Overhead light
6
7.5 A Engine control system
7 FUEL WARM 15 A —
8 HAZARD 25 A Hazard warning À ashers, Turn signal lights
9 ABS/DSCS 30 A ABS, Dynamic stability control system
10 METER2 7.5 A —
11 AUDIO2 7.5 A Audio system
12 BOSE 25 A Bose
®
Sound System-equipped model
*
13 AUDIO1 15 A Audio system
14 FUEL PUMP 15 A Fuel system
15
HID R
D R L
15 A Headlight (RH)
*1
, Daytime running lights
*
16 AT PUMP 15 A —
17 HORN 15 A Horn
18 TAIL 15 A
Taillights, License plate lights, Parking lights, Front side-marker
lights
