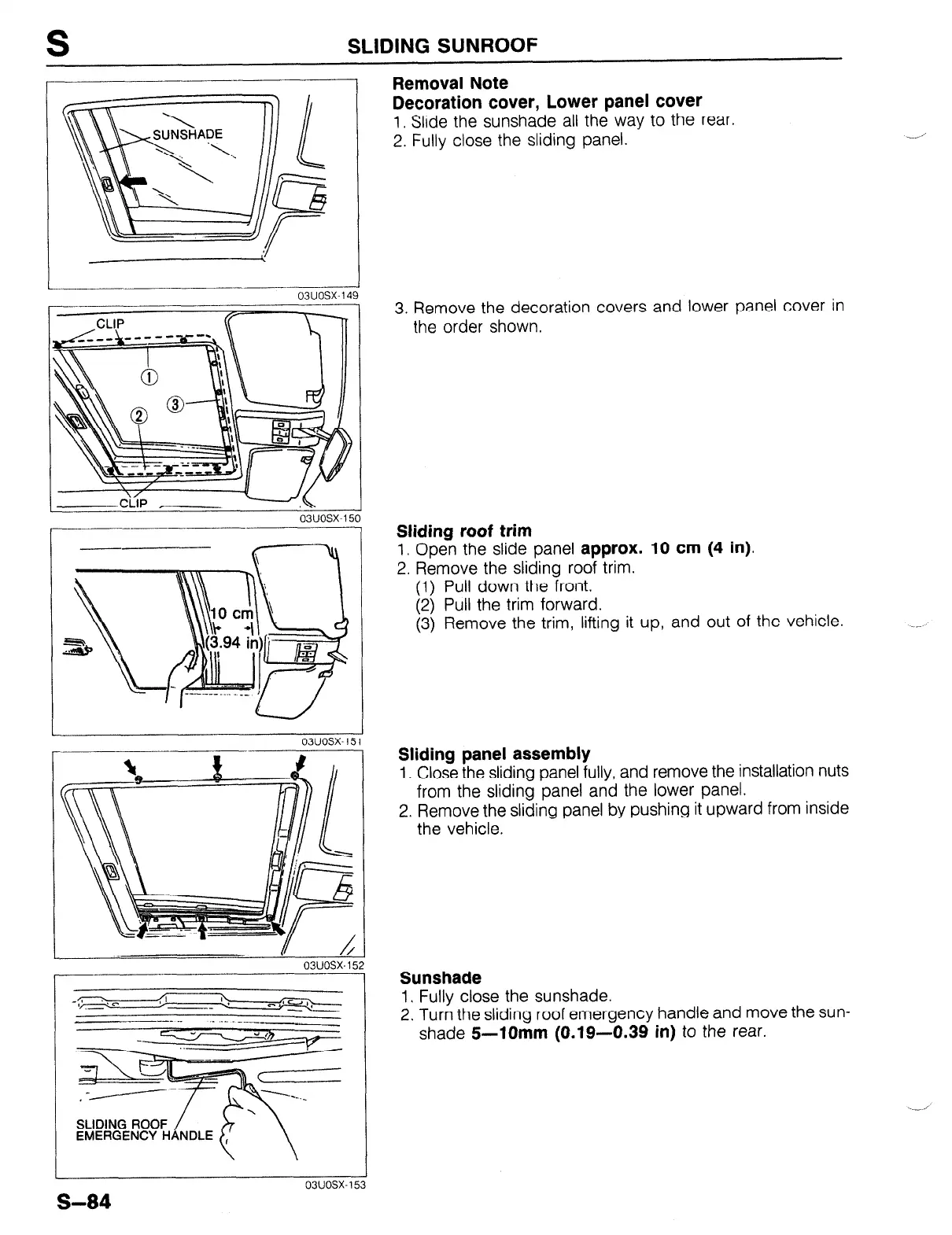

SLIDING SUNROOF
_________- -- J
03uosx-149
03uosx-150
-___-
SLIDING ROOF
/
EMERGENCY HANDLE
Removal Note
Decoration cover, Lower panel cover
1. Slide the sunshade all the way to the rear.
2. Fully close the sliding panel.
3. Remove the decoration covers and lower panel cover in
the order shown.
Sliding roof trim
1. Open the slide panel
approx. 10 cm (4 in).
2. Remove the sliding roof trim.
(1) Pull down the front.
(2) Pull the trim forward.
(3) Remove the trim, lifting it up, and out of the vehicle.
Sliding panel assembly
1. Close the sliding panel fully, and remove the installation nuts
from the sliding panel and the lower panel.
2. Remove the sliding panel by pushing it upward from inside
the vehicle.
Sunshade
1. Fully close the sunshade.
2. Turn the sliding roof emergency handle and move the sun-
shade
5-10mm (0.19-0.39 in)
to the rear.
