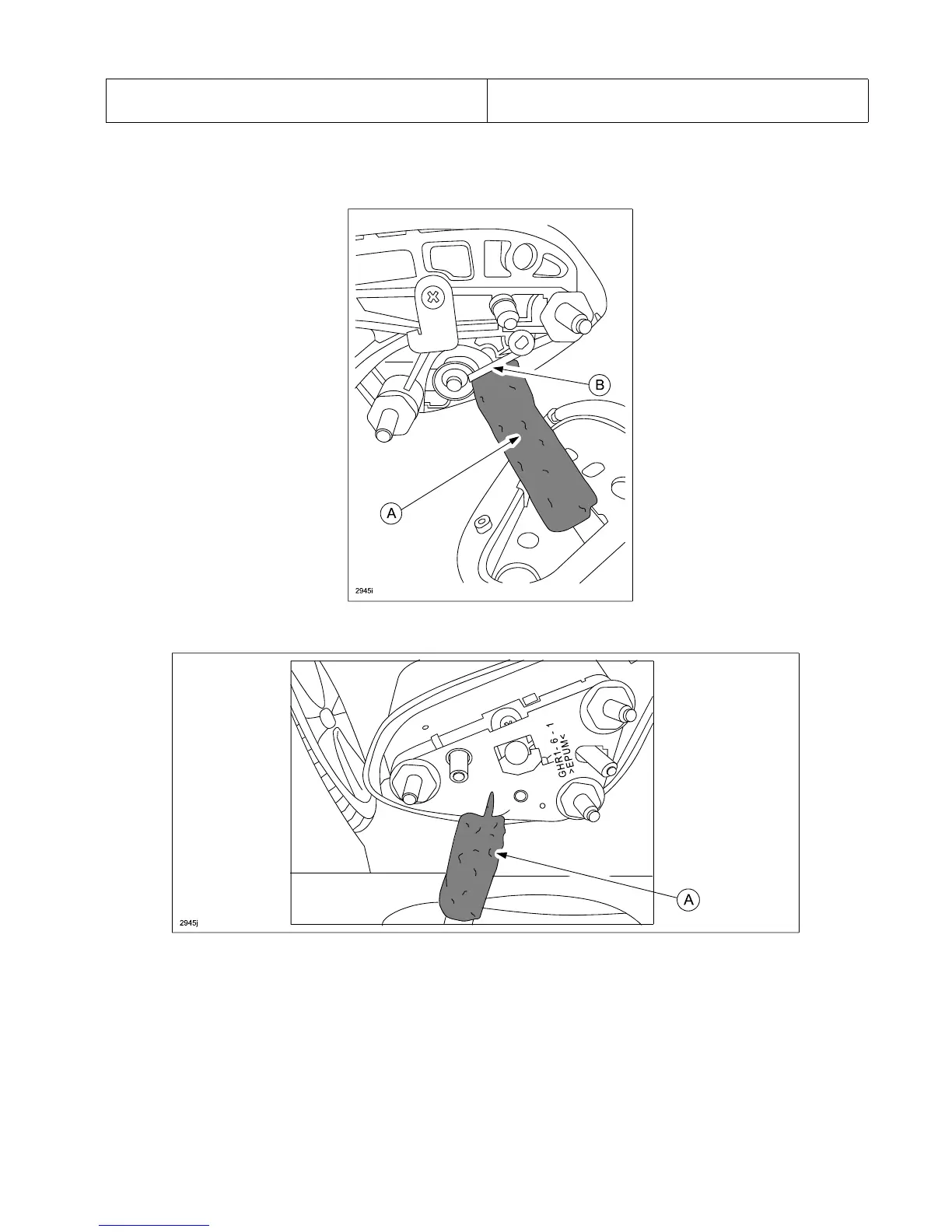

8. Attach the cut Form Rubber (A) (55mm X 55mm size) all around the harness, positioning one end at the mir-
ror side end of harness (B).
NOTE: Do not overlap the pad on the harness.
9. Install the seal rubber at the original position.
NOTE: After installing the seal rubber, confirm if the pad is installed to the harness correctly (A).
10. Install the power outer mirror. Refer to MS3 online or Workshop Manual (section 09-16 POWER OUTER
MIRROR REMOVAL/INSTALLATION).
