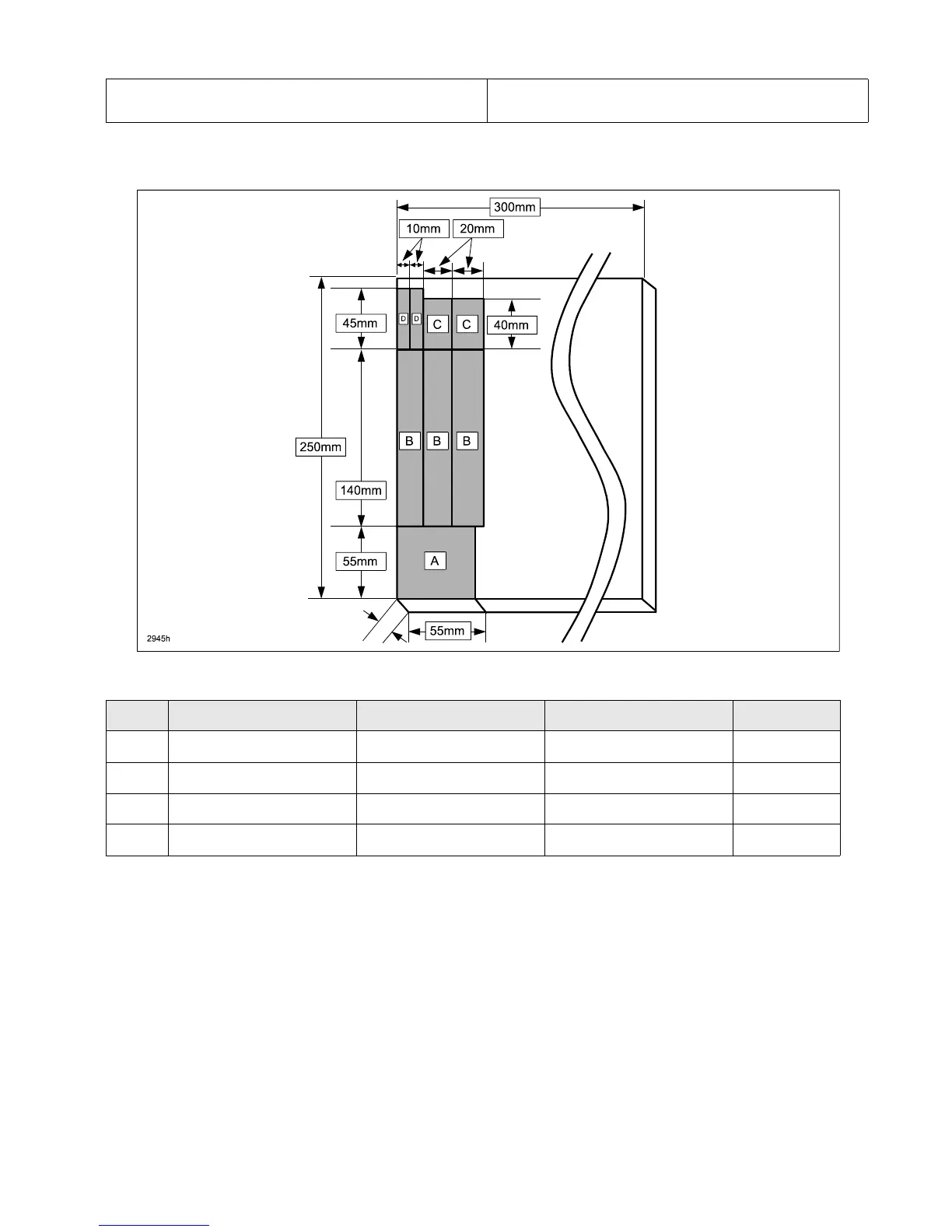

7. The image and table below show the pieces needed to perform door repairs. Select a 5 mm thick sheet of
Form Rubber from the “Noise Repair Kit K001 W0 225”. Cut eight pieces as shown below.
Piece Sheet Type Sheet Thickness Size Quantity
A Form Rubber 5mm 55mm X 55mm 1
B Form Rubber 5mm 20mm X 140mm 3
C Form Rubber 5mm 20mm X 40mm 2
D Form Rubber 5mm 10mm X 45mm 2
