SRS Air Bag Deployment Criteria

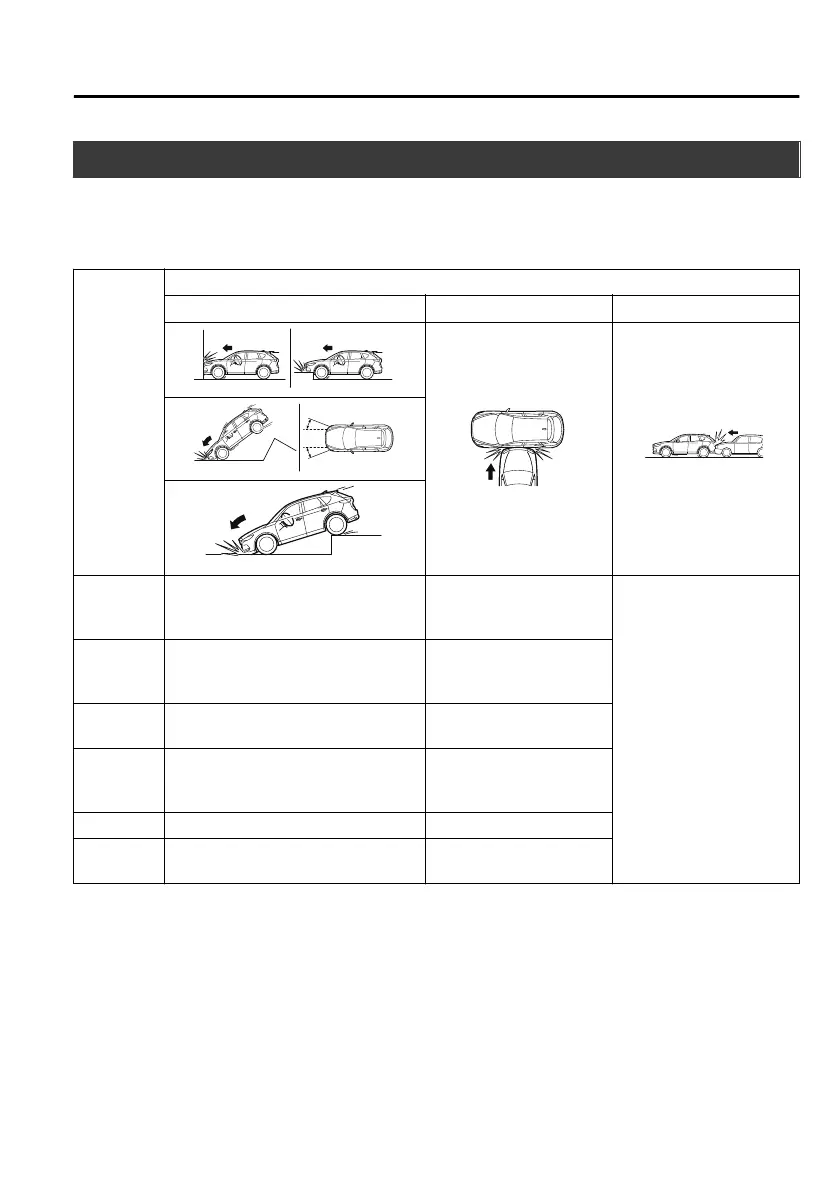

This chart indicates the applicable SRS equipment that will deploy depending on the type of
collision.
(The illustrations are the representative cases of collisions.)
SRS equip-
ment
Types of collision
A severe frontal/near frontal collision
A severe side collision
*1
A rear collision
Front seat
belt preten-
sioner
XX
No air bag and seat belt
pretensioner will be activat-
ed in a rear collision.
Rear seat
belt preten-
sioner
X
Driver air
bag
X
Front pas-
senger air
bag
X
Side air bag X (impact side only)
Curtain air
bag
X (impact side only)
X : The SRS air bag equipment is designed to deploy in a collision.
*
1 In a side collision, the seat belt pretensioners and the side/curtain air bags deploy.
NOTE
In a frontal offset collision, the equipped air bags and pretensioners may all deploy depending on the direction,
angle, and rate of impact.
Essential Safety Equipment
SRS Air Bags
2-63
