Fuse Panel Description

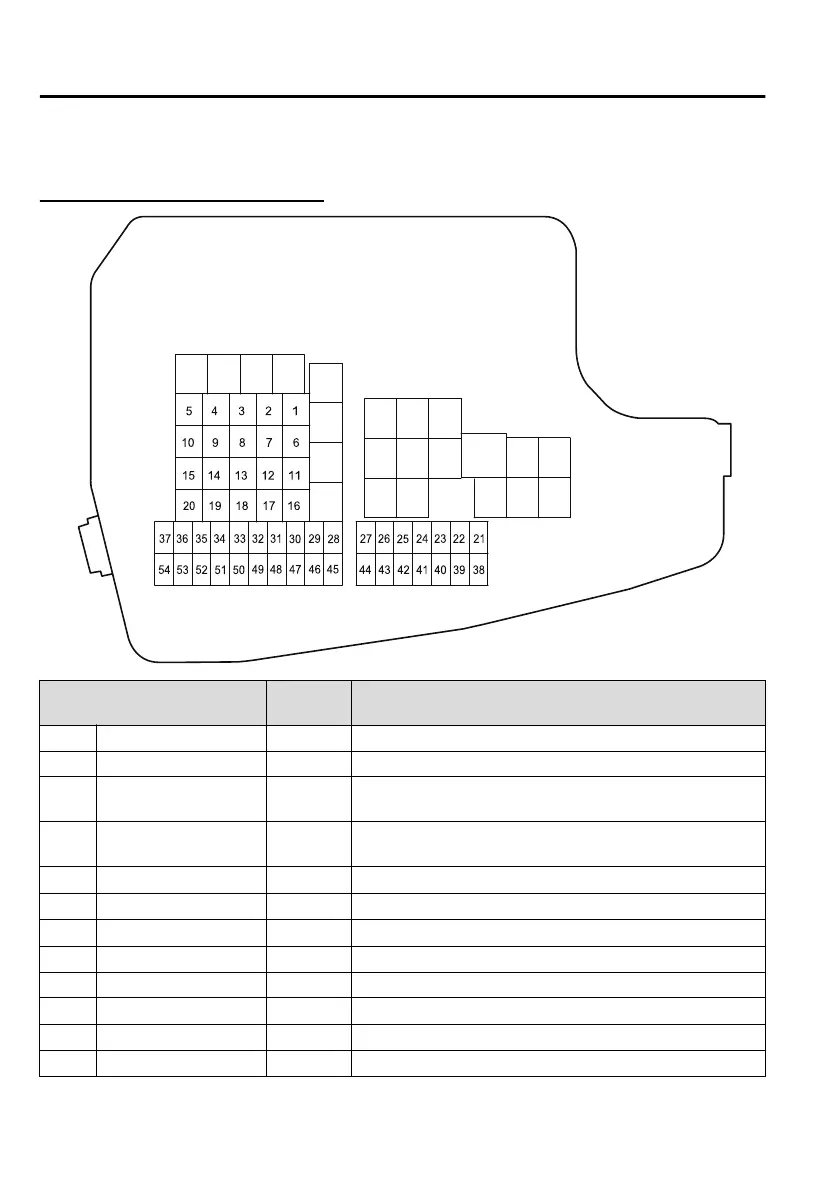

Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 CABIN.+B 50 A For protection of various circuits
2 IG2 30 A For protection of various circuits
3
INJECTOR
ENG.SUB
30 A
Engine control system
*
4
SCR1
EVVT
20 A
Engine control system
*
5P.WINDOW1 30 A
Power windows
*
6 R.HEATER 20 A Air conditioner
7 ADD FAN DE 40 A
Cooling fan
*
8 WIPER.DEI 20 A ―
9 DEFOG 40 A Rear window defogger
10 DCDC DE 40 A
For protection of various circuits
*
11 EPB R 20 A Electric parking brake (EPB) (RH)
12 EPB L 20 A Electric parking brake (EPB) (LH)
Maintenance and Care
Owner Maintenance
6-44
