DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
47 FUEL WARM 25 A
Fuel warmer
*
48 TAIL 15 A Tail lights, Number plate lights
49
SCR2
FUEL PUMP2
25 A ―
50 HAZARD 25 A Hazard warning flashers, Direction indicator lights, Tail lights
51 H/L LOW R 15 A Headlight low beam (RH)
52 OUTLET 25 A
Accessory sockets
*
53 STOP 10 A Brake lights
54 ROOM 15 A For protection of various circuit

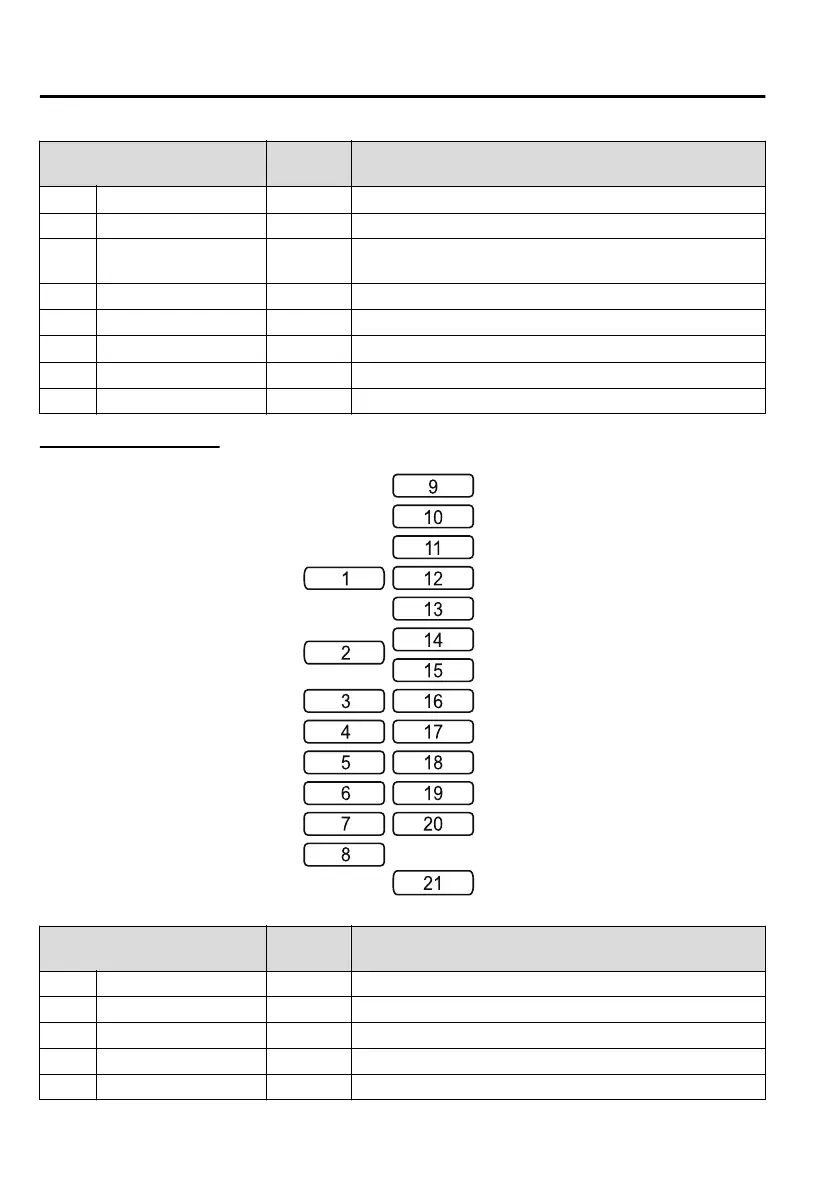

Fuse block (Left side)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 P.SEAT D 30 A Power seat
2 P.WINDOW3 30 A Power windows
3 R.OUTLET3 15 A ―
4 P.WINDOW2 25 A Power windows
5 ESCL 15 A Electronic steering lock
