4
–
144
When Driving
i-ACTIVSENSE

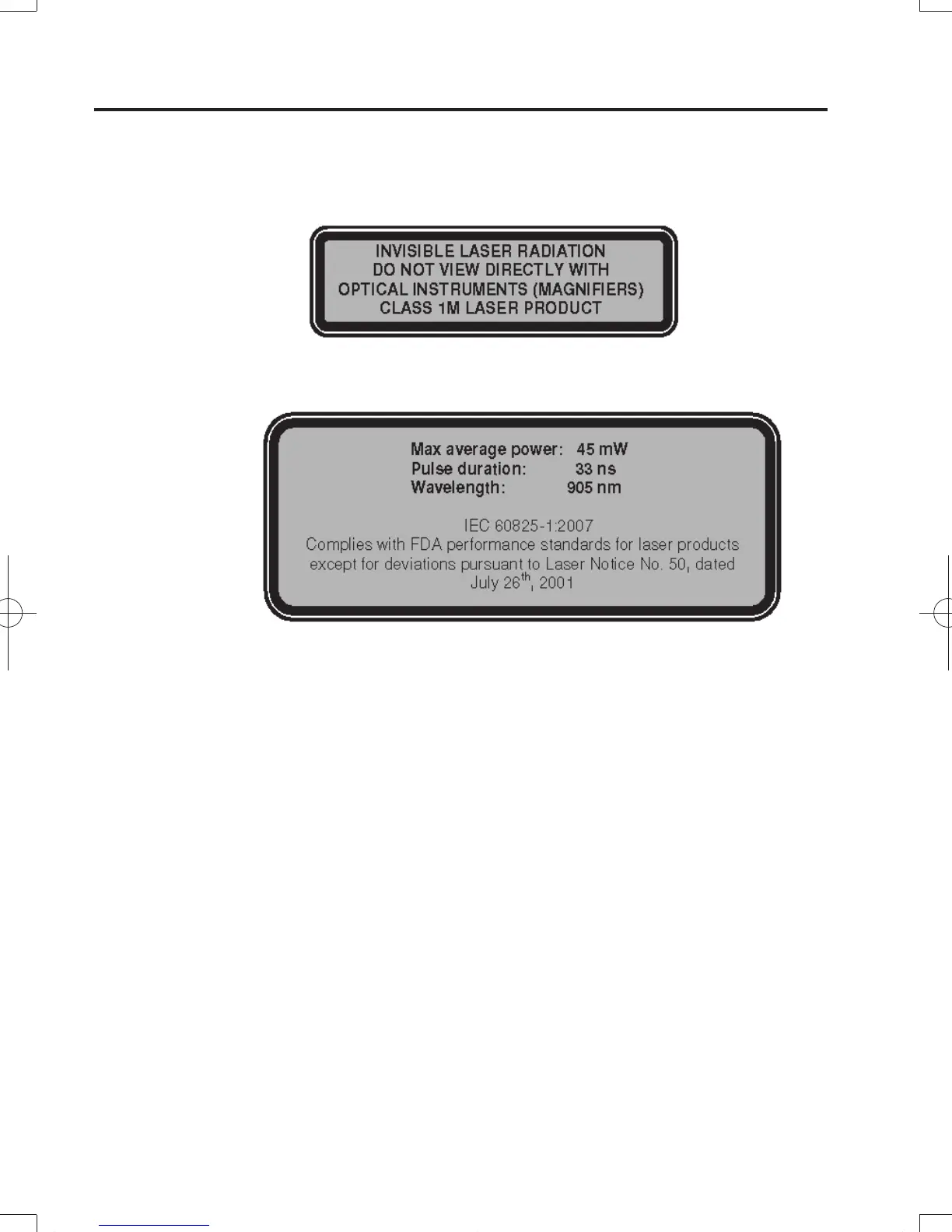

Laser classification label:
Laser explanatory label:
Laser sensor radiation data
Maximum average power: 45 mW
Pulse duration: 33 ns
Wavelength: 905 nm
Divergence angle (horizontal×vertical):28 degrees×12 degrees
N O T E
y
In the following cases, the laser sensor (front) cannot detect vehicles ahead correctly, and
each system may be unable to operate normally.
y
The windshield is dirty.
y
Elongated luggage or cargo is loaded onto installed roof rails and covers the laser
sensor (front).
y
Exhaust gas from the vehicle in front, sand, snow, and water vapor rising from
manholes and grating, and water splashed into the air.
y
If there are recognizable cracks or damage caused by À ying gravel or debris on the
windshield, always have the windshield replaced. Consult an Authorized Mazda Dealer
for replacement.
