Mazda CX-9 2016 - Fuse Panel Description

6 – 58
Maintenance and Care
Owner Maintenance
*Some models.

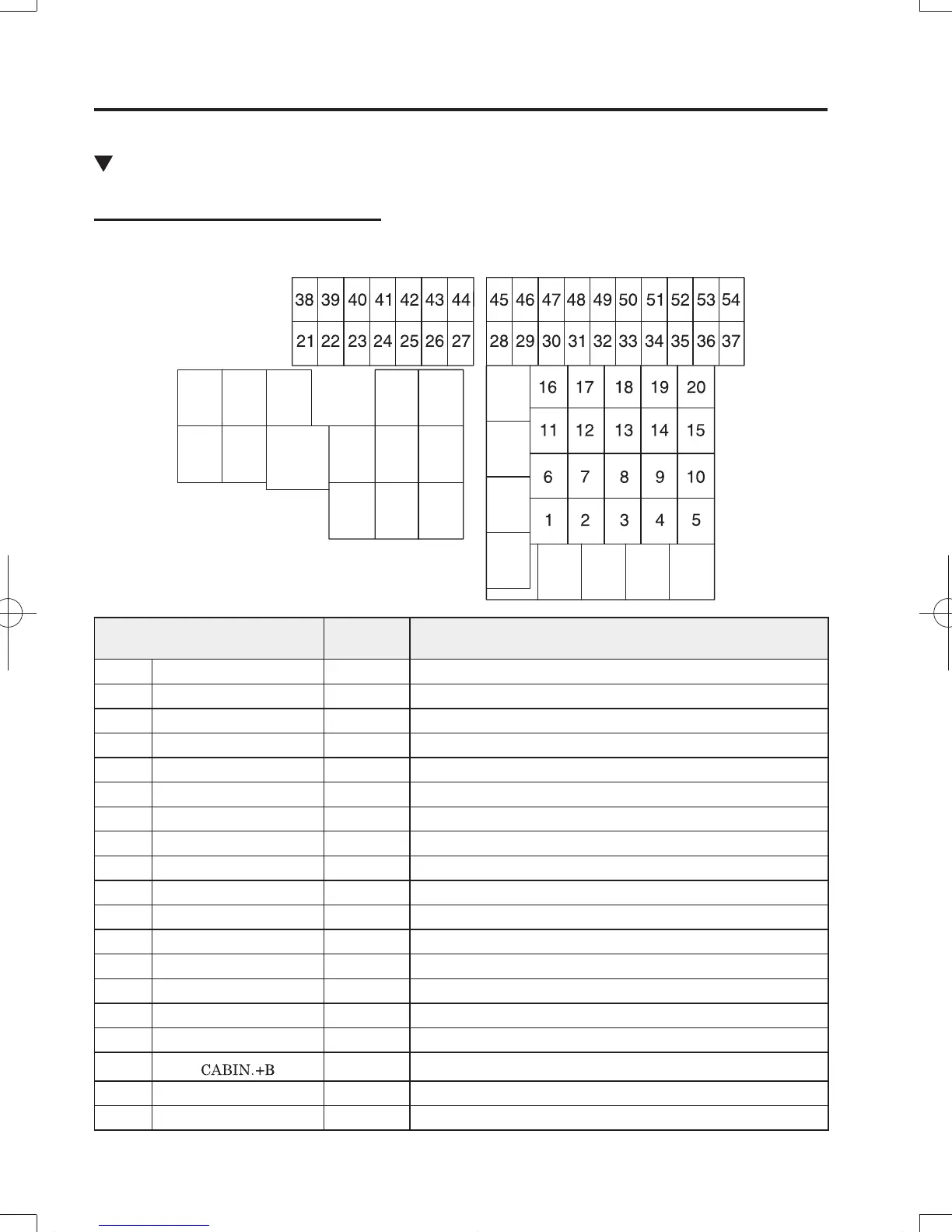

Fuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 WIPER.DEI 20 A —
2 IG2 30 A For protection of various circuits
3 INJECTOR 30 A Engine control system
4 — — —
5 P.WINDOW1 30 A Power windows
*
6 — — —
7 — — —
8 EVVT 20 A Engine control system
9 DEFOG 40 A Rear window defogger
10 — — —
11 R.HEATER 40 A Air conditioner
12 EPB L 20 A Electric parking brake (LH)
13 AUDIO 40 A Audio system
14 EPB R 20 A Electric parking brake (RH)
15 ENG.MAIN 40 A Engine control system
16 ABS/DSC M 50 A ABS, Dynamic stability control system
17


50 A For protection of various circuits
18 WIPER 20 A Front window wiper and washer
19 HEATER 40 A Air conditioner
