Maintenance and Care
Owner Maintenance

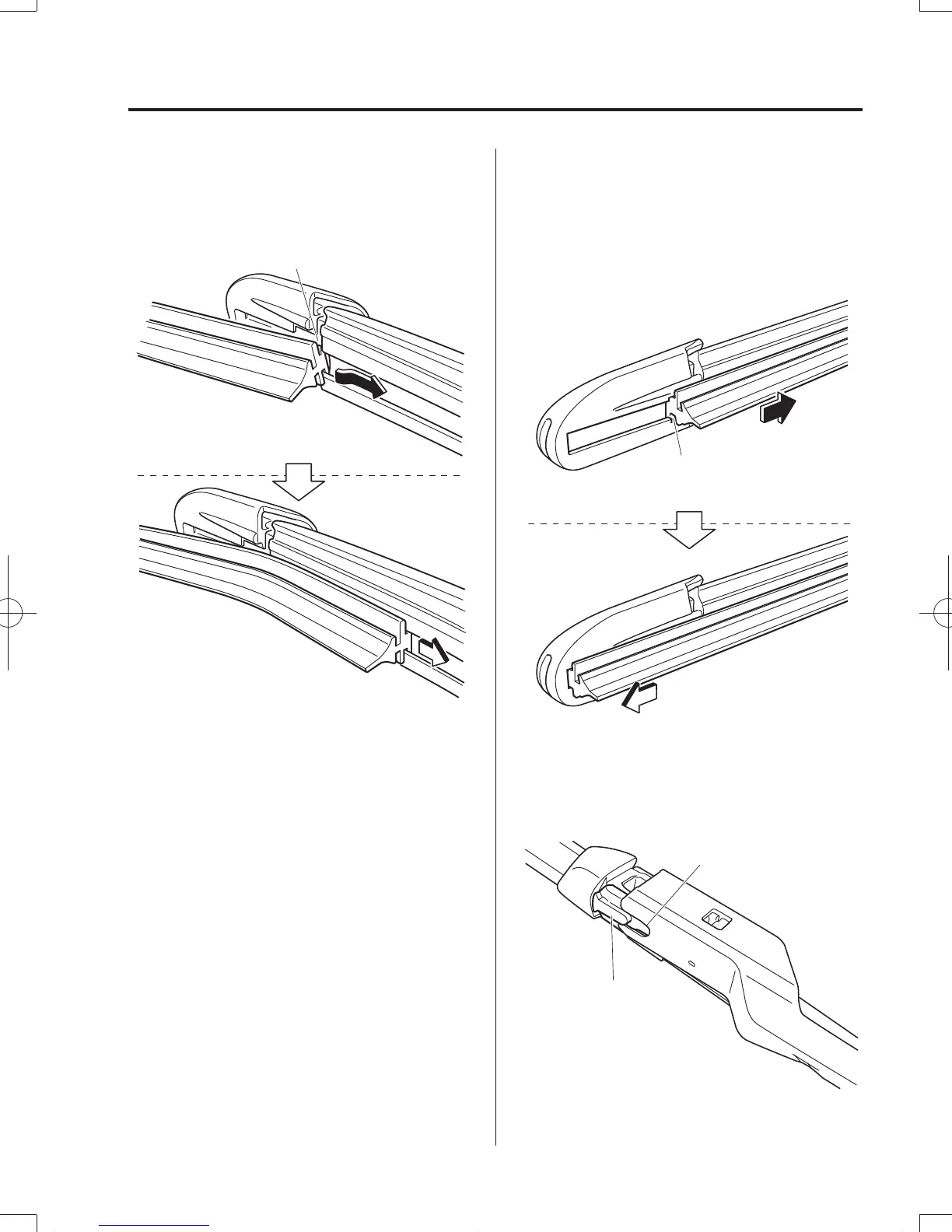

5. Insert the end of the new blade rubber
into the groove of the blade holder until
it contacts the end of the blade holder.
Groove
6. After pulling the blade rubber in the
direction of the arrow and sliding the
blade rubber to a position to check the
blade holder groove, slide the blade
rubber end in the opposite direction.
Groove
7. Make sure that the blade rubber is
correctly installed to the blade holder.
8. Align the blade component projection
with the wiper arm notch.
Projection
Notch
