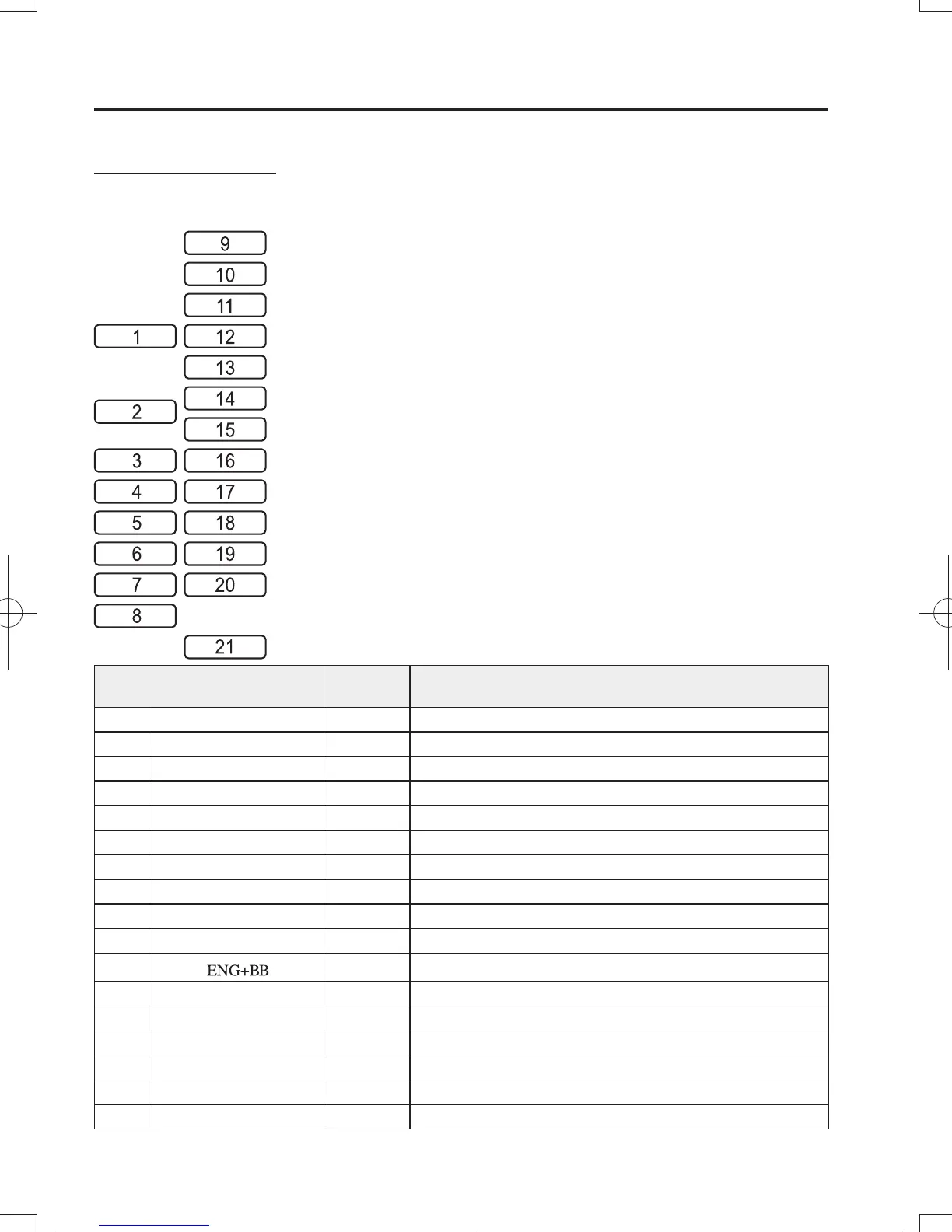

Fuse block (Left side)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 P.SEAT D 30 A Power seat
*
2 P.WINDOW3 30 A Power windows
*
3 R.OUTLET3 15 A Accessory sockets
4 P.WINDOW2 25 A Power windows
5 PLG 20 A Power liftgate
6 D.LOCK 25 A Power door locks
7 SEAT WARM 20 A Seat warmer
8 SRS2/ESCL 15 A
—
9 SUNROOF 10 A
Moonroof
10 INTERIOR2 15 A
Audio system
11
7.5 A
Engine control system
12 MIRROR 7.5 A
Power control mirror
13 AT IND 7.5 A
AT shift indicator
14 F.OUTLET 15 A
Accessory sockets
15 R.OUTLET1 15 A
—
16 — — —
17 M.DEF 7.5 A Mirror defogger
