If Trouble Arises
Flat Tire

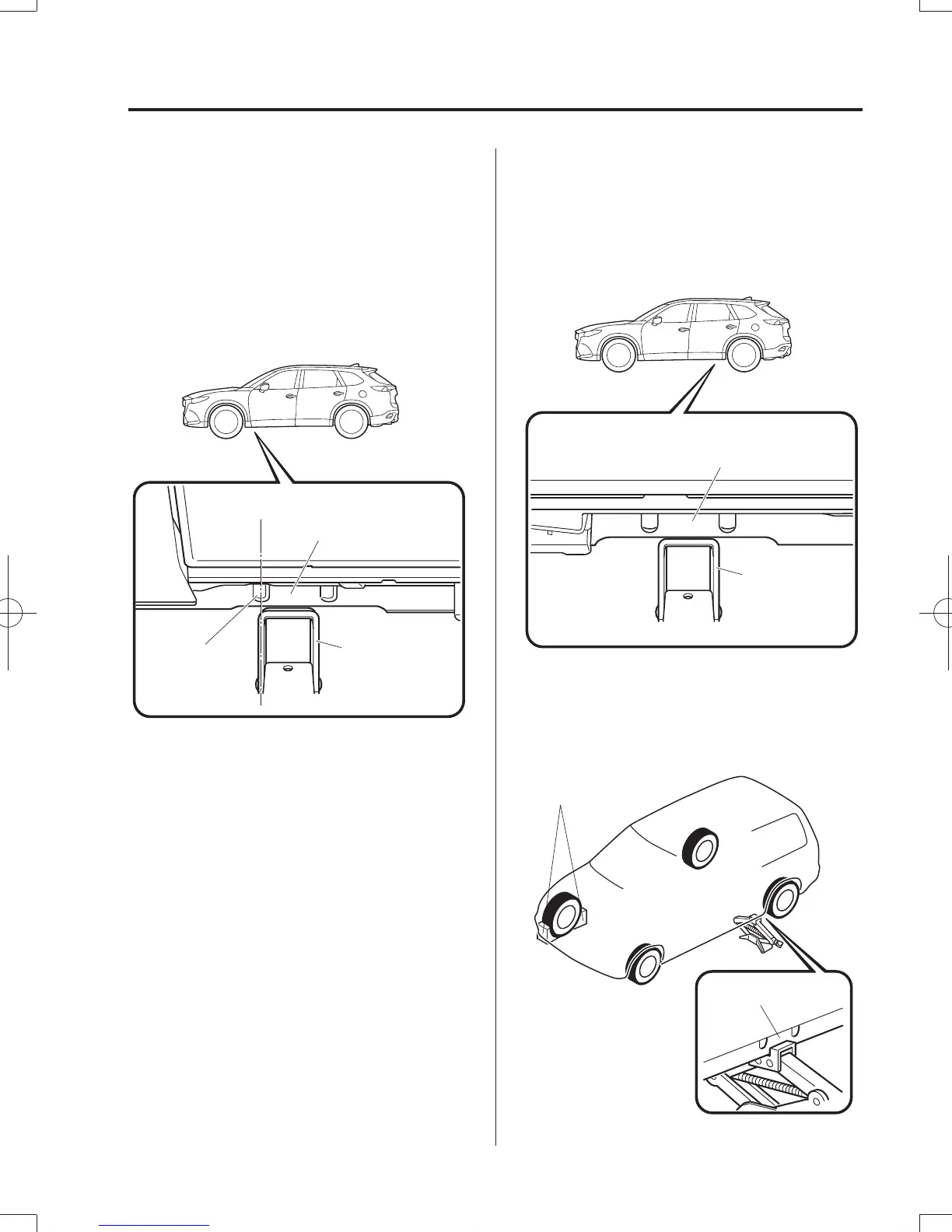

4. Set the jack to the designated jack-
up position closest to the tire being
removed.
(Jacking-up the vehicle front)
Set the groove on the top of the jack
head at a right angle into the center of
the designated jack-up position guide
projection closest to the vehicle front.
Jacking
position
Jacking head
Guide
projection
N O T E
Always set the jack into the designated
jack-up position shown in the ¿ gure
correctly.
(Jacking-up the vehicle rear)
Set the groove on the top of the jack
head at a right angle between the
designated jack-up position guide
projections.
Jacking
position
Jacking head
5. Continue raising the jack head
gradually by rotating the screw with
your hand until the jack head is inserted
into the jack-up position.
Tire blocks
Jacking position
