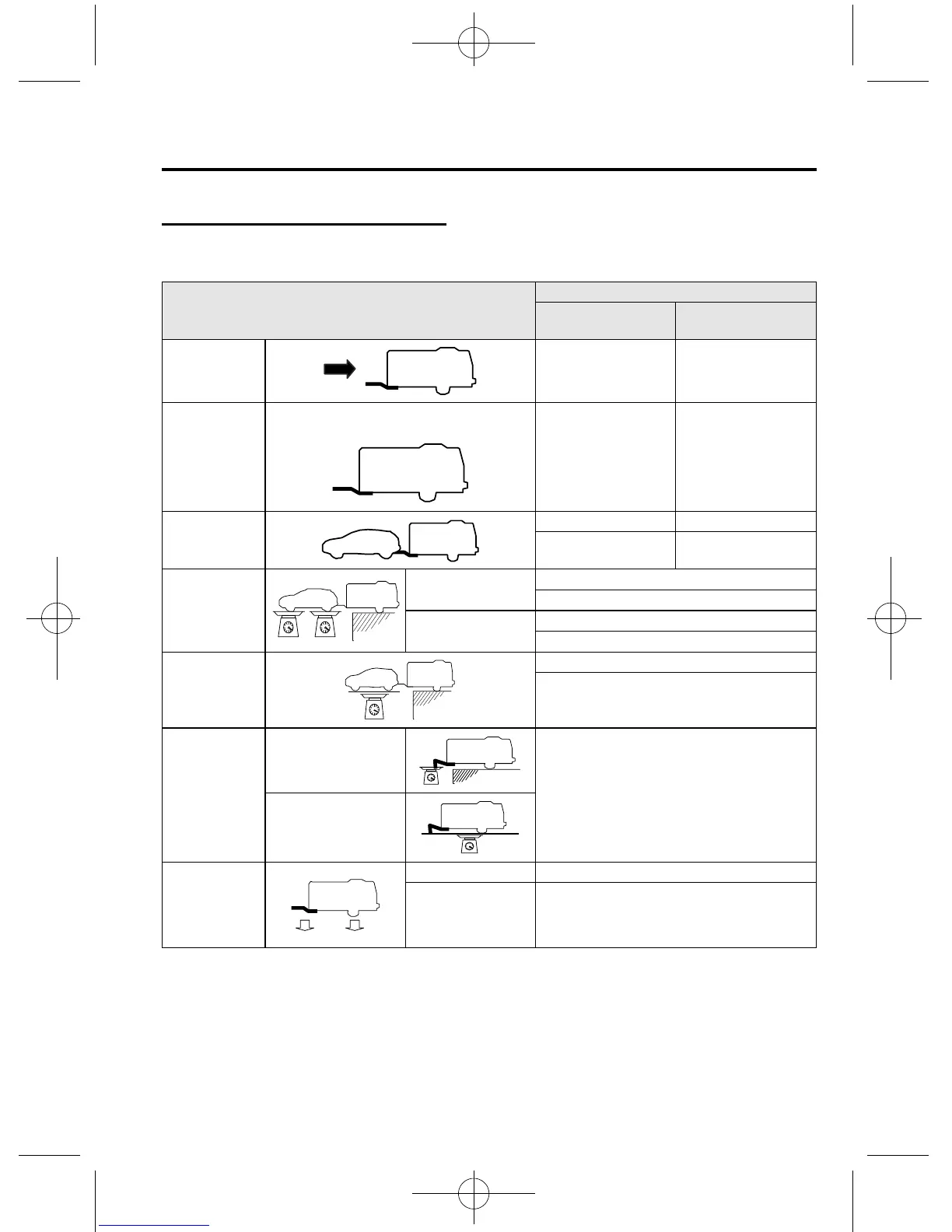

TRAILER TOWING-LOAD TABLE
Because vehicle weights vary, adjustments must be made to meet the requirements in this
table.
Item
Model
Without Towing
Package
With Towing Package
MAX.
FRONTAL
AREA
2.97 m
2
(32 ft
2
) 4.65 m
2
(50 ft
2
)
MAX. TTW
Add trailer's weight, load and hitch; vehicle
passengers and vehicle load
*1
907 kg (2,000 lb) 1,588 kg (3,500 lb)
MAX. GCWR
3,101 kg (6,836 lb)
*2
3,782 kg (8,337 lb)
*2
3,196 kg (7,045 lb)
*3
3,877 kg (8,547 lb)
*3
MAX. GAWR
Front
1,276 kg (2,813 lb)
*2
1,307 kg (2,881 lb)
*3
Rear
1,400 kg (3,086 lb)
*2
1,458 kg (3,214 lb)
*3
MAX. GVWR
2,645 kg (5,831 lb)
*2
2,720 kg (5,997 lb)
*3
TRAILER-
TONGUE
LOAD
Tongue load
Tongue load/Trailer load × 100 = 10 % to 15 %
Trailer load
DISTRIBU-
TION OF
TRAILER
LOAD
Front 60 %
Rear 40 %
*1 i.e. baggage, food, camp gear
*2 2WD
*3 AWD
GCWR: Gross Combination Weight Rating (sum of TTW, vehicle weights and 2
passengers)
GAWR: Gro ss Axle Weight Rating
Before Driving Your Mazda
Towing
4-15
