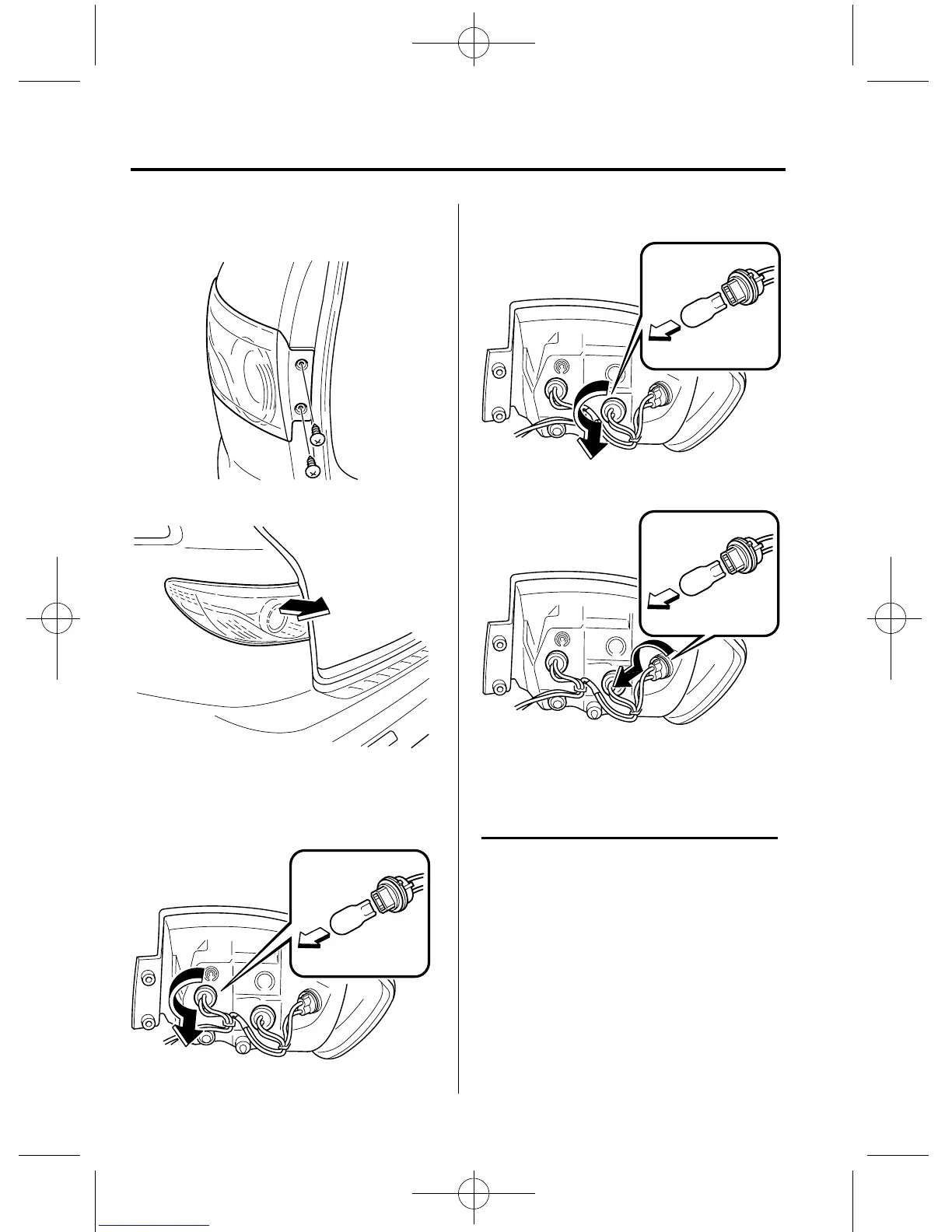

2. Turn the bolts counterclockwise and
remove them.
3. Pull the unit rearward to remove it.
4. Turn the socket and bulb assembly
counterclockwise and remove it.
Brake lights/Taillights
Rear turn signal lights
Rear side-marker light
5. Disconne ct the bulb from the socket.
6. Install the new bulb in the reverse order
of the removal procedure.
Taillights (Liftgate side), Reverse lights
1. Make sure the igni tion is switched off,
and the headlight switch is off.
