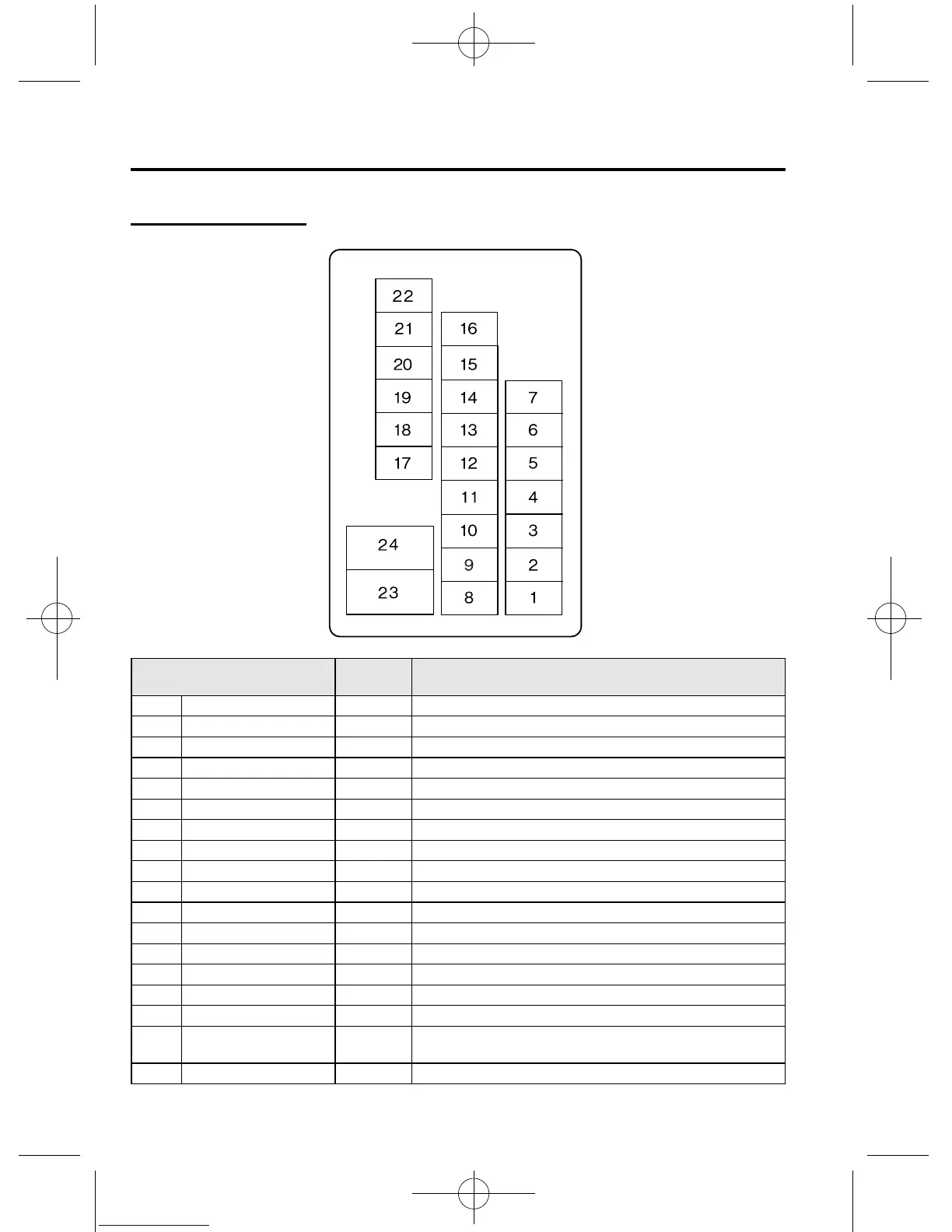

Fuse block (Glove box)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 OUTLET FR 15 A Accessory socket (Front)
2 MIRROR 7.5 A Power control mirror
3 C/U-IG1 15 A For protection of various circuits
4 METER 10 A Instrument cluster
5 SAS 7.5 A ABS, Air bag
6 ENG. IGA 7.5 A Engine control system
7 STA 7.5 A Engine control system
8 ―― ―
9 A/C 7.5 A Air conditioner
10 R.WIPER 15 A Rear window wiper
11 ―― ―
12 P.LIFT GATE 20 A Power lift gate
í
13 SUNROOF 15 A Moonroof
í
14 AUDIO 10 A Audio system
15 M.DEF 10 A Mirror defroster
í
16 P/W 25 A Power windows (Passenger-side)
17 TAIL 10 A
Taillights, Parking lights, License plate lights, Side-marker
lights
18 ILLUMI 10 A Instrument panel illumination
8-54
Maintenance and Care
í
Some models.
Owner Maintenance
