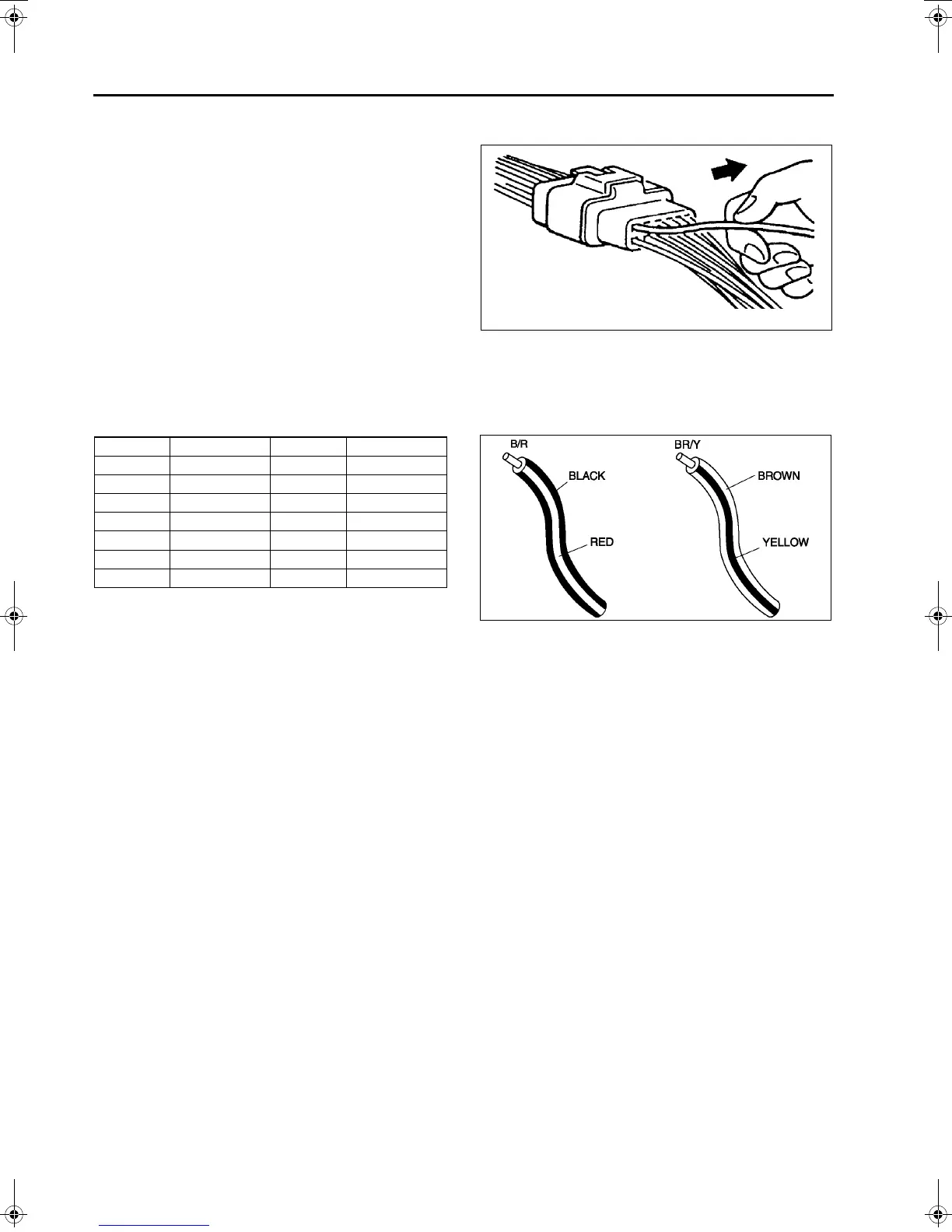

ELECTRICAL SYSTEM
Terminals
Inspection
• Pull lightly on individual wires to verify that they
are secured in the terminal.
Wiring Harness
Wiring color codes
• Two-color wires are indicated by a two-color code symbol.
• The first letter indicates the base color of the wire and the second the color of the stripe.
End Of Sie
X3U000WB4
CODE COLOR CODE COLOR
B Black O Orange
BR Brown P Pink
G Green R Red
GY Gray V Violet
LBlueWWhite
LB Light Blue Y Yellow
LG Light Green
X3U000WB7
