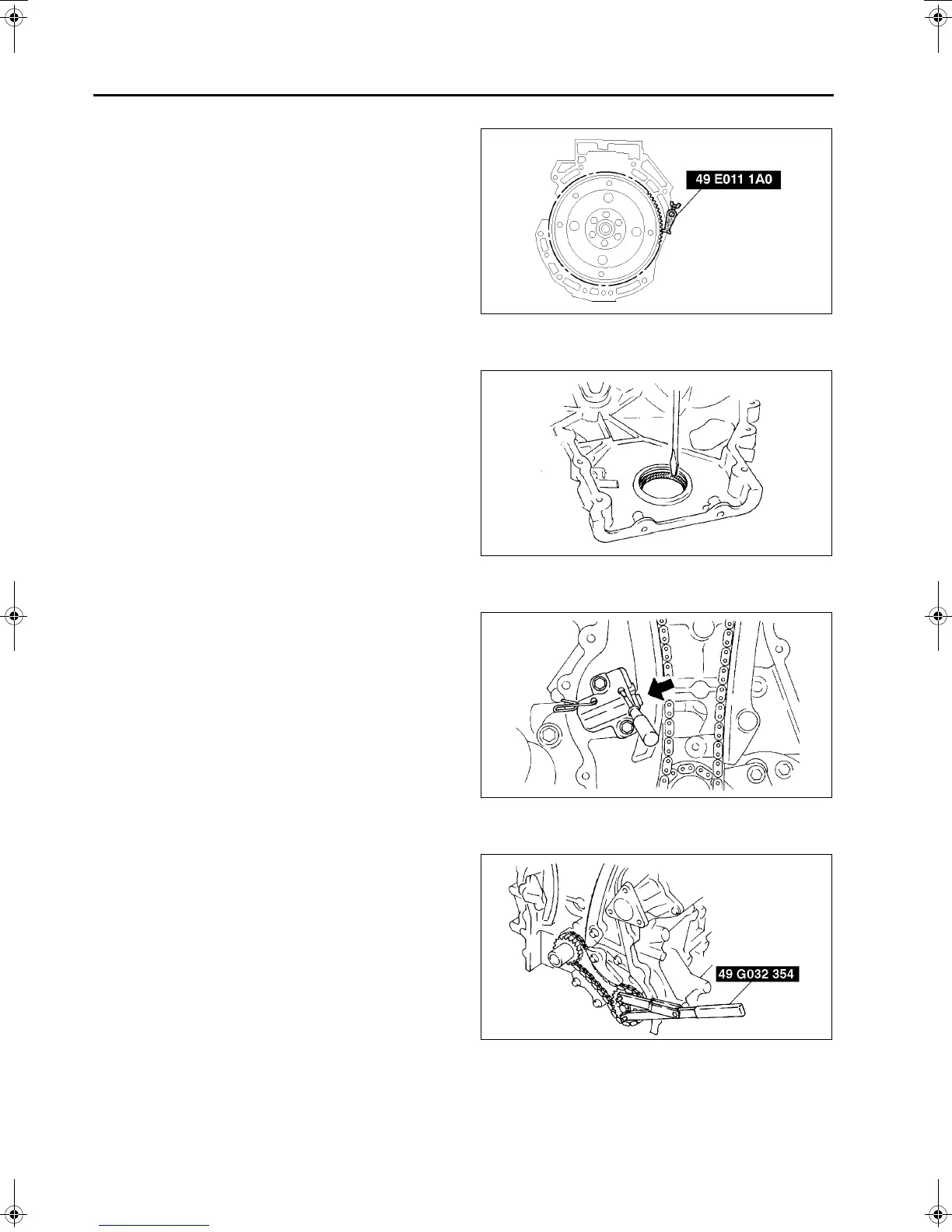

Crankshaft Pulley Lock Bolt Disassembly Note
1. Hold the crankshaft using the SST.
2. Remove the crankshaft pulley lock bolt.
Front Oil Seal Disassembly Note
1. Remove the oil seal using a screwdriver.
Chain Tensioner Disassembly Note
1. Hold the chain tensioner ratchet lock mechanism
away from the ratchet stem with a thin
screwdriver.
2. Slowly press the tensioner piston.
3. Hold the chain tensioner piston with a
1.5 mm
{0.06 in}
wire or paper clip.
Oil Pump Sprocket Disassembly Note
1. Hold the oil pump sprocket using the
SST
.
