ENGINE
B–17
B

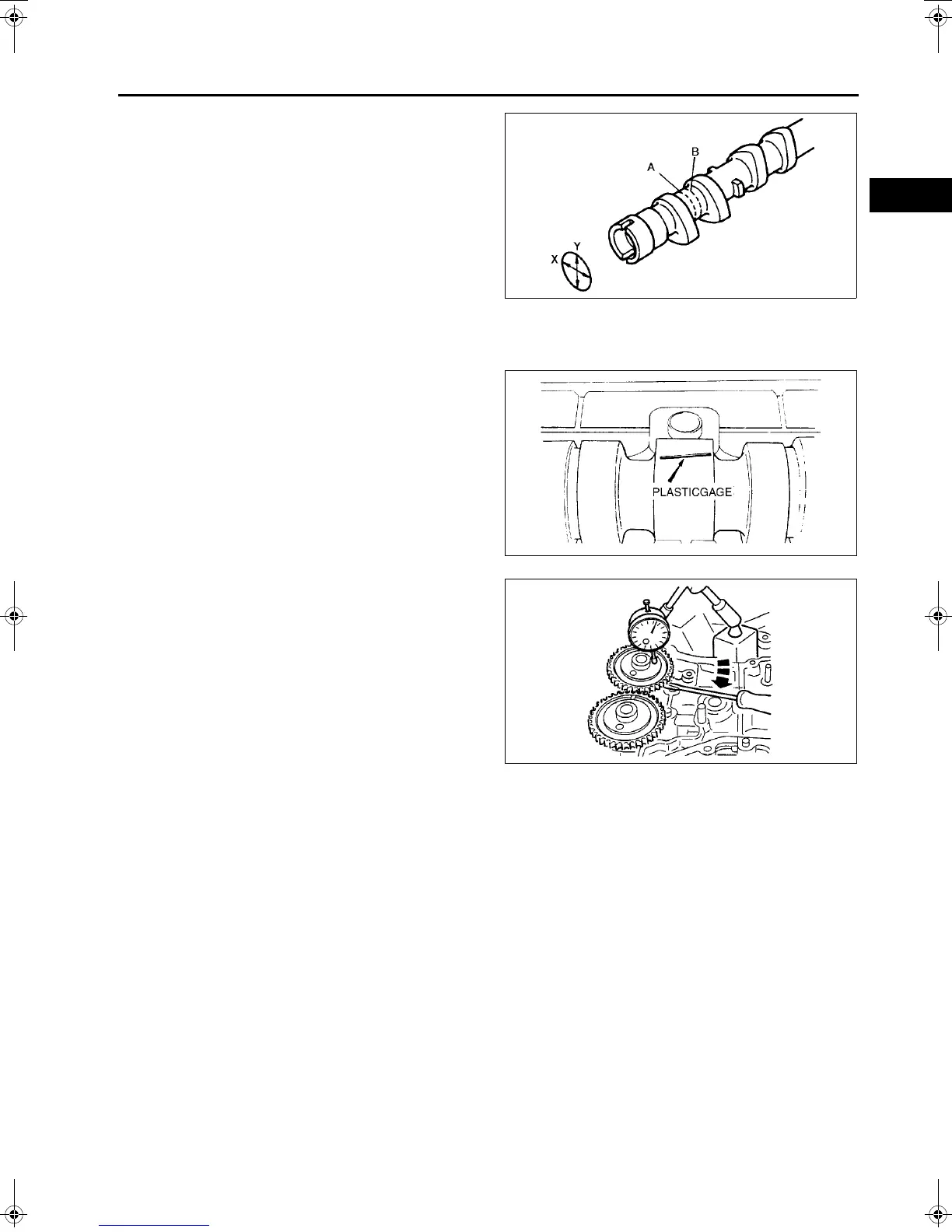

4. Measure the journal diameters in X and Y
directions at the two points (A and B) as indicated
in the figure.
• If not as specified, replace the camshaft.
Standard diameter:
24.96—24.98 mm {0.9827—0.9834 in}
Minimum diameter:
24.95 mm {0.982 in}
5. Remove the tappet.
6. Position plasticgage atop the journals in the axial
direction.
7. IInstall the camshaft cap. (See B–40 Camshaft Assembly Note.)
8. Remove the camshaft cap. (See B–6 Camshaft Cap Disassembly Note.)
9. Measure the oil clearance.
• If not as specified, replace the cylinder head.
Standard clearance:
0.04—0.08 mm {0.002—0.003 in}
Maximum clearance:
0.09 mm {0.0035 in}
10. Install the camshaft cap. (See B–40 Camshaft
Assembly Note)
11. Measure the camshaft end play.
• If not as specified, replace the cylinder head
or camshaft.
Standard end play:
0.09—0.24 mm {0.0035—0.0094 in}
Maximum end play:
0.25 mm {0.0099 in}
12. Remove the camshaft cap. (See B–6 Camshaft
Cap Disassembly Note.)
End Of Sie
AME2224E344
AME2224E307
AME2224E025
