6 – 50
Maintenance and Care
Owner Maintenance

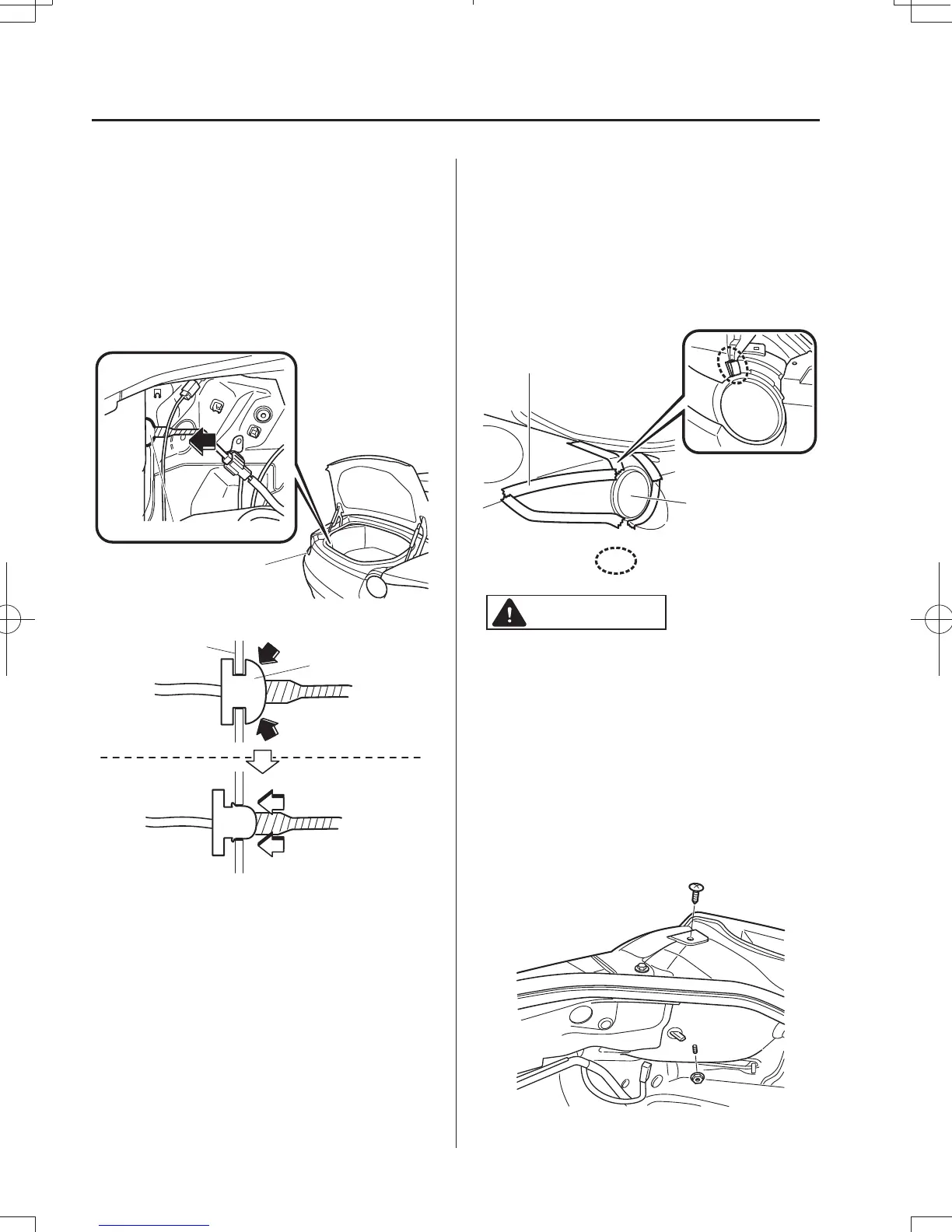

5. To provide a hole for inserting a ¿ nger
to remove the rear combination lamp
unit later in the procedure, pinch the
top and bottom of the grommet shown
in the ¿ gure and press it out of the hole
in the direction of the rear combination
lamp unit.
Grommet
Rear combination lamp
unit
Grommet
Body
6. Apply protective tape as shown in the
¿ gure. Otherwise, the rear combination
lamp unit will contact the body and
may scratch or damage it.
Always apply three layers of protective
tape to the area indicated in the ¿ gure.
Protective tape
Rear combination
lamp unit
Area specifically in need
of protection
CAUTION
¾
Do not use tape with strong adhesive
strength. Otherwise, the vehicle paint
may peel o .
¾
Always apply three layers of protective
tape to the area indicated in the  gure.
Otherwise, the body may become
scratched or damaged when pulling out
the rear combination lamp unit.
7. Remove the screw and nut.
