If Trouble Arises
When the Roof Cannot be Closed

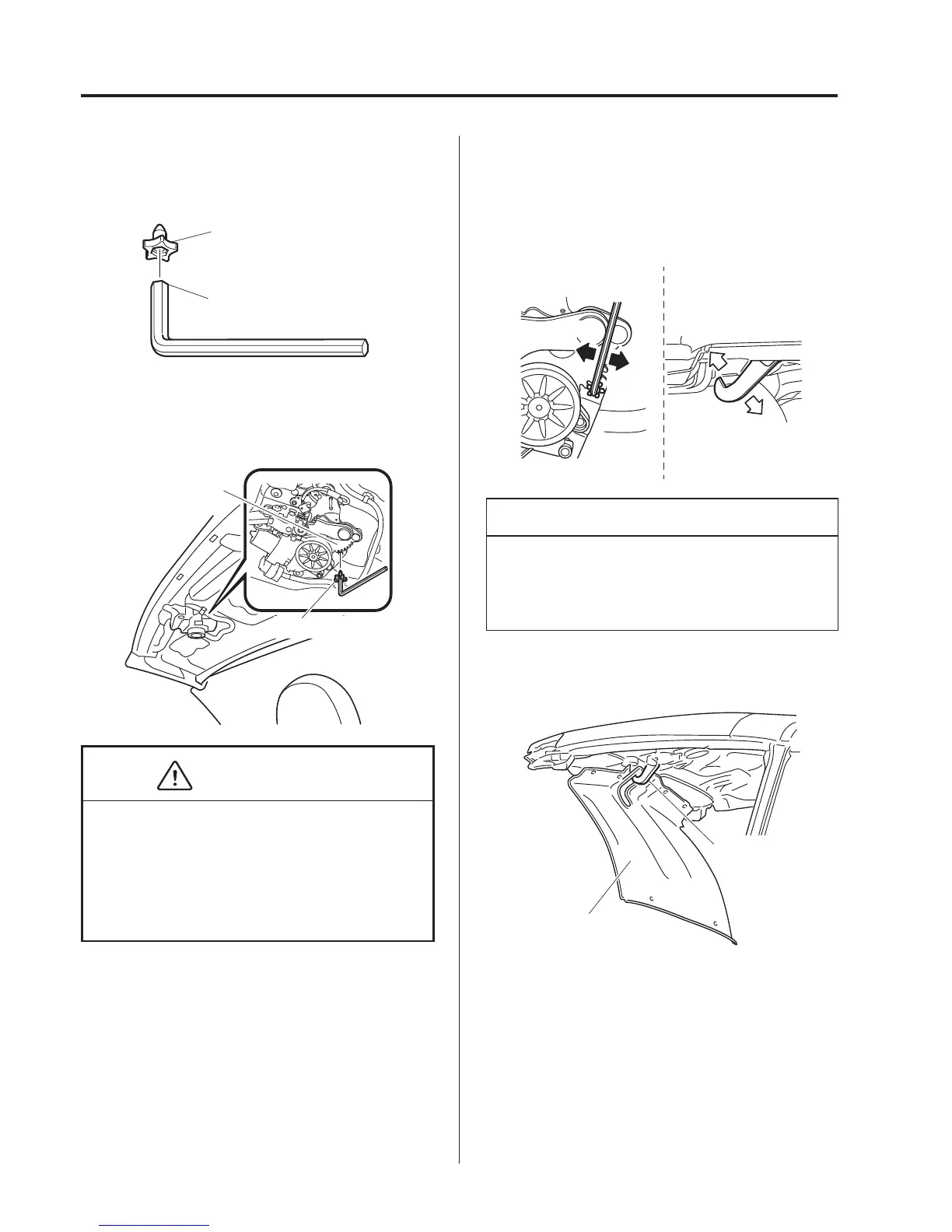

7. Insert the short end of the hexagonal
wrench (Small) into the gear (tool kit)
and assemble.
L-shaped hexagonal
wrench (Small)
Gear (tool kit)
8. Insert the point of the gear (tool kit)
into the hole beside the top lock
motor gear with the hexagonal wrench
inserted into the gear tool.
Top lock motor
gear
Gear (tool kit)
CAUTION
Insert the gear (tool kit) securely until
it engages with the top lock motor gear.
If the gear (tool kit) is not inserted
securely, it may come off and be
damaged.
9. Rotate the hexagonal wrench and move
the hook in the lock direction so that
there is enough space for the opening
of the headliner to be attached to the
hook.
Unlock
Unlock
Lock
Lock
NOTE
Turning the gear (tool kit) requires some
effort due to motor resistance. Slowly
operate the hexagonal wrench.
10. Insert the hook into the opening of the
headliner
Hook
Headliner
To Next Page
