If Trouble Arises
When the Roof Cannot be Closed

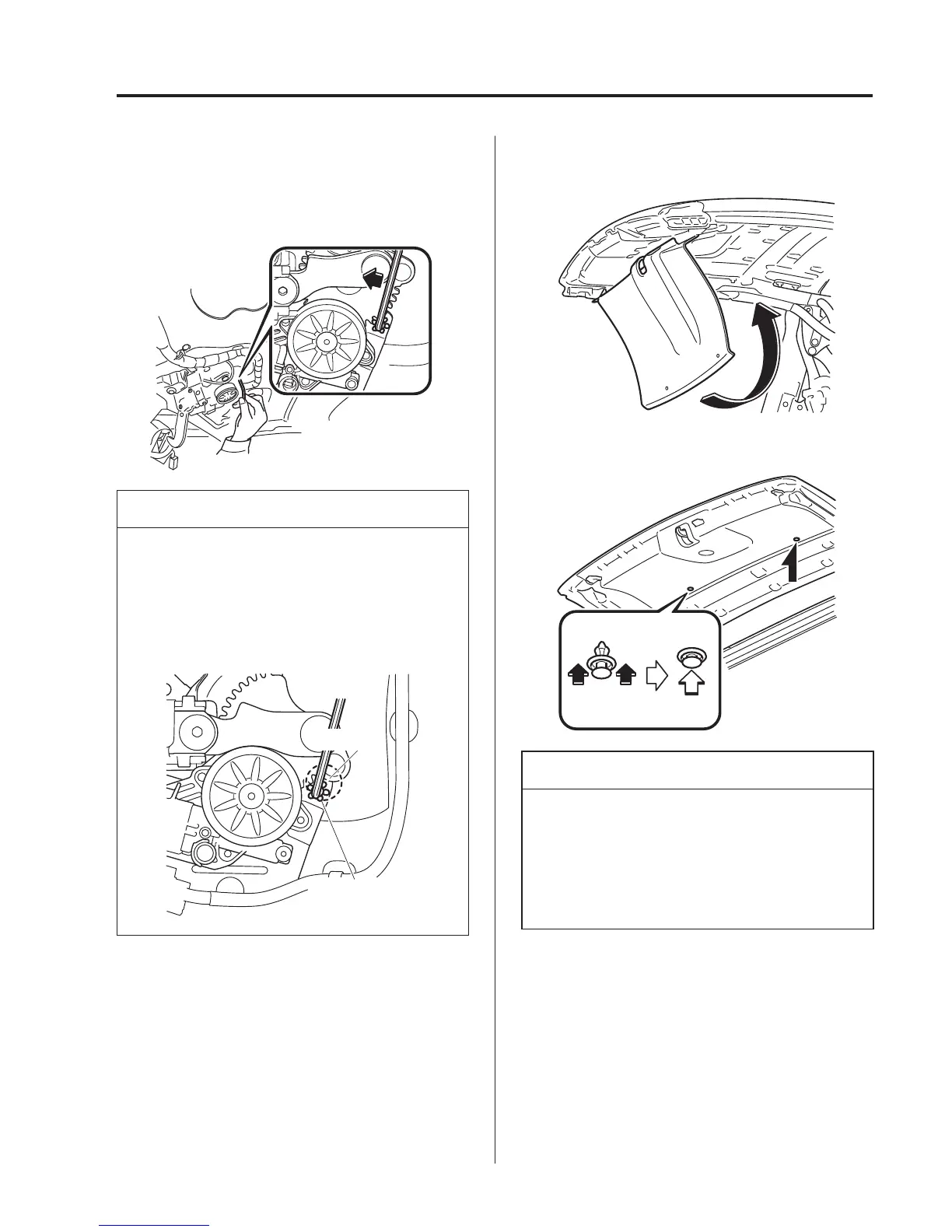

11. Turn the hexagonal wrench (Small)
and gear (tool kit) anticlockwise and
engage the hook with the vehicle body
side.
NOTE
The top lock lever completely engages
with the vehicle body (locked condition)
at the position where the teeth of the
gear (tool kit) contact the bracket.
Gear (tool kit)
Bracket
12. Lift the rear end of the headliner with it
hinged on the opening of the headliner.
13. Install the headliner to the front roof
using the fasteners at two locations.
NOTE
The fasteners in the ¿ ve locations at the
front of the headliner are not fastened.
Do not lose the fasteners because they
are needed for the required servicing at
the Authorised Mazda Repairer.
