MB Connect Line mbNET Series Quick Start Up Guide

- 25 -

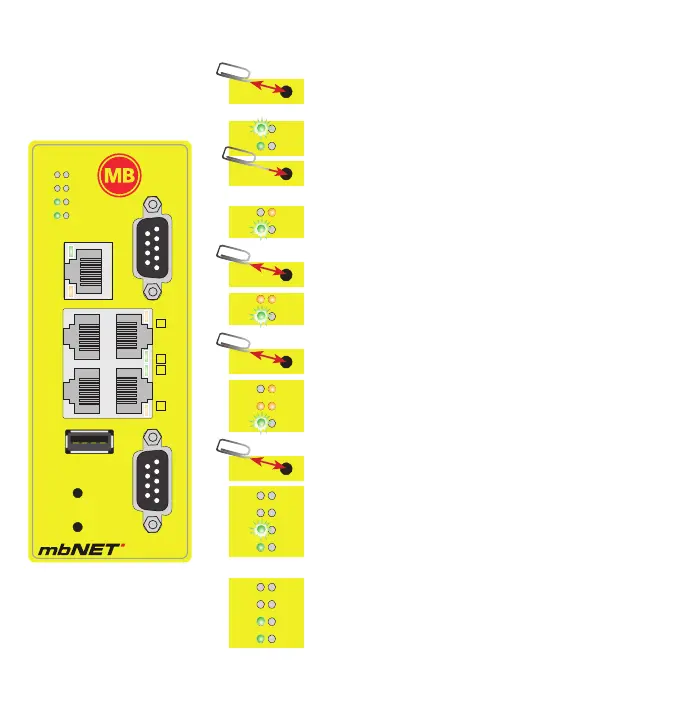

PressandreleasetheResetbuttonandwait
(approx.30seconds)untilLEDRdyashes�
ThenpresstheDial Outbuttonimmediately
andholditpresseduntilLEDFc4 lights �
PresstheDial Out button again
=>LEDFc3 lights up �
PresstheDial Out button again
=>LEDFc2 lights up �
PressonelasttimetheDial Out button
=>LEDFc2,Fc3andFc4 are o󰀨 -
LEDRdyashes �
WhenboththePwrLEDandtheRdyLEDlight
up,thefactorysettingsareloaded.
ThembNETcannowbeconguredagain.
