WIRING LAYOUT
COMPLETE WIRING LAYOUT

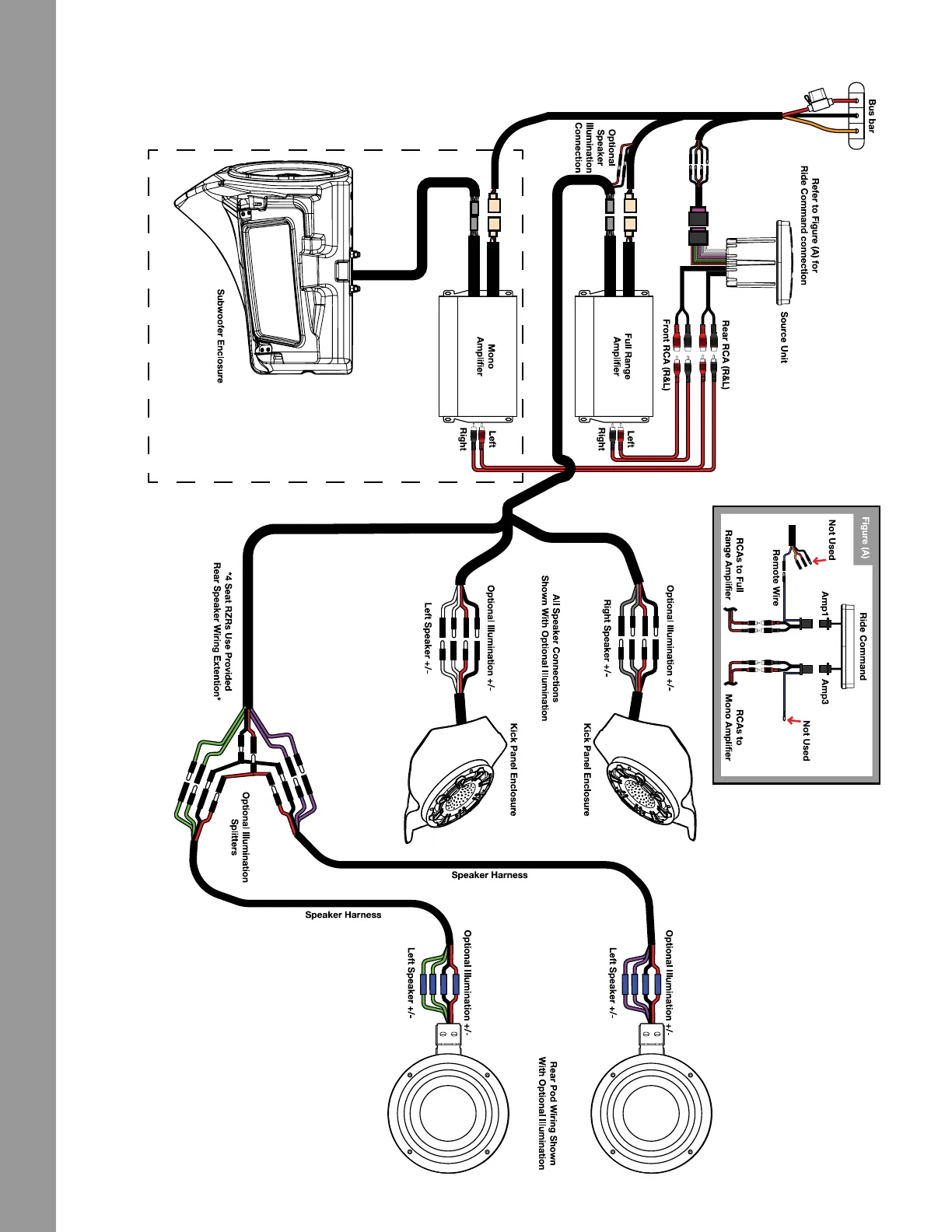

This is a complete wiring harness layout diagram of a RZR
Stage 5 system. Your subwoofer is only one part of the
whole audio system package possible.
Subwoofer and Mono Amplier
Kit (part#MBQR-SUB-2) Shown
To view all the RZR-Tuned
Audio System Options, visit
MBQuart.com
