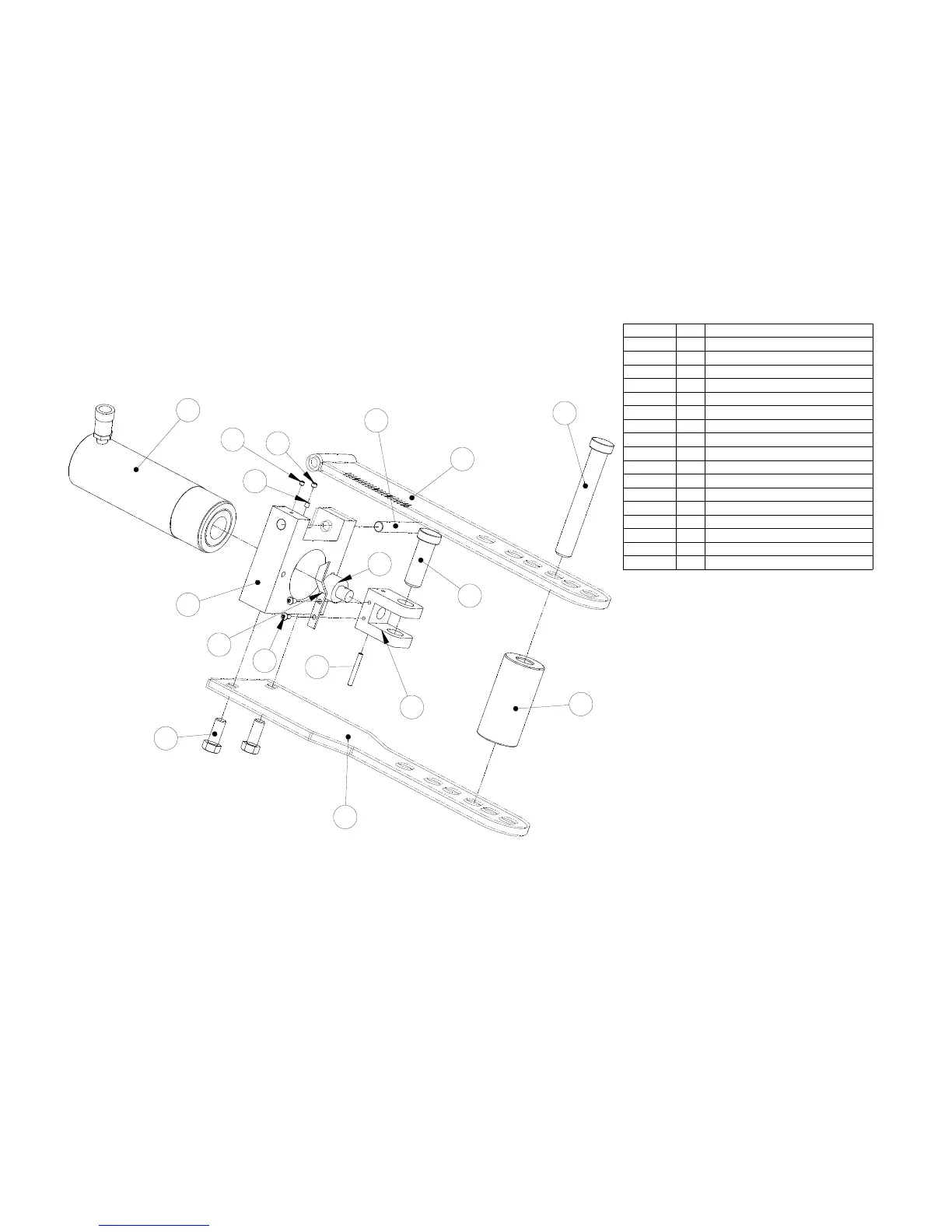

MB 900 - Component Identification; Parts Diagram and List

-12-
ITEM NO.
QTY.
PART NO.
1
1
900-003 Cylinder Mount Block
2
1
900-002 Lower Frame
3
1
900-005 Upper Frame
4
1
900-004 Shoe Clevis
5
1
900-007 Follow Bar Roller
6
1
900-018 Scale Pointer
7
1
900-502 Hydraulic Cylinder
8
1
900-008-C Hinge Pin
9
1
900-008-
A Roller Pin
10
1
900-008-B Clevis Pin
11
1
900-006 Clevis Adapter
12
2
05/8-11x1-1/2 Hex Head
13
1
Delrin
14
1
5/16-18x1/4 Set Screw
15
2
1/4-20x1/2 Button Head
16
1
1/4-20x1/4 Set Screw
17
1
Roll Pin
