MBM FGMD107SC - FGMD107;FGMD107 SC Installation Diagrams

- 6 -

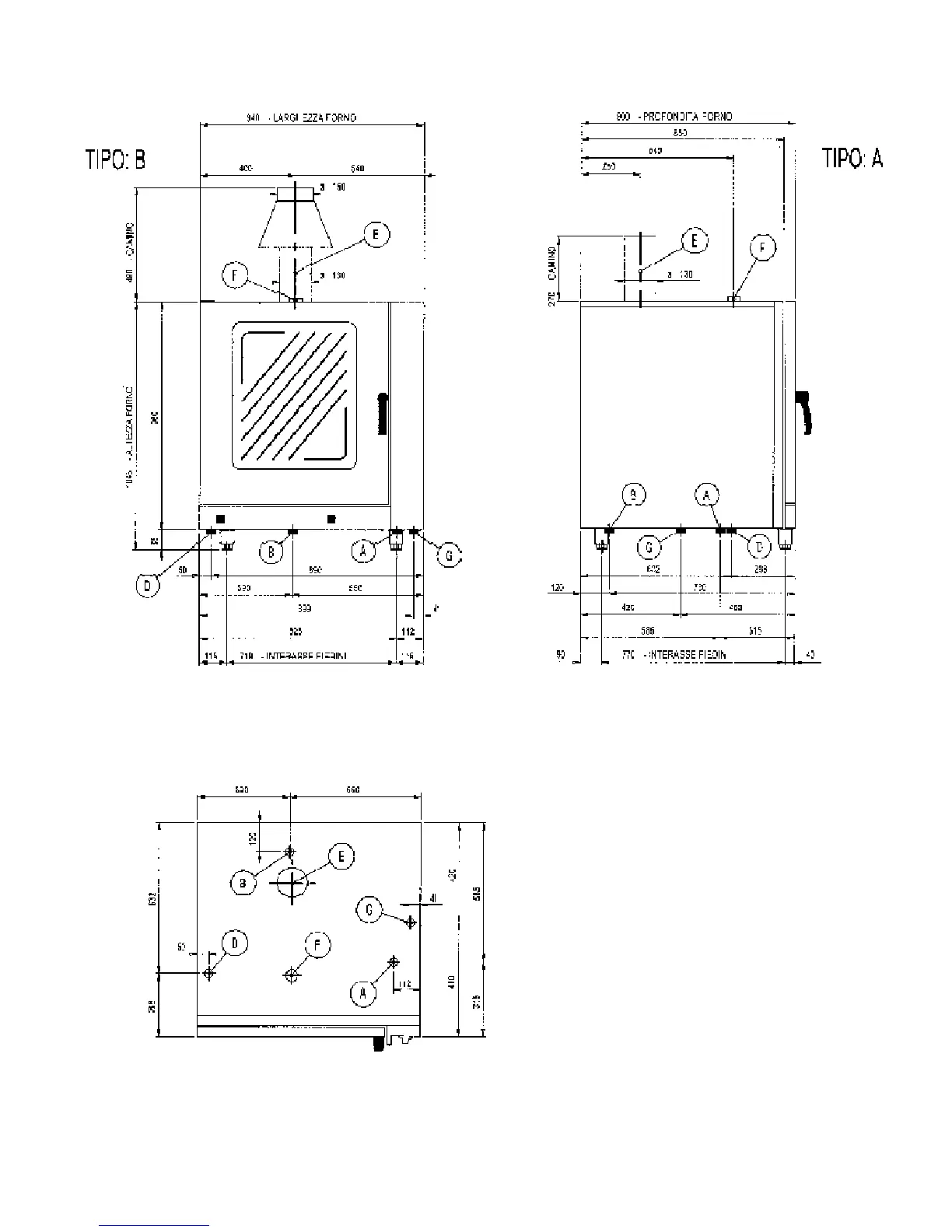

DIRECT “COMBINED” GAS OVEN FGMD107/FGMD107SC
B) Softened water inlet G 3/4”
D) Water outlet Ø 40 mm
F) Vent pipe Ø 50 mm
G) Power supply cable input
A) Gas connection G 3/4”
E) Chamber flue Ø 130 mm
