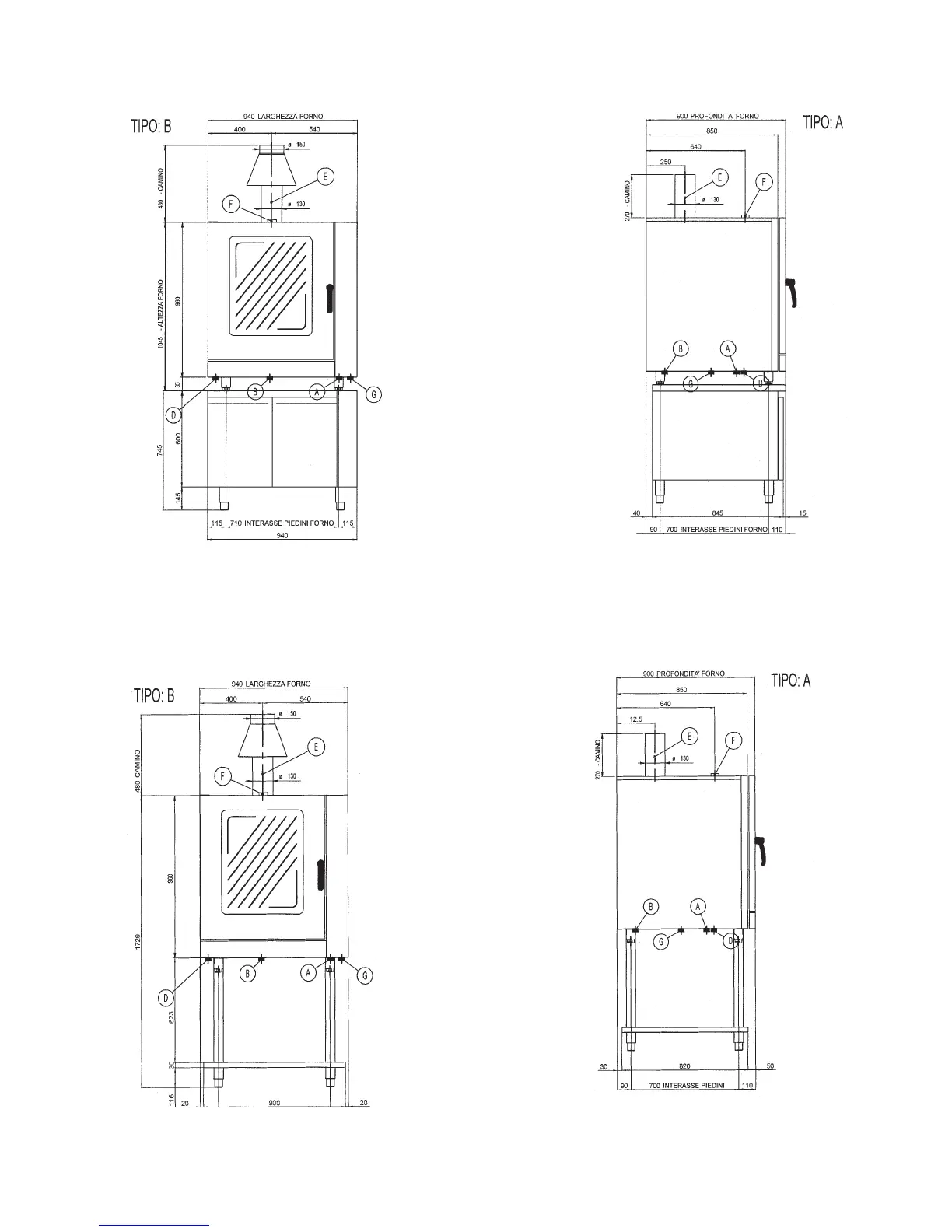

3.3 DIRECT “COMBINED” GAS OVEN FGMD107/FGMD107SC
WITH CABINET SFA - SFRU
DIRECT “COMBINED” GAS OVEN FGMD107/FGMD107SC WITH STAND SFCV
A) Gas connection G 3/4”
B) Softened water inlet G 3/4”
D) Water outlet Ø 40 mm
E) Chamber flue Ø 130 mm
F) Vent pipe Ø 50 mm
G) Power supply cable entry
A) Gas connection G 3/4”
B) Softened water inlet G 3/4”
D) Water outlet Ø 40 mm
E) Chamber flue Ø 130 mm
F) Vent pipe Ø 50 mm
G) Power supply cable entry
