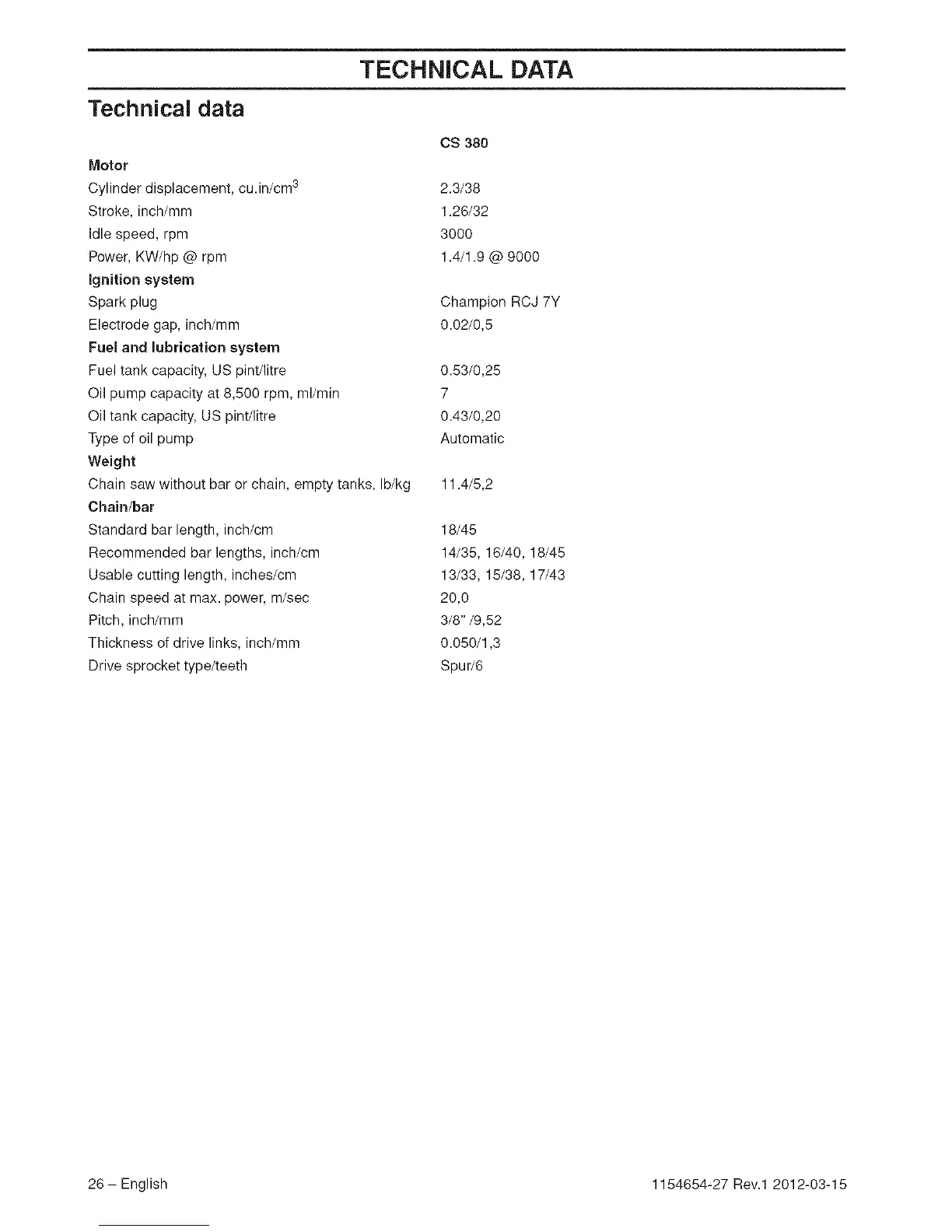

TECHNICAL DATA
Technical data
CS 380
Motor
Cylinder displacement, cu.in/cm 3 2.3/38
Stroke, inch/mm 1.28/32
Idle speed, rpm 3000
Power, KW/hp @ rpm 1.4/1.9 @ 9000
Ignition system
Spark plug Champion RCJ 7Y
Electrode gap, inch/mm 0.02/0,5
Fuel and lubrication system
Fuel tank capacity, US pint/litre 0.53/0,25
Oil pump capacity at 8,500 rpm, ml/min 7
Oil tank capacity, US pint/litre 0.43/0,20
Type of oil pump Automatic
Weight
Chain saw without bar or chain, empty tanks, Ib/kg 11.4/5,2
Chain/bar
Standard bar length, inch/cm 18/45
Recommended bar lengths, inch/cm 14/35, 18/40, 18/45
Usable cutting length, inches/cm 13/33, 15/38, 17/43
Chain speed at max. power, m/sec 20,0
Pitch, inch/ram 3/8"/9,52
Thickness of drive links, inch/mm 0.050/1,3
Drive sprocket type/teeth Spur/6
26 - English 1154654-27 Rev.1 2012-03-15
