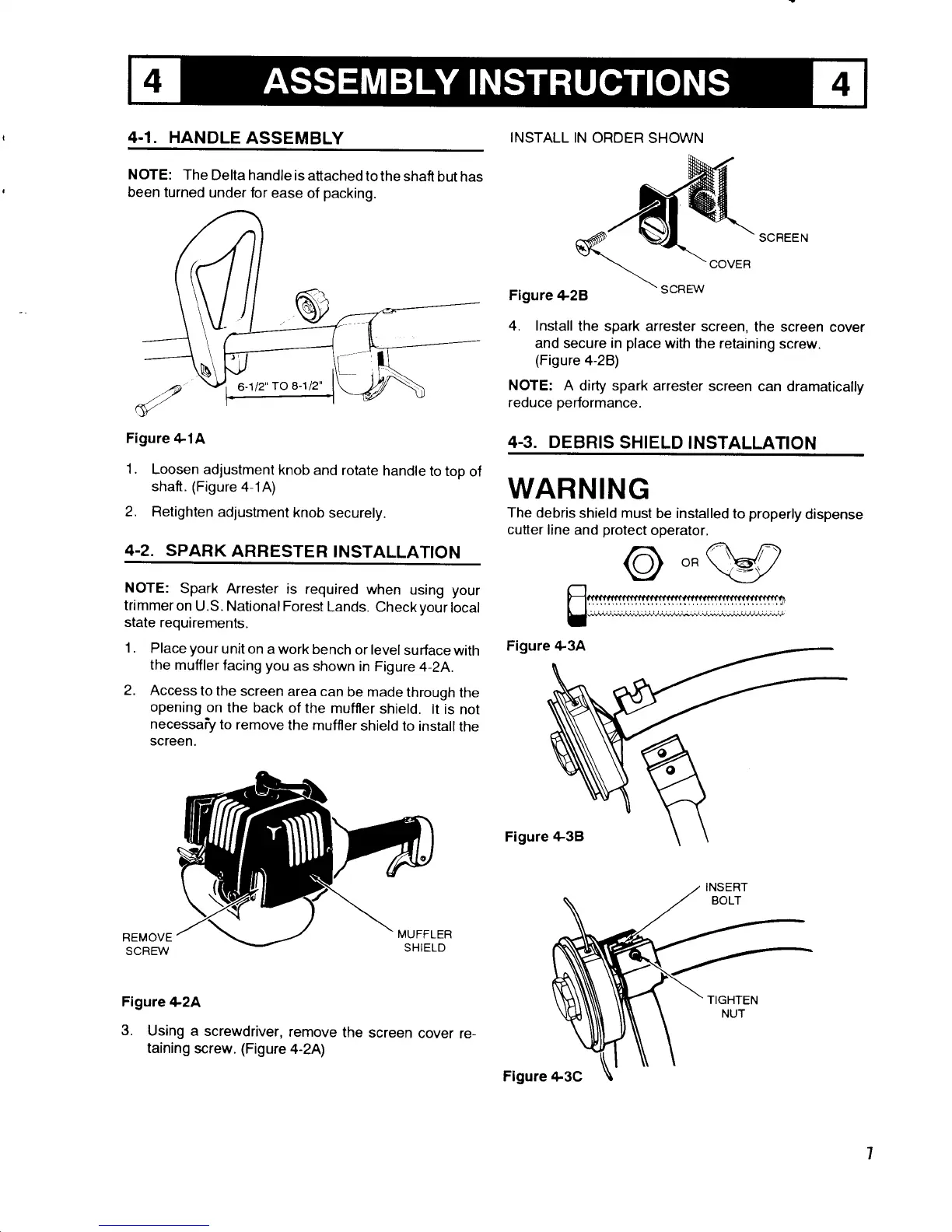

McCulloch EAGER BEAVER 282 User Manual

4.1. HANDLE
ASSEMBLY
NOTE:
The
Delta handle
is attached
to the shaft
but has
been turned
under
for ease
of
packing.
Figure
z1-1A
1 .
Loosen adjustment
knob
and rotate
handle
to top
of
shaft.
(Figure
4-1A)
2. Retighten
adjustment
knob
securely.
4.2.
SPARK
ARRESTER
INSTALLATION
NOTE:
Spark
Arrester
is required
when
using your
trimmeron
U.S. National
Forest
Lands. Checkvourlocal
state
requirements.
1 .
Place
your
unit on
a work bench
or level
surface
with
the muffler
facing you
as shown
in Figure
4-2A.
2.
Access
to the
screen
area can
be made
through
the
opening
on
the back
of
the muffler
shield.
lt is
not
necessafo
to
remove
the
muffler
shield to
install
the
screen.
REMOVE
SCREW
Figure
4'2A
3.
Using
a screwdriver,
remove
the
screen
cover
taining
screw.
(Figure
4-2A)
INSTALL
IN ORDER
SHOWN
>
:-@SCREEN
\K-
\
-COVER
\
Figure
rl-2B
-
scREw
4. Install
the spark arrester
screen,
the screen
cover
and scure in
place
with the retaining
screw.
(Figure
4-28)
NOTE:
A dirty spark
arrester screen
can dramatically
reduce
performance.
4.3. DEBRIS
SHIELD
INSTALLATION
WARNING
The debris
shield must
be installed
to
properly
dispense
cutter
line and
protect
operator.
@ ""Qg
Figure
zL3A
Figure
4-38
6-112"
To
8-112'
Figure
4-3C
