McCulloch M1638 - Decals

15
REPAIR PARTS
TRACTOR - - MODEL NUMBER M1638 (96011021301), PRODUCT NO. 960 11 02-13

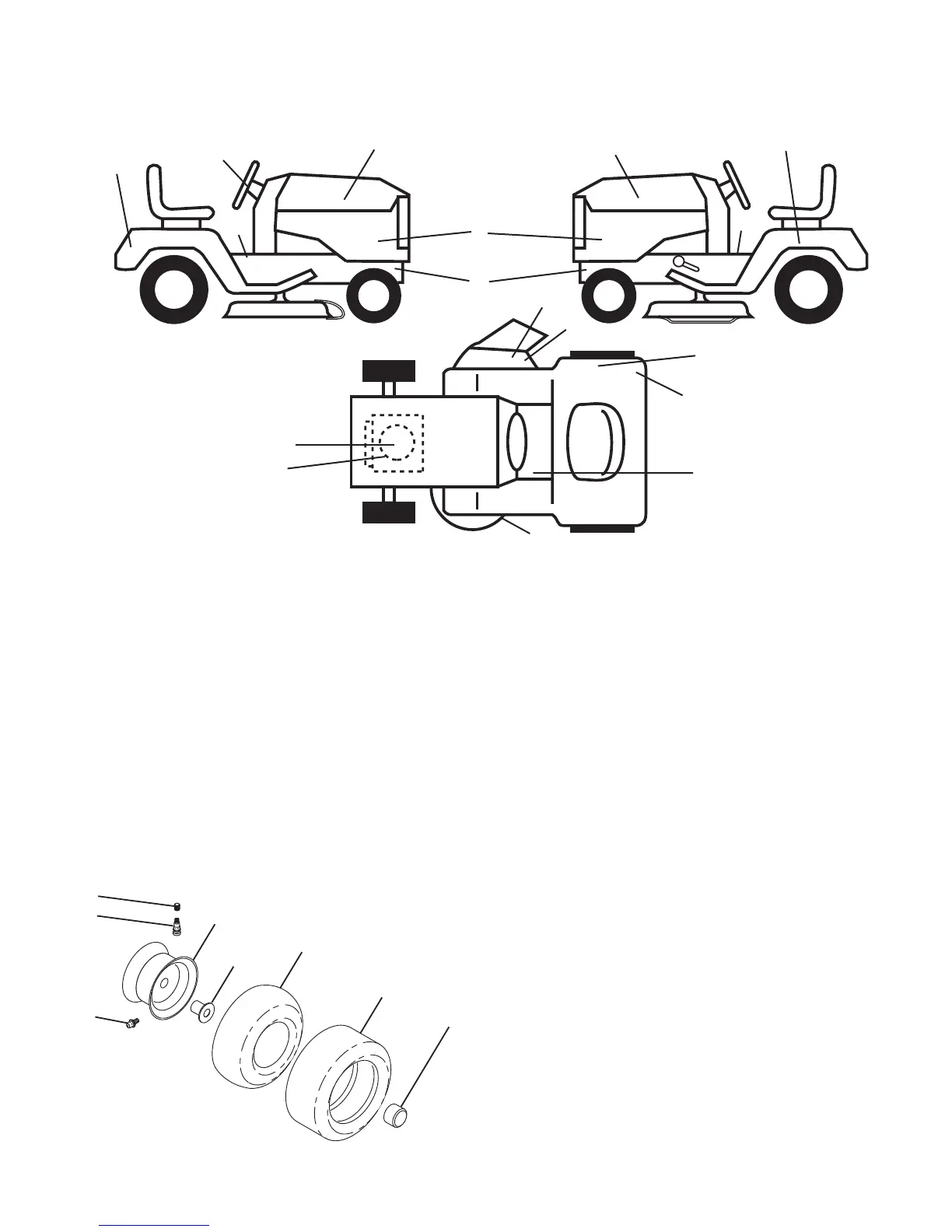

DECALS
WHEELS & TIRES
8
13
3
17
3
2
KEY PART
NO. NO. DESCRIPTION
5
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 12 41-57 Tire F Ts 15 x 6.0 - 6 Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 12 51-21 Rim Asm 6" front Service
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 12 51-22 Rim Asm 8" rear Service
9 532 12 39-69 Tire R Ts 18 x 8.5-8 C. Service
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 17 50-39 Cap Axle Blk 1 50 x 1 00
- - 532 14 43-34 Tire, Sealant (10oz. tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6
2
1
5,8
4,10
3,9
11
7
wheel_1
15
6
4
1
1 532 40 36-13 Decal, Side Panel
2 532 14 50-05 Decal, Bat Dan/Poi P/L Symbols
3 532 40 20-32 Decal, Hood
4 532 19 43-02 Decal, Schematic
5 532 40 88-18 Decal, Engine
6 532 14 08-37 Decal, Clutch Brake
8 532 40 36-11 Decal, Fender
9 532 19 68-41 Decal, Warning Engine Symbols
10 532 12 44-33 Decal, DBA
11 532 15 97-36 Decal, Hot Muffler
12 532 15 97-37 Decal, Brake/Clutch
13 532 40 18-60 Decal, Strg Wheel Cap
14 532 18 21-66 Decal, Cutfinger
15 532 40 03-89 Decal, Warning Symbols
16 532 19 63-57 Deflector Warning
17 532 16 88-69 Decal, Tick Mark
- - 532 13 83-11 Decal, Lift Handle (Lift Handle)
- - 532 18 10-91 Pad Footrest LH
- - 532 18 10-90 Pad Footrest RH
- - 532 16 25-98 Decal, Load Limit
- - 532 40 37-20 Manual Operator's (English)
- - 532 40 78-75 Manual Parts
KEY PART
NO. NO. DESCRIPTION
11
16
14
9
10
12
