16
TRACTOR - - MODEL NUMBER MC13538LT (96012010300), PRODUCT NO. 960 12 01-03

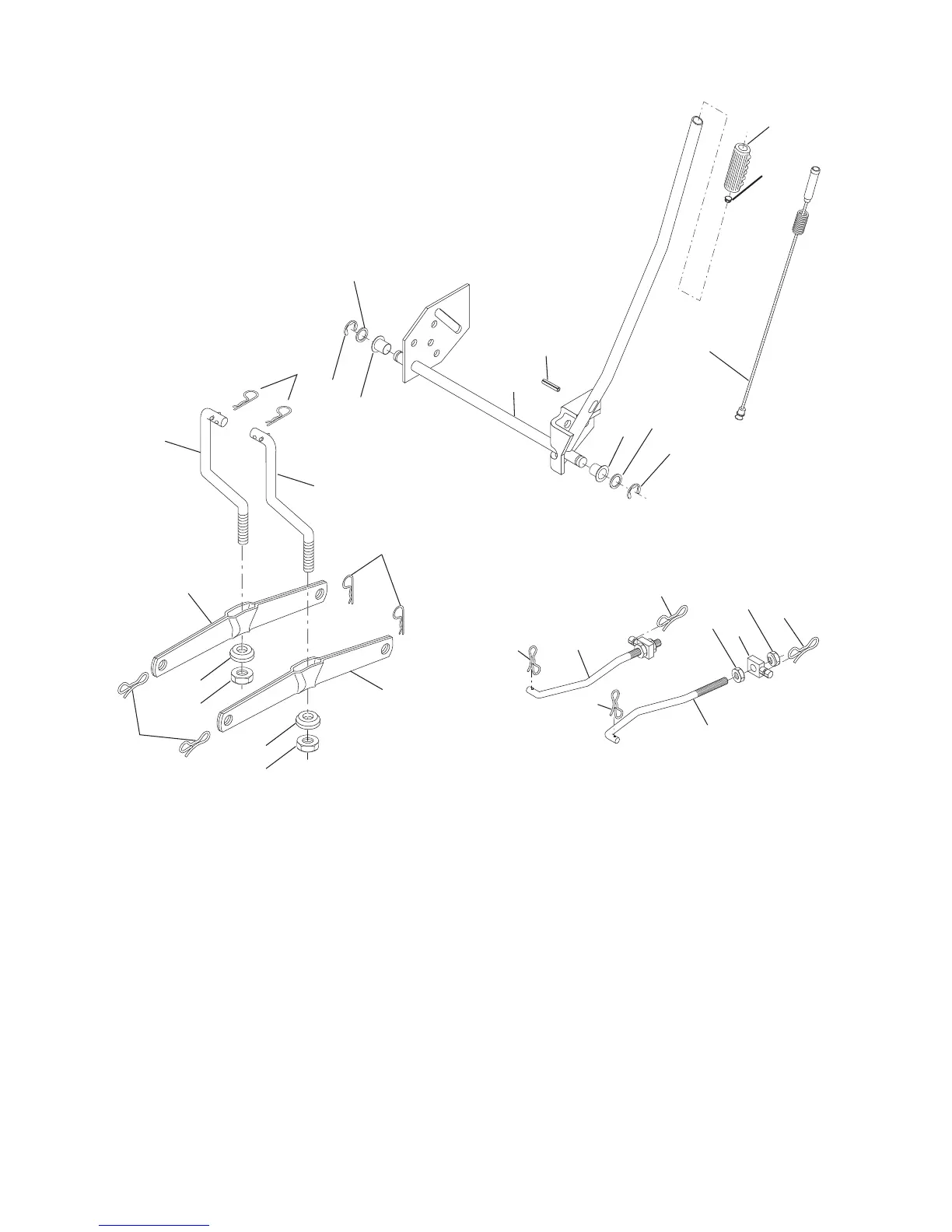

MOWER LIFT
1 532 40 49-81 Plunger Asm. Lift Lever
2 532 15 94-71 Shaft Asm Lift RH
3 532 10 57-67 Pin Groove
4 812 00 00-02 E Ring #5133-62
5 819 21 16-21 Washer 21/32 x 1 x 21 Ga.
6 532 12 01-83 Bearing Nylon Blk 629 Id
7 532 12 56-31 Grip Handle
8 532 12 45-26 Button Plunger Black
11 532 13 98-65 Link Lift LH Fixed Length
12 532 13 98-66 Link Lift RH Fixed Length
13 532 12 46-70 Retainer Spring
KEY PART
NO. NO. DESCRIPTION
15
20
16
17
18
20
20
15
20
4
5
6
2
3
1
6
5
4
7
12
11
31
32
31
32
19
19
13
55
13
lift-rh.1piece_27
8
15 532 17 32-88 Link Front
16 873 35 08-00 Nut Jam Hex 1/2-13 unc
17 532 17 56-89 Trunnion
18 873 80 08-00 Nut Lock w/Wsh 1/2-13 unc
19 532 13 98-68 Arm Suspension Rear
20 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
31 532 16 98-65 Bearing Pvt Lift
32 873 54 06-00 Nut Crownlock 3/8-24
55 532 19 42 08 Pin Cotter 5/16 Bowtie Lock
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm.
KEY PART
NO. NO. DESCRIPTION
