18
TRACTOR - - MODEL NUMBER MC13538LT (96012010300), PRODUCT NO. 960 12 01-03

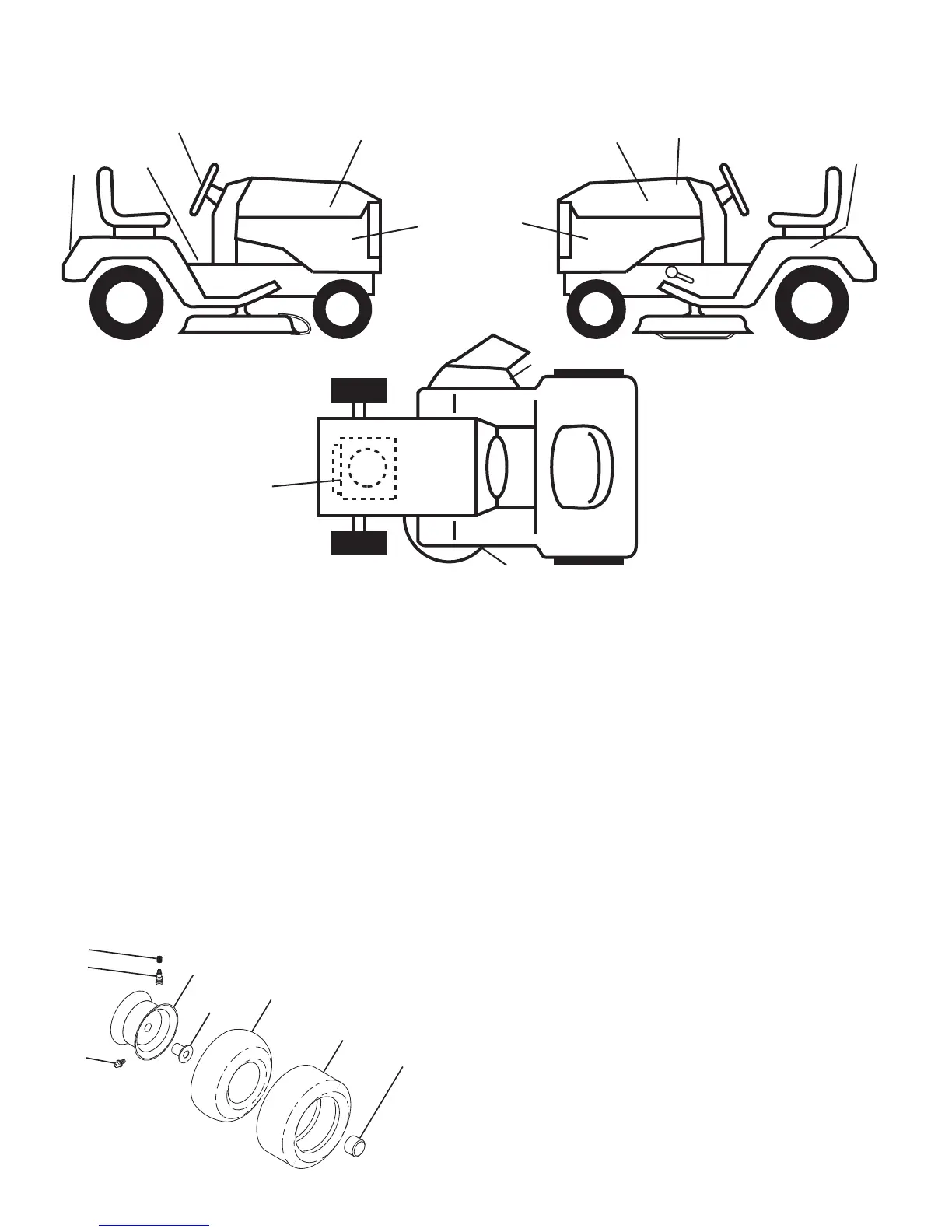

DECALS
5
15
KEY PART
NO. NO. DESCRIPTION
1 532 40 51-21 Decal Replacement
5 532 40 88-10 Decal, Eng. HP
7 532 41 16-58 Decal, Warning
8 532 19 43-02 Decal, V-Belt Sch.
11 532 40 82-52 Decal, Hood RH
12 532 43 26-58 Decal, Fender
13 532 42 42-36 Decal, Wheel Strg.
14 532 17 05-63 Decal, Defl. Warning
15 532 14 50-05 Decal, Caution, Battery
16 532 40 82-53 Decal, Hood LH
17 532 43 26-57 Decal, Side Panel
- - 532 13 83-11 Decal, Handle Lft Height Adj.
- - 532 18 10-90 Pad Footrest RH
- - 532 18 10-91 Pad Footrest LH
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap, Tire Valve
2 532 06 51-39 Stem, Valve
3 532 10 62-22 Tire, Front
4 532 05 99-04 Tube, Front (Service item only)
5 532 12 51-21 Rim Assembly, 6" Front
6 532 12 49-57 Fitting, Grease (Front wheel only)
7 532 12 49-59 Bearing, Flange (Front wheel only)
8 532 12 51-22 Rim Assembly, 8" Rear
9 532 42 05-31 Tire, Rear
10 532 12 49-26 Tube, Rear (Service item only)
11 532 19 32-68 Cap, Hub Axle
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm.
6
2
1
5,8
4,10
3,9
11
7
wheel_1
KEY PART
NO. NO. DESCRIPTION
WHEELS & TIRES
7
8
14
11
13
1
12
16
17
17
