SAFETY FEATURES
Numbers preceding the descriptions correspond with numbers on preceding page to help you locate the safety feature.
3 DEBRIS SHIELD must be installed to prevent debris from being thrown at the operator and prevent the trimmer
line from extending longer than necessary.
14 MUFFLER SHIELD helps prevent hands, body and/or combustible materials from making contact with a hot muffler.
1. TRIMMER HEAD
2. TRIMMER LINE
3. SHIELD
4. DRIVE SHAFT
5. “D” HANDLE
6. THROTTLE TRIGGER
7. ON/OFF SWITCH
8. THROTTLE TRIGGER
LOCKOUT
9. CHOKE LEVER
10. STARTER ROPE HOUSING
11. FUEL TANK
12. AIR FILTER COVER
13. STARTER HANDLE
14. MUFFLER SHIELD
15. PRIMER BULB
16. COUPLER
17. SPANNER
*Supplied in User Kit
NOTE: DO NOT use blades on this
model.
3
17
• “D” HANDE INSTALLATION
• ATTACHING THE SHIELD
• INSTALLING THE ATTACHMENT
NOTE: To make installing or removing the attachment
easier, place the unit on the ground or on a work bench.
1. Turn the knob (A) counter clockwise to loosen (Fig.
3A).
2. While firmly holding the attachment (B), push it
straight into the Quick-Change coupler (C) until the
release button (D) appears in the primary hole (E) of
the Quick-Change coupler. (Fig. 3B)
3. Turn the knob (A) clockwise to tighten. (Fig. 3C)
All attachments are designed to be used in the primary
hole unless otherwise indicated in the specific attach-
ments operators manual. If the incorrect hole is used, it
could result in injury, or damage to the unit.
• FUEL
Use regular grade unleaded gasoline mixed with Mcculloch
40:1 custom 2-cycle engine oil for best results. Use mixing
ratios in Feul Mixing Table.
ASSEMBLY INSTRUCTIONS
WARNING: Please assemble the unit accord-
ing to the assembly instructions. Failure to do
so may cause injury to the operator
WARNING:
The shield must be properly
installed. The shield provides partial
protection from the risk of thrown objects
to the operator and others and is equipped
with a line limiter which cuts excess line.
The line limiter (on underside of shield)
is sharp and can cut you.
WARNING:
To avoid serious personal injury,
turn unit off before removing or installing
attachment.
CAUTION:
The release button must be in the
primary hole and the knob must be tighened
securely before operating this unit.
Fig. 3A
Fig. 1 Fig. 2
Fig. 3B
Fig. 3C
FUEL AND LUBRICATION
WARNING: Never use straight gasoline in
your unit. This will cause permanent engine
damage and void the manufacturer’s warran-
ty for that product. Never use a fuel mixture
that has been stored for over 90 days.
WARNING: If 2-cycle lubricant other than
Mcculloch Custom Lubricant is to be used, it must
be a premium grade oil for 2-cycle air cooled
engines mixed at a 40:1 ratio. Do not use any
2-cycle oil product with a recommended mix-
ing ratio of 100:1. If insufficient lubrication is
the cause of engine damage, it voids the
manufacturer’s engine warranty.
GB GB
10
11
14
15
5
6
7
8
13
12
1. Remove nut from shield.
2. Insert bracket into slot on shield (Fig. 1).
3. Pivot shield until bolt passes through hole in bracket.
4. Reinstall nut and tighten securely with
wrench (provided)(Fig. 2).
3. Make a final adjustment of the handle to a
comfortable working position. Tighten the nut firmly
with wrench (provided).
D
A
E
E
D
B
C
C
B
A

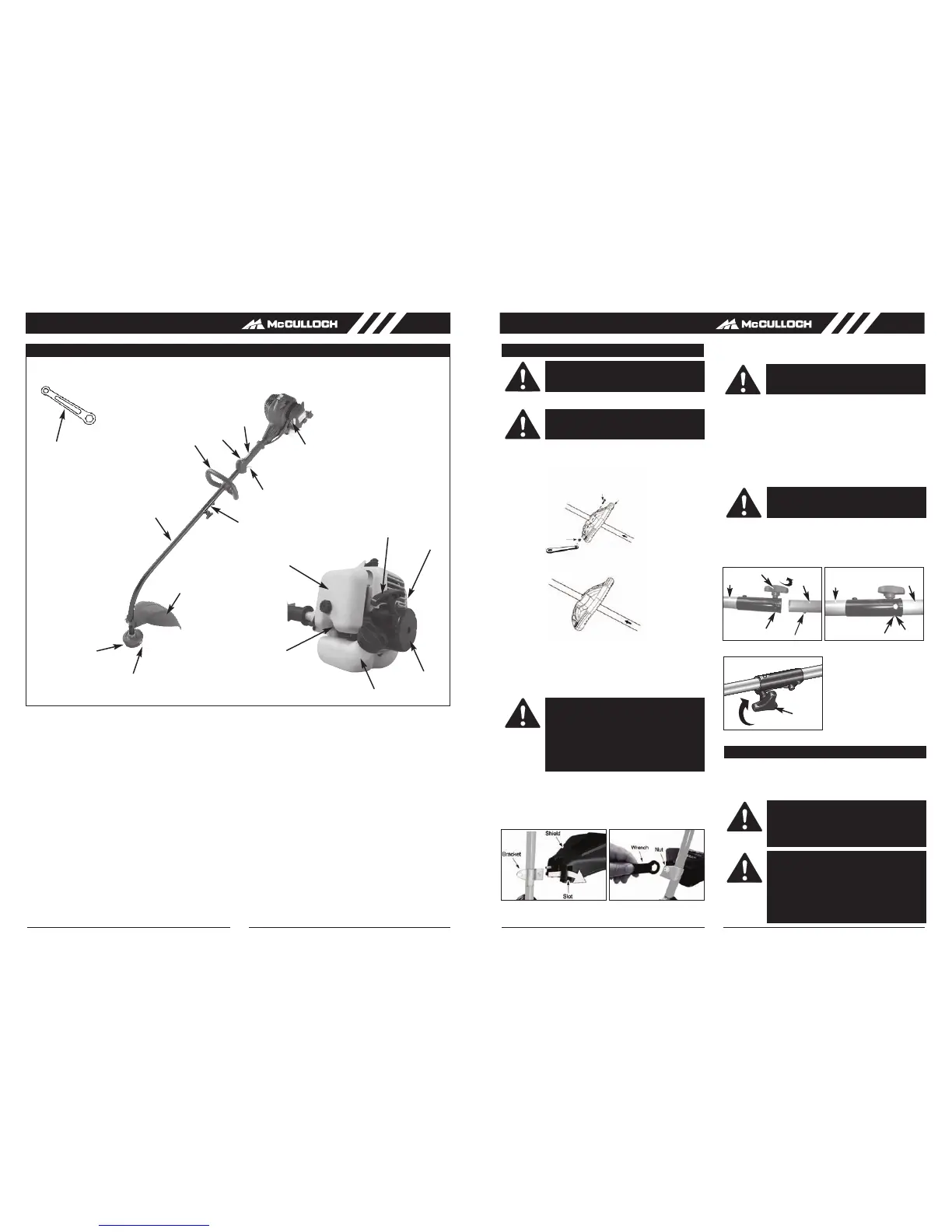

GENERAL IDENTIFICATION
WARNING: When adjusting the assist handle,
be sure it remains above the safety label.
1. Position “D” handle on the shaft. Note that the
handle must be mounted in front of direction of
arrow head on the shaft. (The distance between
both handles shall be at least 250mm.)
2. Install the bolt and nut as shown in the illustration.
Handle
Bolt
Nut
Spanner
9
16
4
3
1
2
To Next Page
