McCulloch MT725 - Page 71

E27
PARTS LIST
16
17
14
18
1
6
7
8
9
11
10
12
13
15
5
4
3
2
Item Part No. Description
1 753-04294 Throttle Housing Assembly (includes 2 & 3)
2 791-610314 Throttle Trigger Spring
3 753-04295 Throttle Trigger
4 753-04405 Throttle Cable
5 753-04344 Upper Drive Shaft Housing
6 791-180687 J-Handle Assembly
7 791-683295 Handle Bracket Assembly (includes 8-13)
8 791-181811 Screw
9 791-181812 Upper Handle Clamp
10 791-181813 Middle Handle Clamp
11 791-181814 Lower Handle Clamp
12 791-181815 Nut
13 791-145569 Anti-Rotation Screw
14 791-181616B Split Boom Coupler (includes 15-18)
15 791-182057 Screw
16 791-181617 Bolt
17 791-181618B Adjustment Knob
18 753-04386 Knob Retaining Nut
19 753-1218 Lower Drive Shaft Housing
20 791-153597 Lower Clamp Assembly
21 791-181852 Lower Flexible Drive Shaft
22 791-180531 Shield Mounting Screw
23 791-181857 Bushing Housing Assembly
24 791-145569 Anti-Rotation Screw
25 791-181659 Shield Assembly (includes 26)
26 791-181823 Blade Assembly
27 791-181457 Outer Spool Assembly (includes 28)
28 791-181458 Retainer
29 791-181561 Thrust Washer
30 791-181459 Small Spring
31 753-04257 Slider
32 791-181532 E-Clip
33 791-181531 Spring
34 791-181462 Plunger
35 791-181463 C-Clip
36 791-181464 Inner Reel
37 791-181465B Large Spring
38 791-181467 Foam Seal
39 791-181468B Bump Head Knob Assembly (includes 37 & 38)
Optional
Accessories
* 791-181460B Reel and Line Assembly
* 791-682075B Shoulder Strap Assembly
* Items Not Shown
22
20
21
25
30
28
31
32
27
29
23
24
26
36
34
33
38
35
37
39
19
1

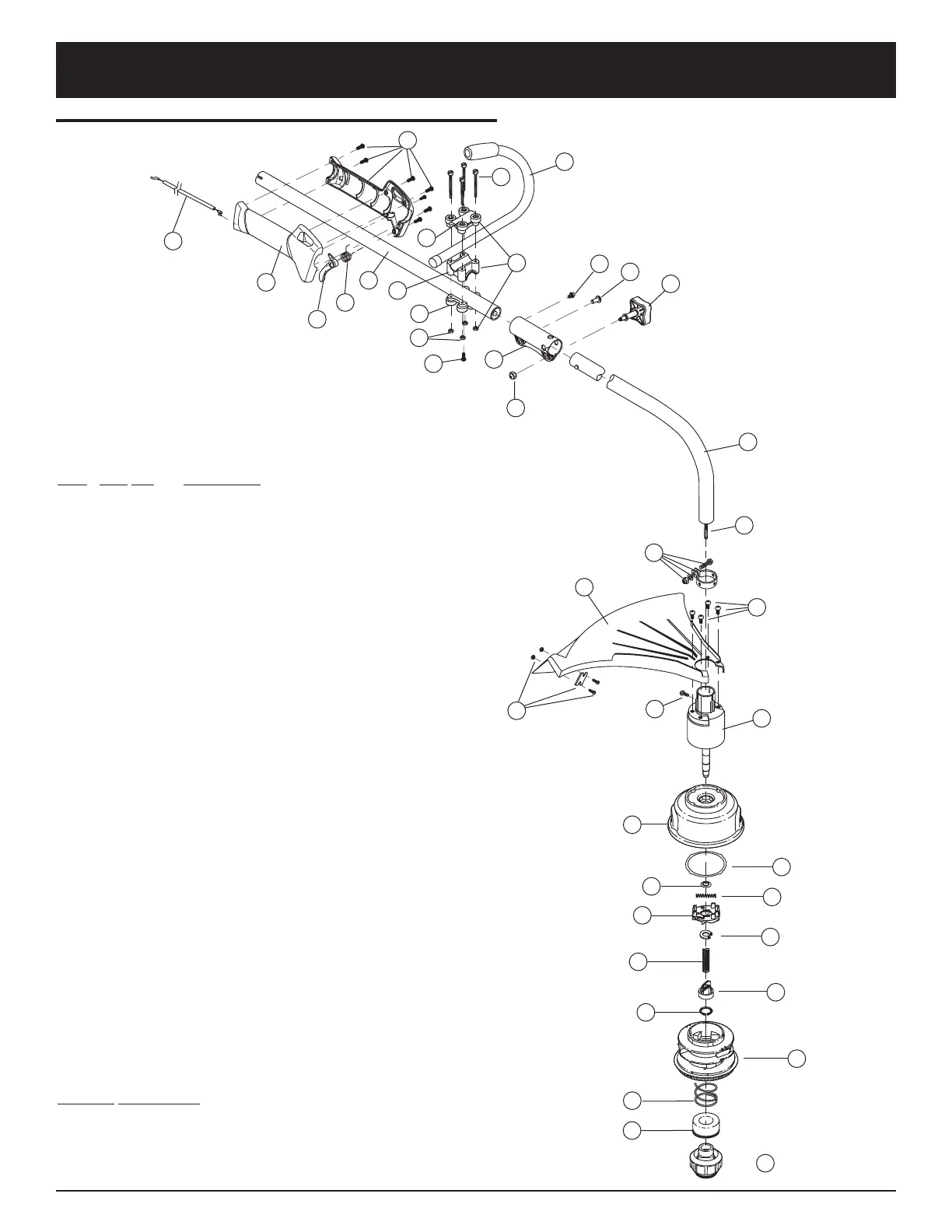

BOOM & TRIMMER PARTS - MT725
2-CYCLE GAS TRIMMER
