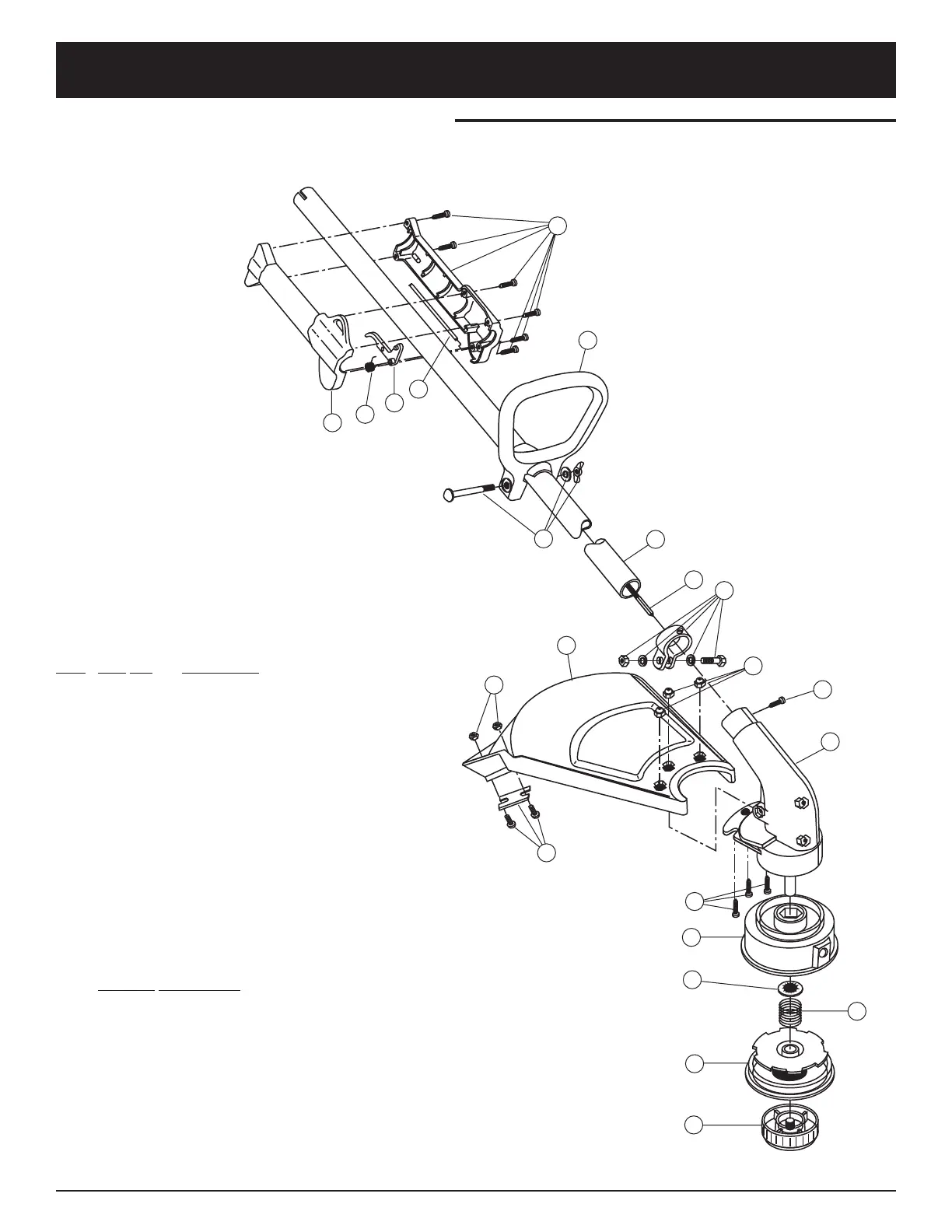

BOOM & TRIMMER PARTS - MT765
2-CYCLE GAS TRIMMER
Item
Part No. Description
1 791-182069 Throttle Housing Assembly (includes 2 & 3)
2 791-610314 Throttle Trigger Spring
3 791-181556 Throttle Trigger
4 753-04901 Throttle Cable
5 791-153064 D-Handle Assembly (includes 6)
6 791-153317 D-Handle Hardware
7 753-04828 Drive Shaft Housing Assembly (includes 8)
8 753-04251 Flexible Drive Shaft
9 791-153597 Lower Clamp Assembly
10 791-180547 Guard Mounting Hardware
11 791-180548 Guard Assembly (includes 12)
12 791-180553 Blade Assembly
13 791-145569 Anti-Rotation Screw
14 791-180549 Gearbox Assembly
15 791-153619 Outer Spool Assembly (includes 16)
16 791-610660 Retainer
17 791-610317 Spring
18 753-1155 Inner Reel
19 791-153066 Bump Head Knob Assembly
Optional Accessories
* 791-610375 Monoflail Cutting Line (50 ft.)
* 791-153577 Spool and Line (25 ft.) Assembly
* 791-682075 Shoulder Strap
* 791-118097 Bump Head Assembly
* not shown
1
4
3
2
1
5
6
7
8
9
11
12
10
13
14
10
15
12
16
17
18
19
