Important!

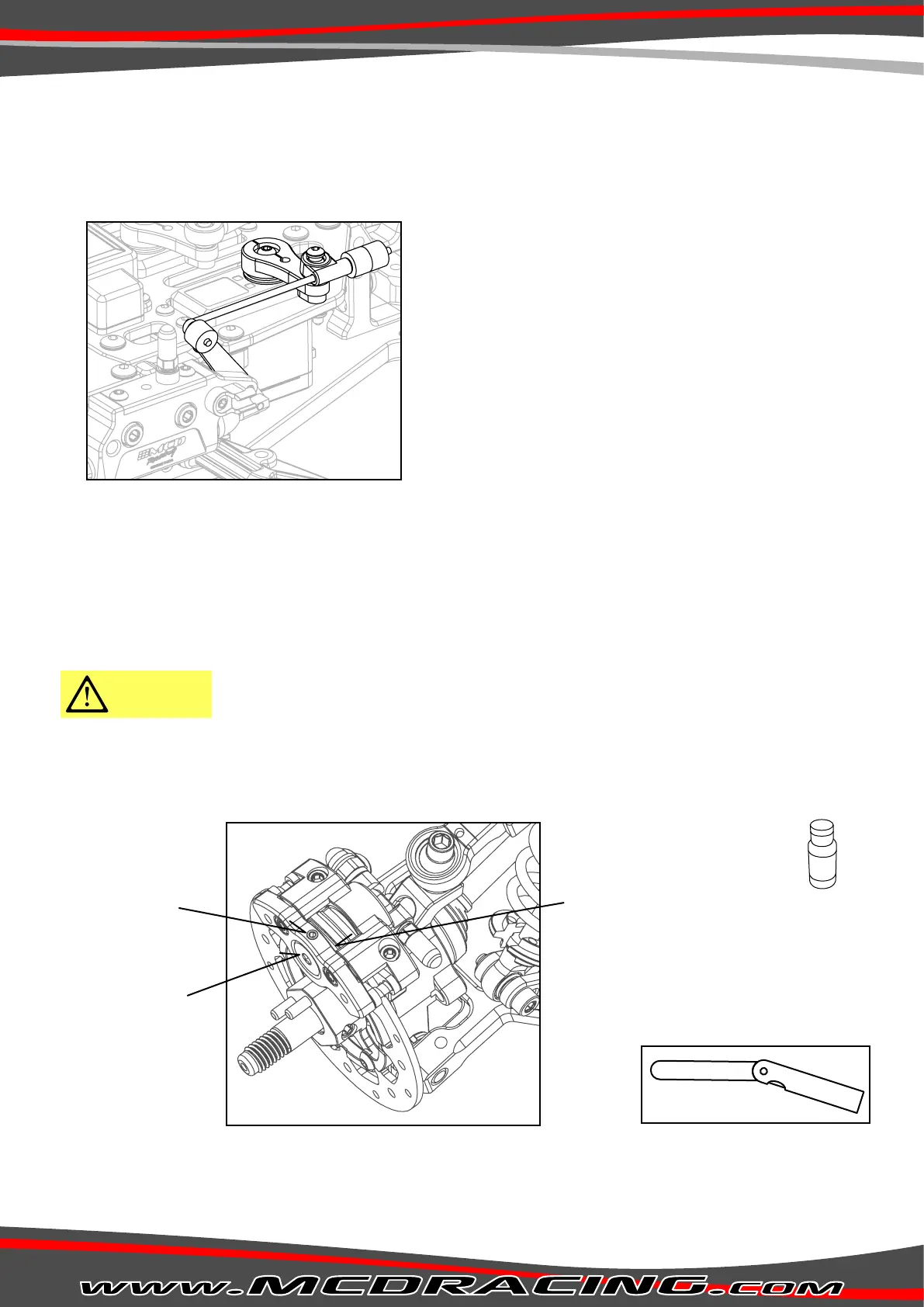

Installing the front brake linkage
Setting the brakes
During operation the brake pads wear over time causing weakening of the brakes.
In order to compensate wear over time unscrew the set-screw and insert a 2mm feeler gauge in between the brake pad
and the disc. Adjust the gap with a 3mm hex screw.
Insert a 2mm a feeler gauge.
Unscrew.
Adjust the gap with a
3mm hex screw.
1. Set the servo horn position parallel as shown in Figure A.
2. Connect the front brake linkage to the servo horn as shown in Figure G.
Figure G
1. After the linkages are installed, switch on your radio and reduce the brake end point from the transmitter EPA menu to 30%.
2. Apply full brake from the trigger and hold.
3. By moving the car back and forth with your hand, start slightly increasing EPA to approx. 50% untill the brakes lock.
4. If it doesn’t lock at 50% turn back to the step 1 and re-adjust until it locks at 50%.
Feeler gauge.
0.2 mm
Brake Fluid
(silicone dot 5)
