McDonald's C842 - Cleaning Platen Surfaces and Edges (No Lower Release Sheets)

38

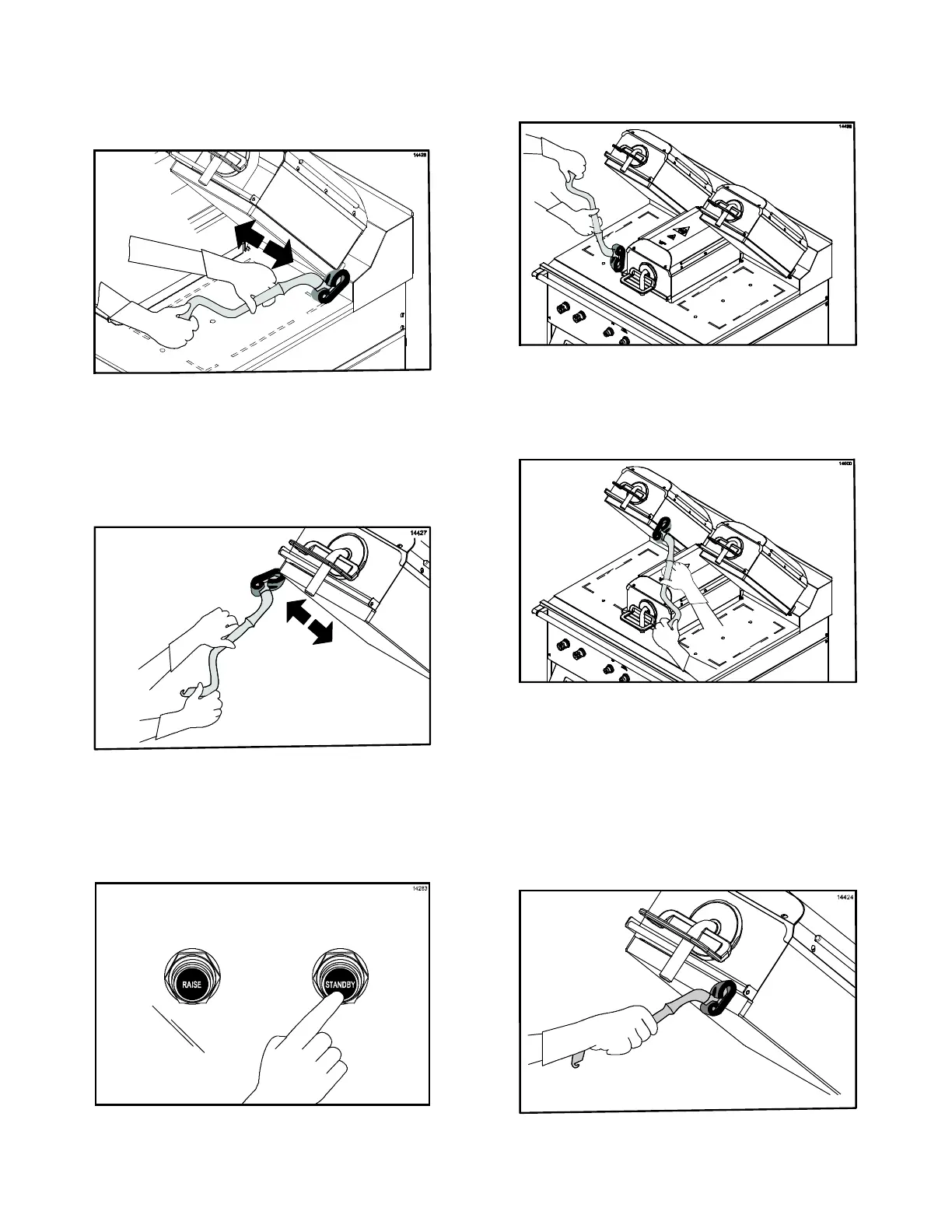

17. Apply the grill cleaner to the back side of
the platens, from the right platen to the
left platen. (See Figure 91.)
Figure 91
18. Apply the grill cleaner to the outer edges
of the right and left platens.
(See Figure 92.)
Figure 92
19. Press the black STANDBY button to lower
the center platen. (See Figure 93.)
Figure 93
20. Apply the grill cleaner to both sides of the
center platen. (See Figure 94.)
Figure 94
21. Apply grill cleaner to the inner edges of
the right and left platens. (See Figure 95.)
Figure 95
22. Press the red RAISE button to raise the
center platen.
23. Using the Kay Grill Cleaning Pad Holder,
scrub the front side of the platens from
the right platen to the left platen.
(See Figure 96.)
Figure 96
