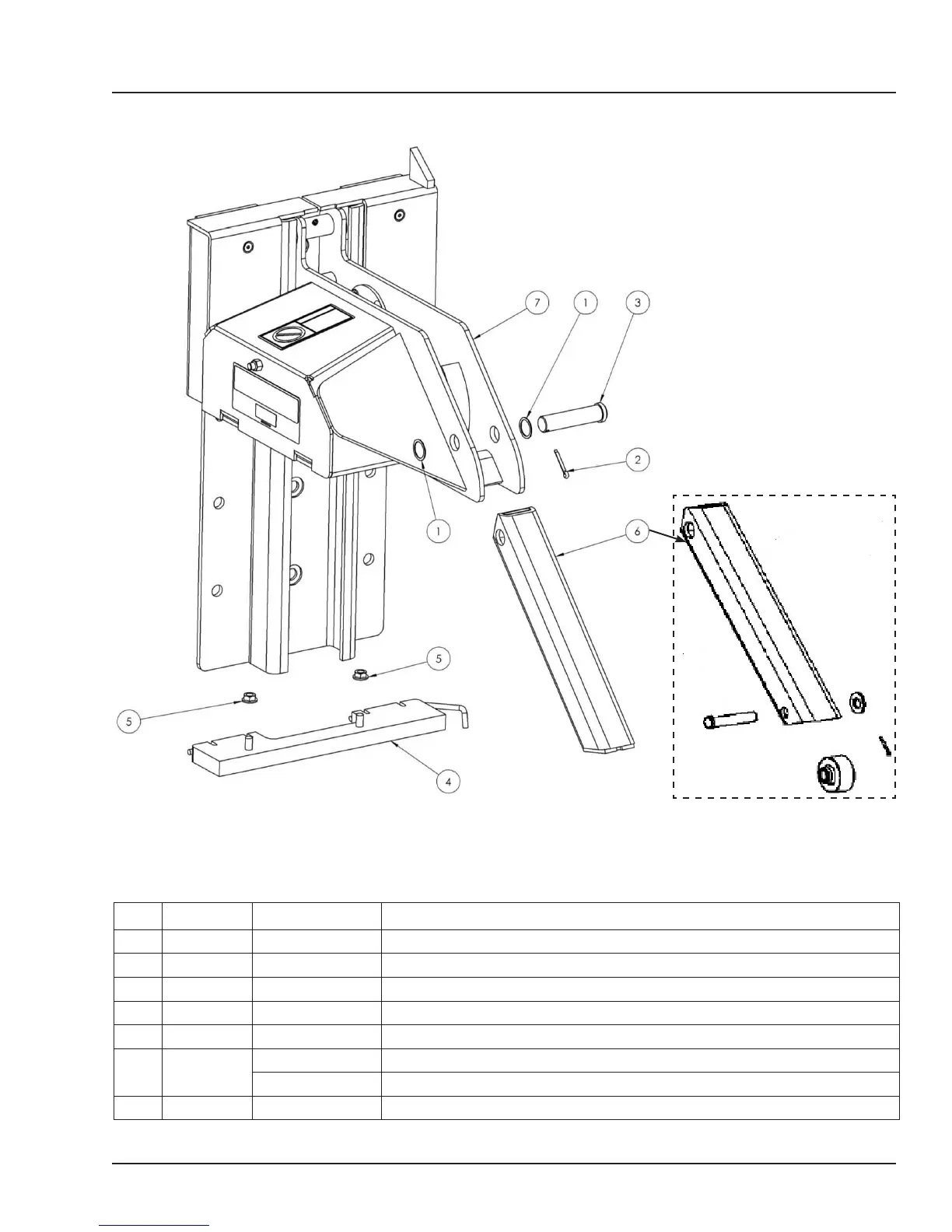

Slope Extensions & Spring Plate
PARTS
Item Quantity Part Number Description
1 2 9701-0217 WASHER, FLAT 1” X 18 GAUGE
2 1 9701-0218 PIN
,
COTTER
3 1 9701-0219 PIN, SLOPE EXTENSION PIVOT
4 1 9701-0105 SPRING MOUNTING PLATE ASSEMBLY
5 2 9701-0220 NUT,LOCK 7/16”-14 SERRATED FLANGE
6 1
9701-0104 SLOPE EXTENSION
9701-0246 SLOPE EXTENSION WITH ROLLER (OPTIONAL)
7 1 9701-0103 CARRIAGE ASSEMBLY KIT (INCLUDES 1,2,3,5,6)
