4

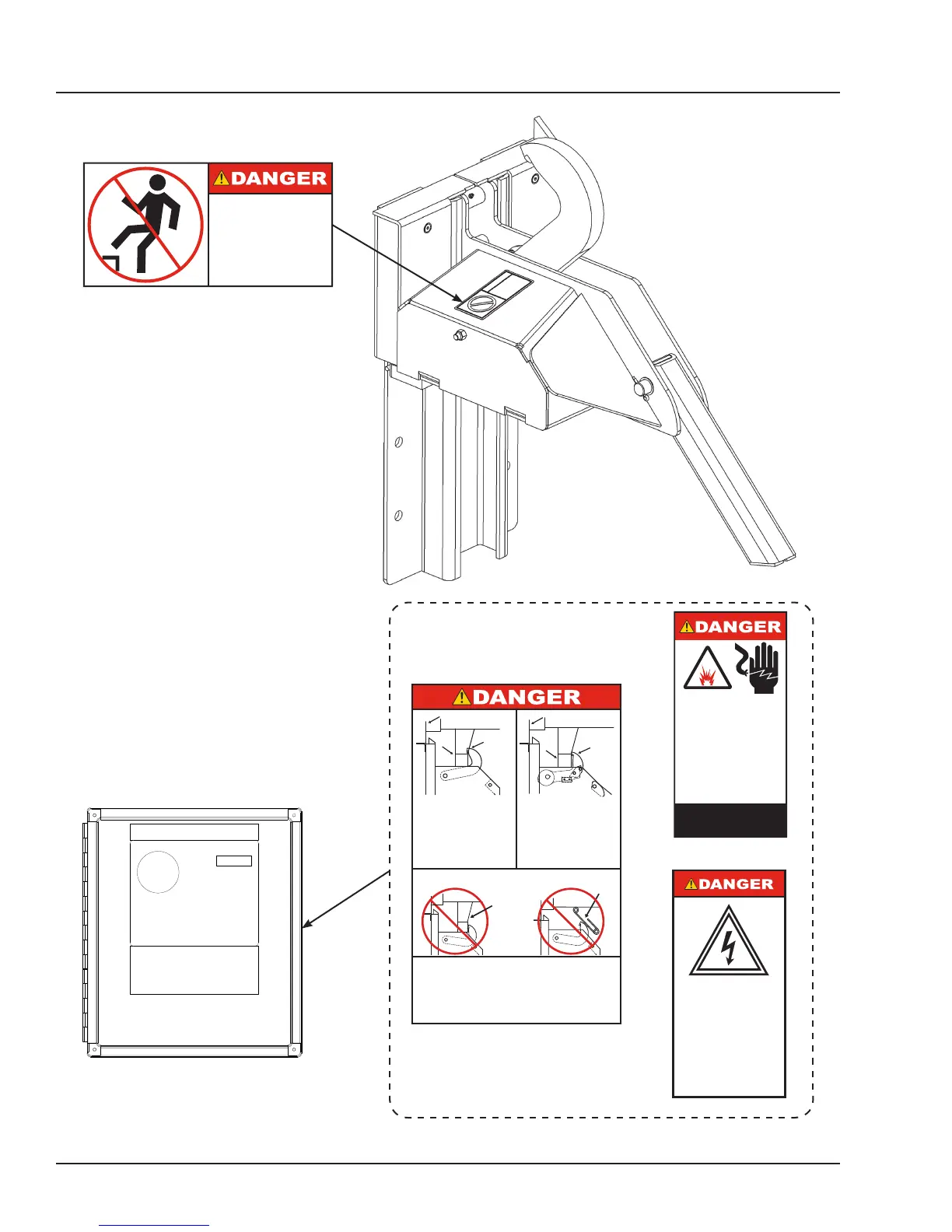

Safety Decals
PRECAUTIONS
File Name: 1751-0149 REV B
Decal Size: 5 x 2.5
NO
STEP
1751-0149 Rev B
Control Box Size: Overlay
Decal Size: 4 x 6.5
File Name: 1751-1051 Rev A
Call Systems Inc. for assistance at (800) 643-5424
• Inspect all lights and alarm (if equipped) daily for proper
operation.
• Only authorized personnel who have read and understand
the owner’s/user’s manual should operate TPR vehicle
restraint.
• Maintain TPR vehicle restraint in accordance to
owner’s/user’s manual.
Dock Face
Hook
RIG
Obstructions
If hook is NOT able to securely capture the RIG, transport vehicle
must be secured by other means.
TPR Hook must securely
capture Rear Impact Guard
(RIG). Visually inspect before
loading/unloading transport
vehicle.
• Area around RIG should be
free of plates, lift gates or other
obstructions for hook to
securely capture the RIG.
TPR UniLock Hook must
securely capture Rear Impact
Guard (RIG). Visually inspect
before loading/unloading
transport vehicle.
Dock Face
RIG
Hook
Lift Gates
1.50"
3.00"
Decal Size: 1.5 x 3
File Name: 1751-0736 Rev A
Arc Flash and
Shock Hazard
PPE [Personal Protection
Equipment] Required
De-energize equipment before
working on or inside. Do not
open cover without appropriate
PPE. Refer to NFPA 70E for
PPE requirements. This panel
may contain more than one
power source.
Hazardous Voltage
Will Result in Death
or Serious Injury
1.50"
3.00"
Control Box Size: Overlay
Decal Size: 1.5 x 3
File Name: 1751-0857 Rev A
Lockout/Tagout
power before
servicing.
Comply with
OSHA 1910.147
1751-0149
1751-1051
1751-0736
1751-0857
*Control box appearance may vary depending on options.
Figure 2
TOLERANCES
(UNLESS OTHERWISE NOTED)
FRACTIONAL:
1/32"
DECIMAL:
.00 =
.01"
.000 =
.005"
ANGULAR:
1
DRAWN BY
CHECKED BY
DRAWING NO.
DATE
johnschlintz
6/20/2018
S Y S T E M S
L o a d i n g D o c k E q u i p m e n t
P O W E R A M P
M C G U I R E
D L M
This print is the property of Systems, LLC and represents a proprietary article in which Systems, LLC retains any and all patent and other rights, including exclusive rights
of use and/or manufacture and/or sale. Possession of this print does not convey any permission to reproduce, print or manufactu
re the article or articles shown therein,
such permission to be granted only by written authorization signed by an officer or other authorized agent of Systems, LLC thereof.
MATERIAL
STOCK NO.
MANUAL PAGE 7
REV A - ECN 18-066
4111-0073 — Sept. 2018
©
2018 Systems, LLC
