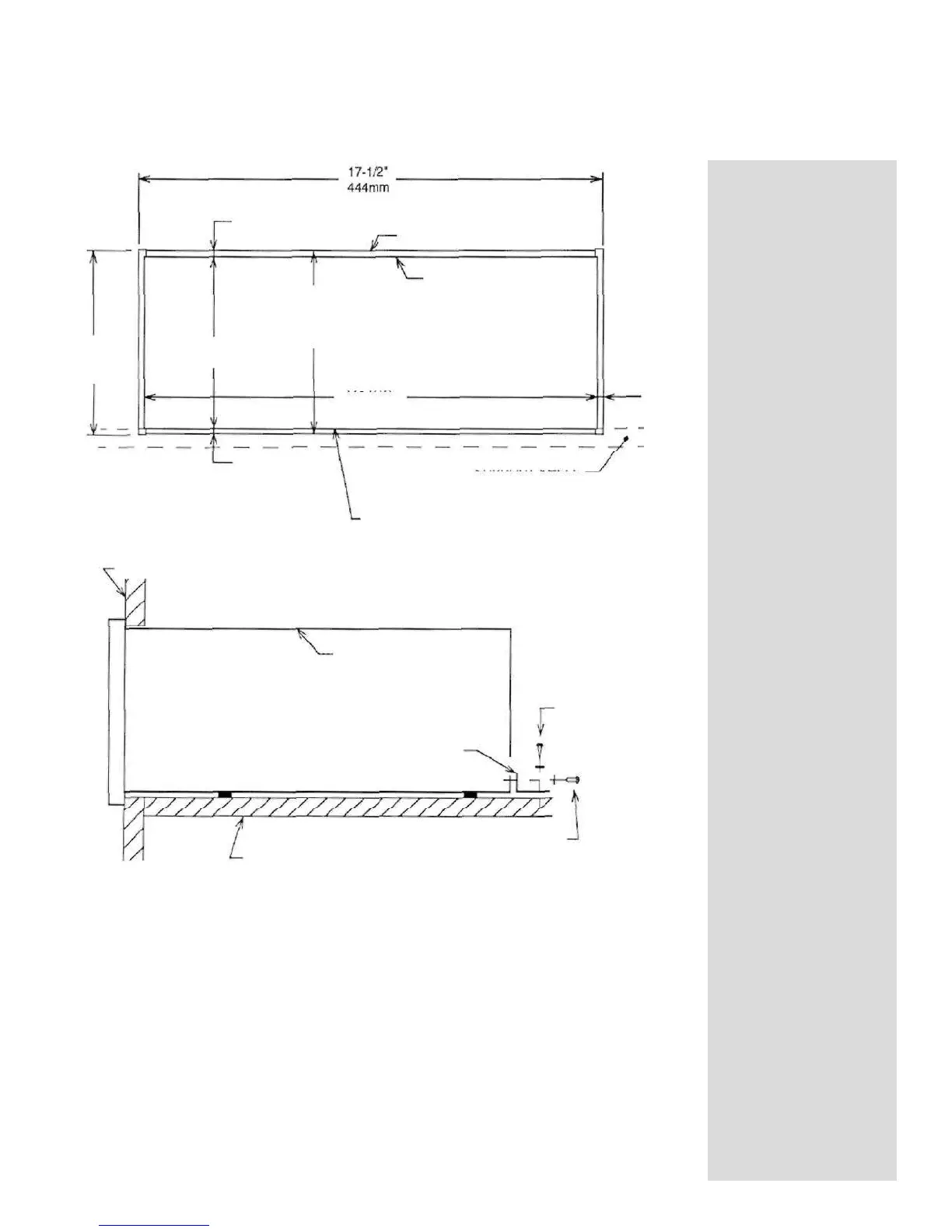

McIntosh C39 - Custom Installation Drawing

7/32"
5.3mm
31
CUSTOM
INSTALLATION
DRAWING
1/4"
6mm
OUTLINE OF FRONT PANEL
EDGE OF CUTOUT
PANEL
HEIGHT
7"
177.8mm
6-9/16"
166.7mm
END CAPS
7-1/16"
179.8mm
17-1/16"
433.4mm
3/16"
5.1mm
BOTTOM OF CUTOUT AND TOP
OF SUPPORT SHELF MUST
COINCIDE
MOUNTING SURFACE
OUTLINE OF UNIT
(SIDE VIEW)
6x1/2
WOOD SCREW
AND WASHER
MOUNTING BRACKET
AT BOTH SIDES OF
REAR PANEL
6-32 x 3/8
MACHINE SCREW
AND WASHER
SUPPORT SHELF
SUPPORT SHELF
