McIntosh MA6200 Service Information

McIntosh MA6200
34 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Page #14 background imageLoading...
Page #14 background image

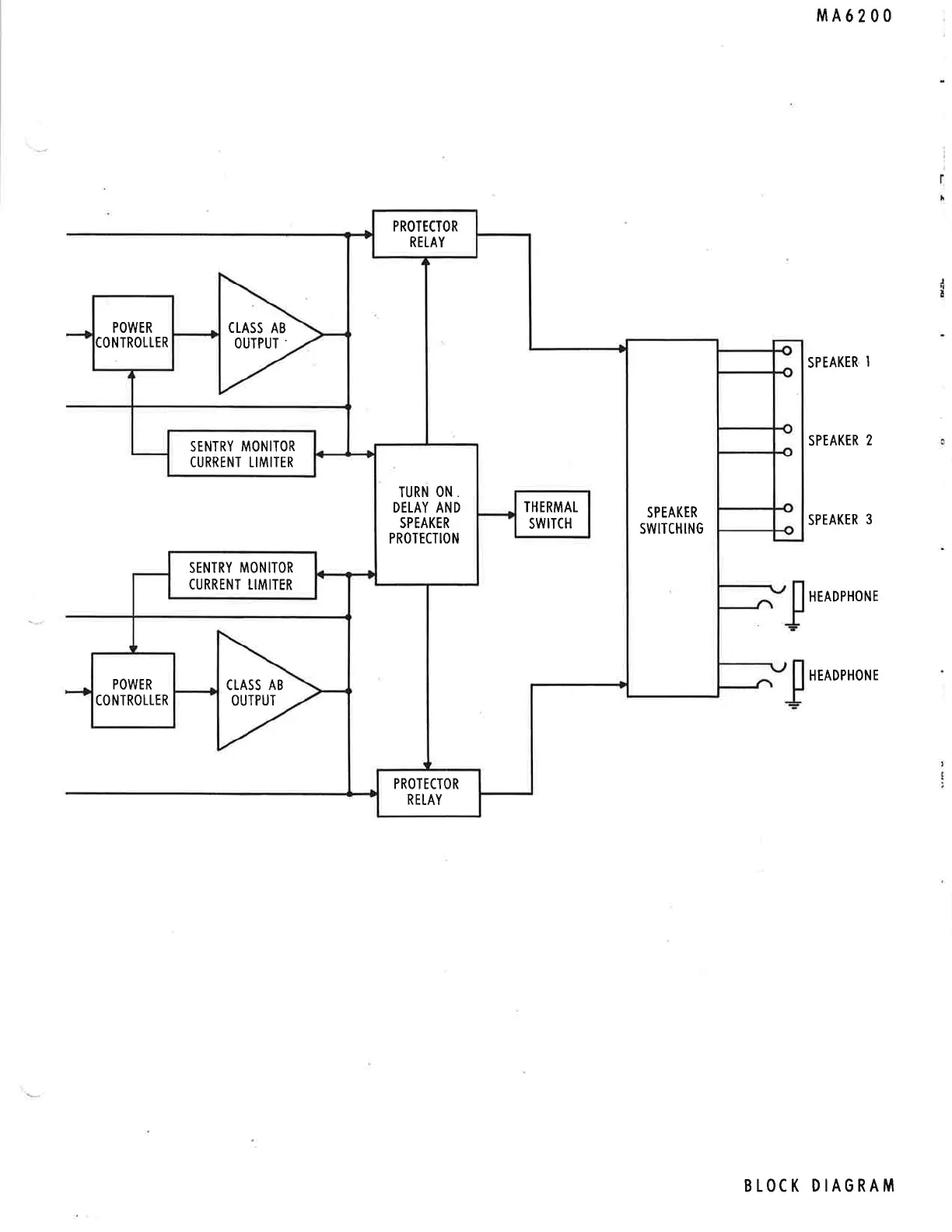

MAó2OO
SPEAKER
I
SPEAKER
2
SPEAKER
3
HEADPHONE
HEADPHONE
PROTECTOR
RE[AY
POWER
CONTROLLER
CLASS AB
OUTPUT.
SENTRY MONITOR
CURRENT LIMITER
THERMAL
swrTcH
TURN
ON.
DELAY
AND
SPEAKER
PROTECTION
SENTRY MONITOR
CURRENT IIMITER
SPEAKER
SWITCHING
POWER
CONTROLLER
CLASS
AB
OUTPUT
PROTECTOR
RELAY
BLOCK
DIAGRAM
