066462 ELECT CAP 1O UF 100VDC AMMO C35 C36 C37 C38
066469 ELECT CAPACITOR 470MF 50V T&R C176
066504 CAPACITOR ELECT 25000UF 75V C142 C143
070047 SILICON DIODE 1N4148 T&R D1 D3 D4 D5 D6 D7 D8
D9 D10 D21 D22 D25
D26 D27
070130 ZENER DIODE 8.2V,1/2W D2
070131 DIODE RECTIFIER D11 D12 D13 D14 D15
D16 D23 D24
070139 RECTIFIER BRIDGE MC1000 D28
087050 REED RELAY FORM 1A,5V,500 OHMS K2 K3 K4 K5 K6 K7 K8
K9 K10 K11 K12 K13
K16 K17 K18 K20
087057 RELAY K1 K21
087069 POWER RELAY TV5 24V K24
087072 RELAY 24V TV8/VDE CERTIFIED K22 K23
089089 FUSE 2A SLO-BLO 5X20 F1
117215 4-PIN CONNECTOR J3 J8
117219 MALE CONN 10 POS J1
117244 FRICTION LK CONN 9POS MALE J6 J7
117279 11-POS. MALE CONN. J2
117404 HEADER 2-PIN 0.156 J4 J5
117436 PJ261G PHON JACK, GOLD J23
117455 PHONO JACK 8P, GOLD PLATED J21 J22
117494 MINI JACK J28
117549 HEADPHONE JACK DUAL BLACK 1/8 J24 J25 J26 J27
117708 FASTON BLADE W/FEET J10 J11 J12 J13 J14 J15
J16 J17 J18 J19 J2
117712 FASTON BLADE .110 J20
117717 MTA-156 HEADER 8PIN J9
122297 CHOKE OUTPUT .65UH L2 L3
132172 TRANSISTOR SI PNP MPSA55 Q50
132193 TRANSISTOR J.F.E.T. 2N4392 Q62 Q64
132223 TRANSISTOR NPN MPS4124 2K/REEL Q44 Q46 Q47Q57 Q58
Q59 Q61Q63 Q66 Q75
Q78 Q79 Q80 Q81 Q83
Q87 Q88
132224 TRANSISTOR PNP Q1 Q40 Q48 Q49 Q52
Q69 Q73 Q74 Q76 Q77
132254 TRANSISTOR NPN Q54 Q55 Q56 Q67 Q68
Q71 Q85 Q86
132255 TRANSISTOR PNP Q2 Q51 Q53 Q65 Q70
Q72
132261 TRANSISTOR PNP Q18 Q82
132262 TRANSISTOR NPN Q17 Q84
133028 IC OPERATIONAL AMPLIFIER IC1 IC3
133067 NE5534AN OP AMP LOW NOISE IC16 IC17
133108 IC +5V REGULATOR IC5
133153 IC REGULATOR -15V IC6
133154 IC REGULATOR 15V IC7
133175 IC AND 2 INPUT X 4 IC14
133180 LB1720 8 LN DRIVER ARRAY IC10 IC13
133186 IC SHFT REG SER-PAR IC9 IC11 IC12
133260 DUAL OPERATIONAL AMPLIFIER IC2 IC4 IC15
133360 OCTAL DAR TRANS ARRAY W/DIODE IC8
134389 TRIM POT 100K,10%,3/8SQ. R237 R238
137042 FLAMEPROOF RES 47 OHM 5% 1/4W R56 R60
141165 RES CF 10 5% 1/2W R77 R79 R119 R230
R231 R232
144053 RES MF 10K 1% 1/4W R122 R134 R171 R217
R218
144071 METAL FILM RES 365 OHM 1% 1/4W R265 R266 R267 R268
R269 R270 R271 R272
144086 METAL FILM RES 475 OHM 1% 1/4W R45 R167 R168 R187
144090 METAL FILM RES 1K 1% 1/4W R36 R164 R170 R184
R241 R242 R249 R255
R262 R263 R264
144095 RES MF 3.32K 1% 1/4W R41 R55 R188 R193
PART NO DESCRIPTION REFERENCE NO
049193 INPUT DRIVER
003611 CARD MOUNTING BRACKET SP1 SP2
061196 DISC CAP 47PF,20%,N470 50V C146 C152 C157 C159
061199 DISC CAP 100PF 10% N1500 50V C58 C61 C72 C73 C74
C75 C76 C78 C140 C141
C156 C158
061248 DISC CAP .1MF,25V,Y5T C32 C33 C55
061268 MONO CAP .1UF,50V,Z5U C62 C63 C64 C65 C66
C67 C68 C69 C70 C71
C161 C162 C171 C172
061273 220PF 5% 100V NPO C173 C174 C175
064254 M POLY FILM CAP .1MF,10%,100V C129
064267 M. POLYESTER CAP .22MF,400V C145
064312 CAP M POLY .01UF 5% 63VDC C165 C167
064318 CAP M POLY .033UF 5% 63/100VDC C166 C168
064364 CAP POLYPROP .047MF 10% 250V C47 C144
066269 CAP ELECT 1UF 10% 50V C115 C116
066309 CAP ELECT 1000UF 10V C132
066330 CAP ELECT 220UF 16V SHORT CAN C163 C164
066344 CAP ELECT 100UF 25V C133 C134
066360 CAP ELECT 3300UF 35V C125 C127 C128
066361 CAP ELECT 1000UF 20% 35V C126
066445 ELECT CAP 10MF, 50V AMMO PACK C30 C85 C86 C87 C88
C89 C90 C91 C93 C94
C95 C96 C97 C98 C99
C100 C102 C103 C104
C105 C106 C115 C117
C118 C123 C124 C153
C154 C177
066446 ELECT CAP 47MF, 35V AMMO PACK C92 C101
066447 ELECT CAP 100MF 16V AMMO PACK C22 C40 C119 C120
C121

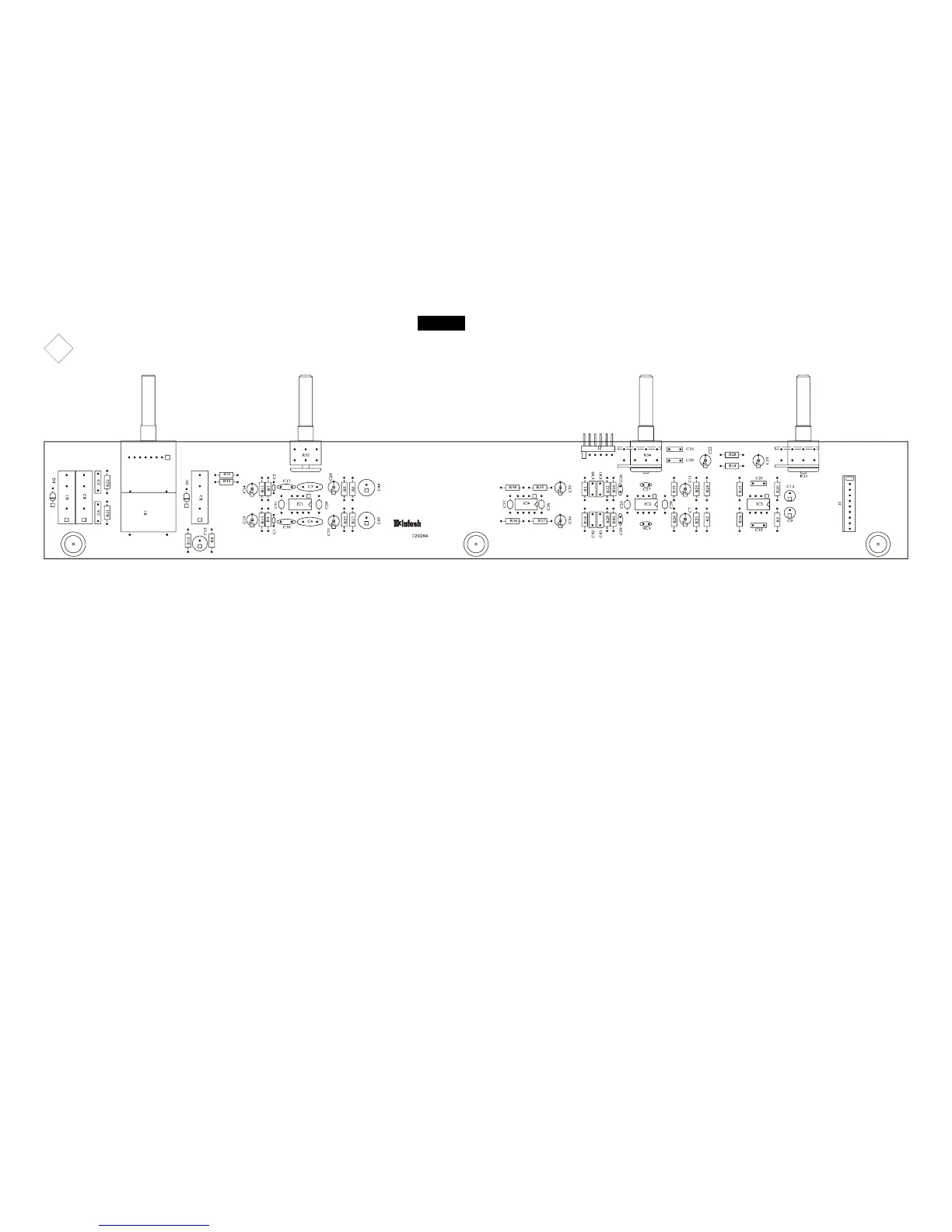

TONE 049268
PARTS LIST
25
26
MA6500
