McIntosh MA7000 Connection Diagrams

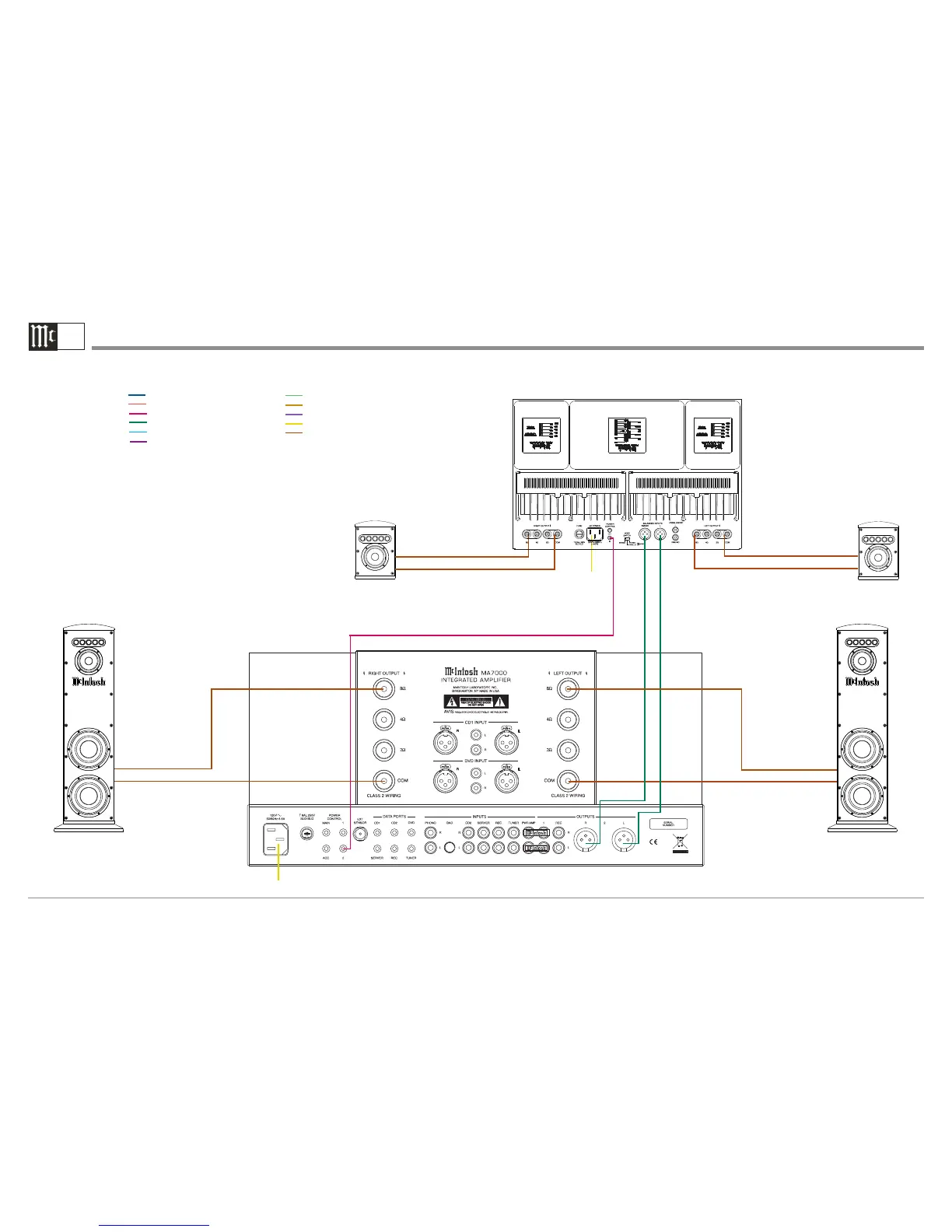

MA7000 Integrated Amplifier Output and Loudspeaker Connection Diagram
1B
Note: Refer to the MA7000 Owner’s Manual page 9 for additional connection information.
Connection Legend:
Data Cable*- Digital Signal Cable -
Sensor/Keypad Cable - RS232 Cable -
Power Control Cable* - Ground Wire -
Audio Signal Cable - AC Power Cords -
Video Signal Cable - Loudspeaker Cable -
RF Signal Cable -
*
2 conductor shielded with 1/8 inch stereo mini phone plug on each end.
Connect to AC Outlet
McIntosh Power Amplifier - Secondary Room (Partial View)
Connect to
AC Outlet
+
-
+
-
+
-
+
-

McIntosh MA7000 Specifications

General

Amplifier class	-
Frequency range	20 - 20000 Hz
Audio output channels	2.0 channels
Peak power per channel	250 W
Signal-to-Noise Ratio (SNR)	115 dB
Total Harmonic Distortion (THD)	0.005 %
XLR in	Yes
Purpose	Home
Product color	Black
Connectivity technology	Wired
AC input voltage	120 V
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	558.8 mm
Width	444.5 mm
Height	239.7 mm
Weight	44300 g
