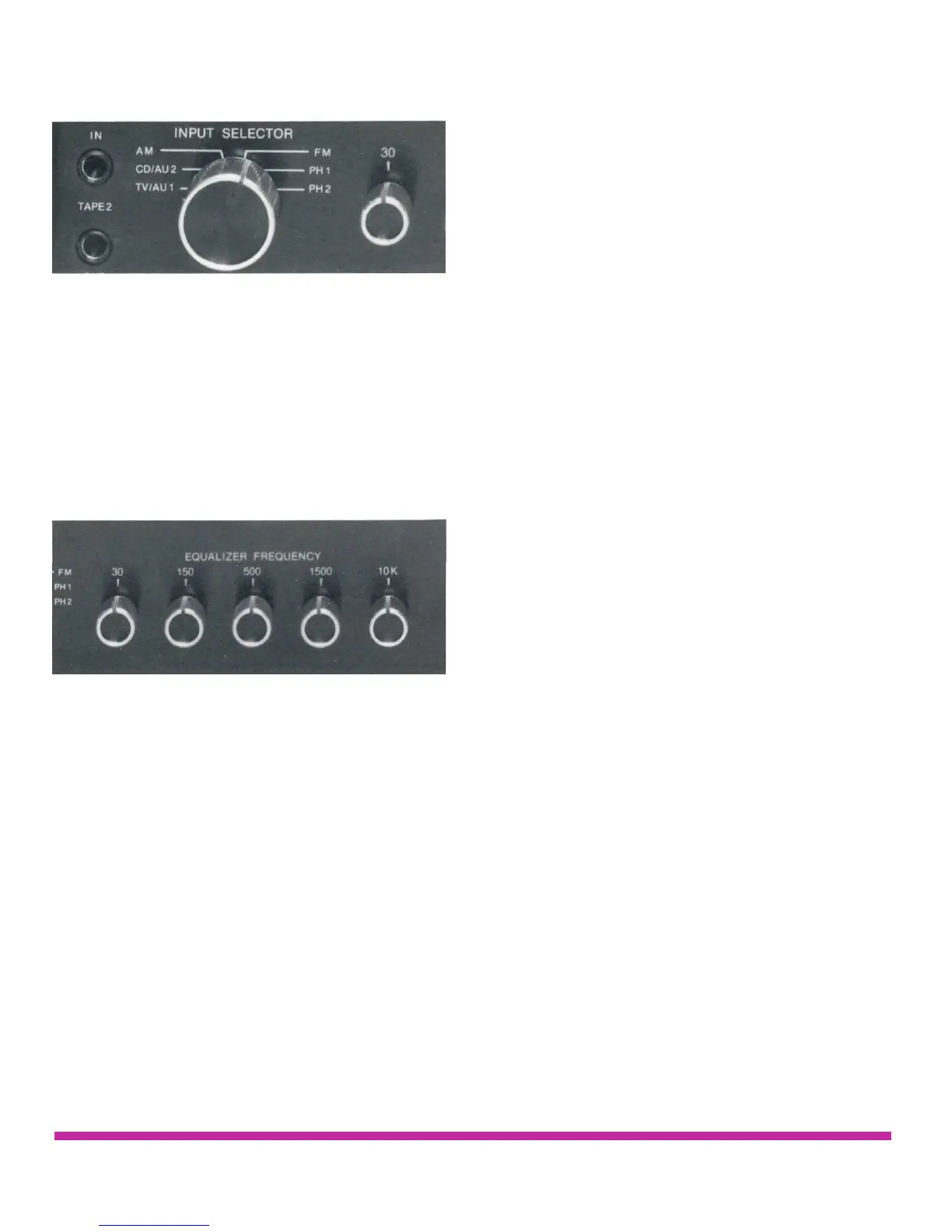

INPUT SELECTOR
Use the six position INPUT SELECTOR switch to select
the program source to which you wish to listen. The pro-
gram selected will also be fed to the TAPE OUT jacks.
TV/AU1: To listen to any high level source such as a TV
monitor or tape recorder. The station display area will
show AU1.
CD/AU2: To listen to a compact disc player or other
high level source. The station display area will show AU2.
AM: To listen to AM radio broadcasts. The station
display area will show the AM station frequency in
kilohertz.
FM: To listen to FM stereo radio broadcasts. The station
display area will show the FM station frequency in
megahertz.
PH1: To listen to a record player connected to PH1 in-
put jacks. The station display area will show PH1.
PH2: To listen to a second record player connected to
the PH2 input jacks. The station display area will show
PH2.
EQUALIZER FREQUENCY CONTROLS
Each of the five EQUALIZER FREQUENCY controls raises
or lowers the volume of a band of frequencies whose
center is the frequency marked above the control. Both
left and right channels are affected by each control. The
center or flat response position of each control has a de-
tent for easy reference. When each control is in the de-
tent position the equalizer is removed from the pre-
amplifier circuits and the response is perfectly flat with
the equalizer circuits removed from the signal path.
Use the EQUALIZER FREQUENCY controls to modify the
sound and balance of program material. Here are some
suggestions with which to start.
ADJUSTMENT TO:
Make deep bass louder
Make all bass louder
Reinforce voices
Brighten violins
and trumpets
Emphasize cymbals
EQUALIZER CORRECTION
Raise 30
Raise 30 and 150
Lower 150 and raise 500
Raise 1500
Raise 10k
FRONT PANEL CONTROLS 9
