POWER CONTROL IN receives
turn-on signals from a McIntosh
component and POWER CONTROL
OUT sends turn-on signals on to
another McIntosh Component
Connect the supplied
AC/DC Power Adapter
DC Output Connnector
IR IN for connecting an
IR Receiver
DATA IN receives
control data from a
McIntosh Control
Center
COAXIAL and OPTICAL AUDIO
OUTPUTS send a Digital Audio
Signal to a Preamplifier or an A/V
Control Center with a D/A Converter
or a decoder
BALANCED AUDIO OUT-
PUTS supply analog audio
signals to connect to Balanced
Inputs of other components
UNBALANCED AUDIO
OUTPUTS supply analog
audio signals to Unbalanced
Inputs of other components

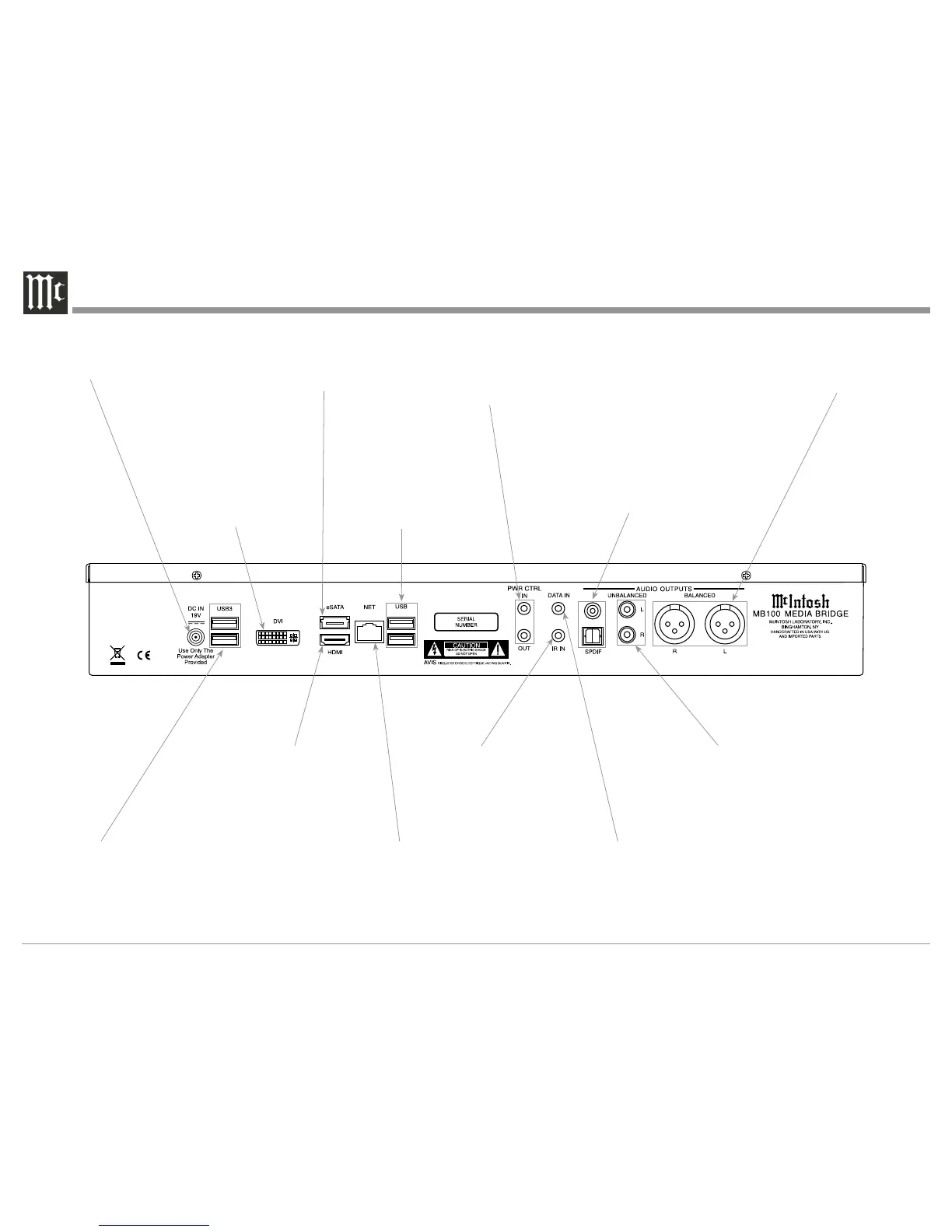

Rear Panel Connections
USB 3 (version 3)
for connection of an
external storage device
capable of transferring
data at high speed
DVI (Digital Video Interface)
Output for connecting to a
HDTV or Monitor with a DVI
Input Connector with a video
resolution 720p or 1080p
HDMI (High-Definition Multimedia
Interface) Output (Audio and Video
Digital Signals) for connecting to
a HDTV or Monitor with a HDMI
Input with a video resolution 720p or
1080p
eSATA (External Serial ATA)
for connection of an external
storage device capable of trans-
ferring data at very high speed
NETWORK Connector
for connecting the MB100
to a Broadband Ethernet
Network
USB (version 2)
for connection of
an external storage
device capable of
transferring data
