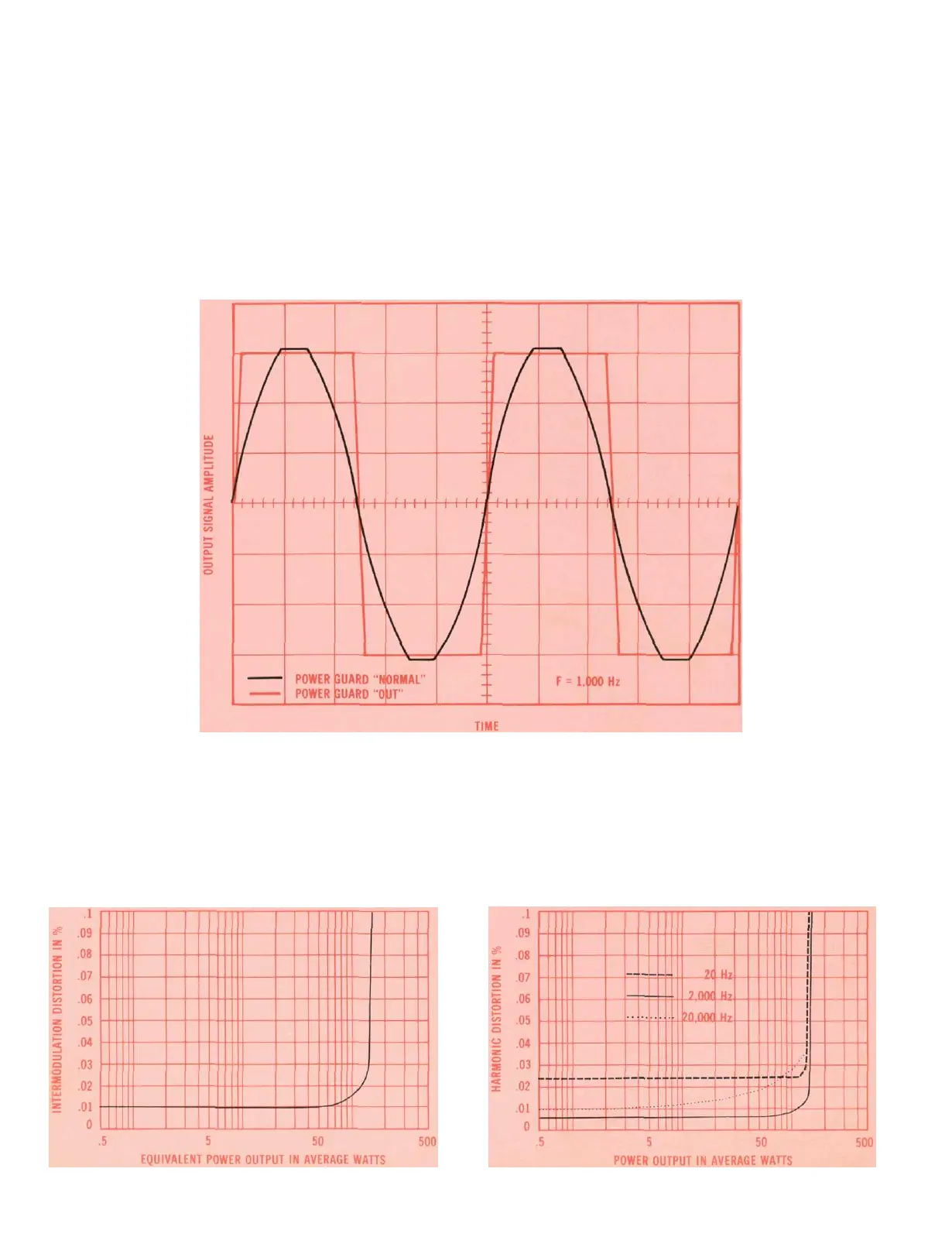

OUTPUT SIGNAL WAVEFORM SHOWING ACTION OF POWER
GUARD TO ELIMINATE OUTPUT SIGNAL CLIPPING. AMPLIFIER
INPUT IS OVERDRIVEN BY 20 dB FOR BOTH OSCILLOGRAM
TRACES.
13
HARMONIC DISTORTION VS. POWER OUTPUT
INTERMODULATION DISTORTION VS. POWER OUTPUT
