10
Illustration 1
Installation
Installation and Illustration 1
It is extremely important for proper operation of this equip-
ment that it be installed by an experienced professional in-
staller. This will help to assure your long term satisfaction.
There are several different methods of mounting the
MPM4000 in the dash. Please refer to the following appro-
priate illustration(s) on the following pages.

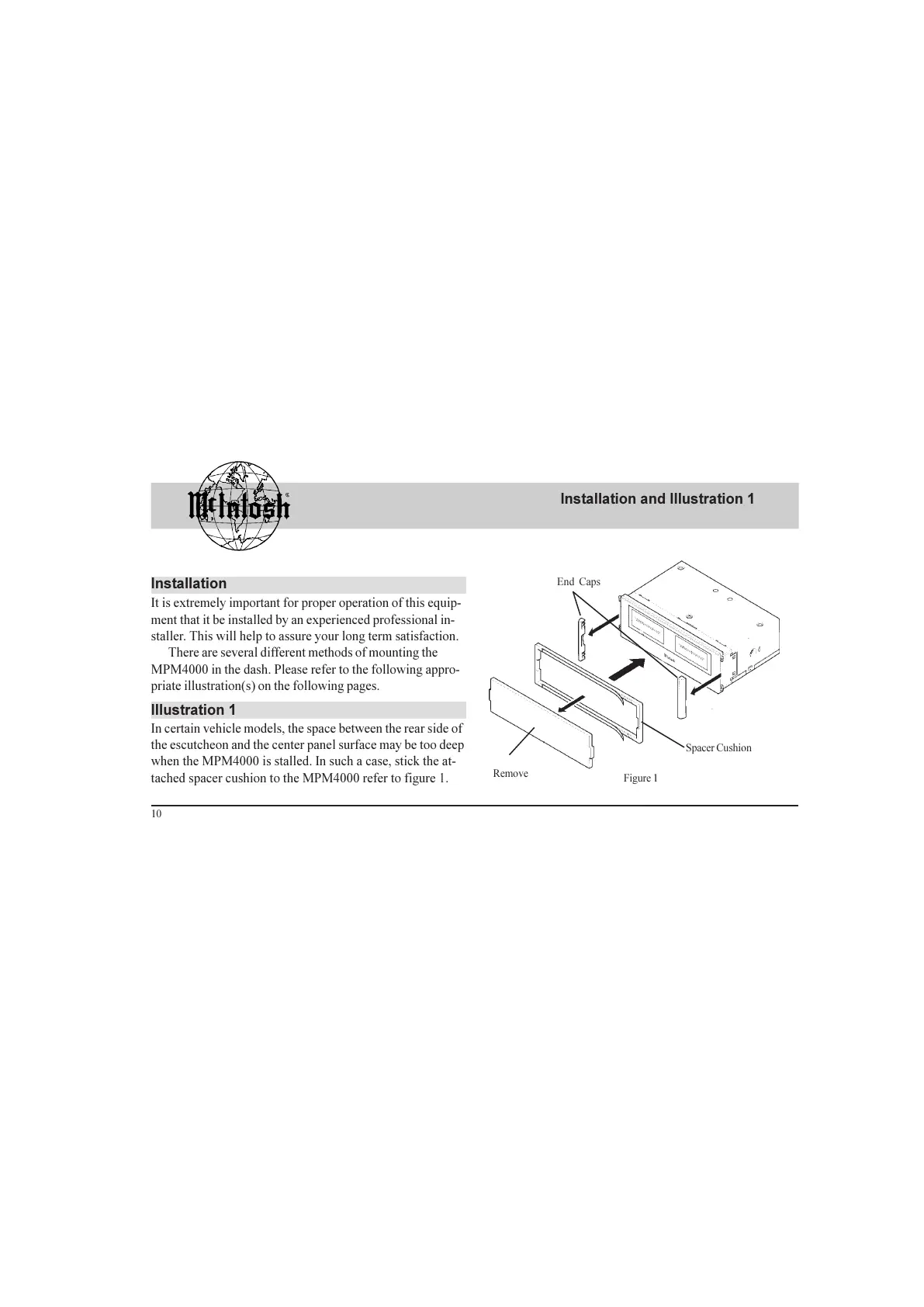

In certain vehicle models, the space between the rear side of
the escutcheon and the center panel surface may be too deep
when the MPM4000 is stalled. In such a case, stick the at-
tached spacer cushion to the MPM4000 refer to figure 1.
Spacer Cushion
End Caps
Remove
Figure 1
To Next Page
