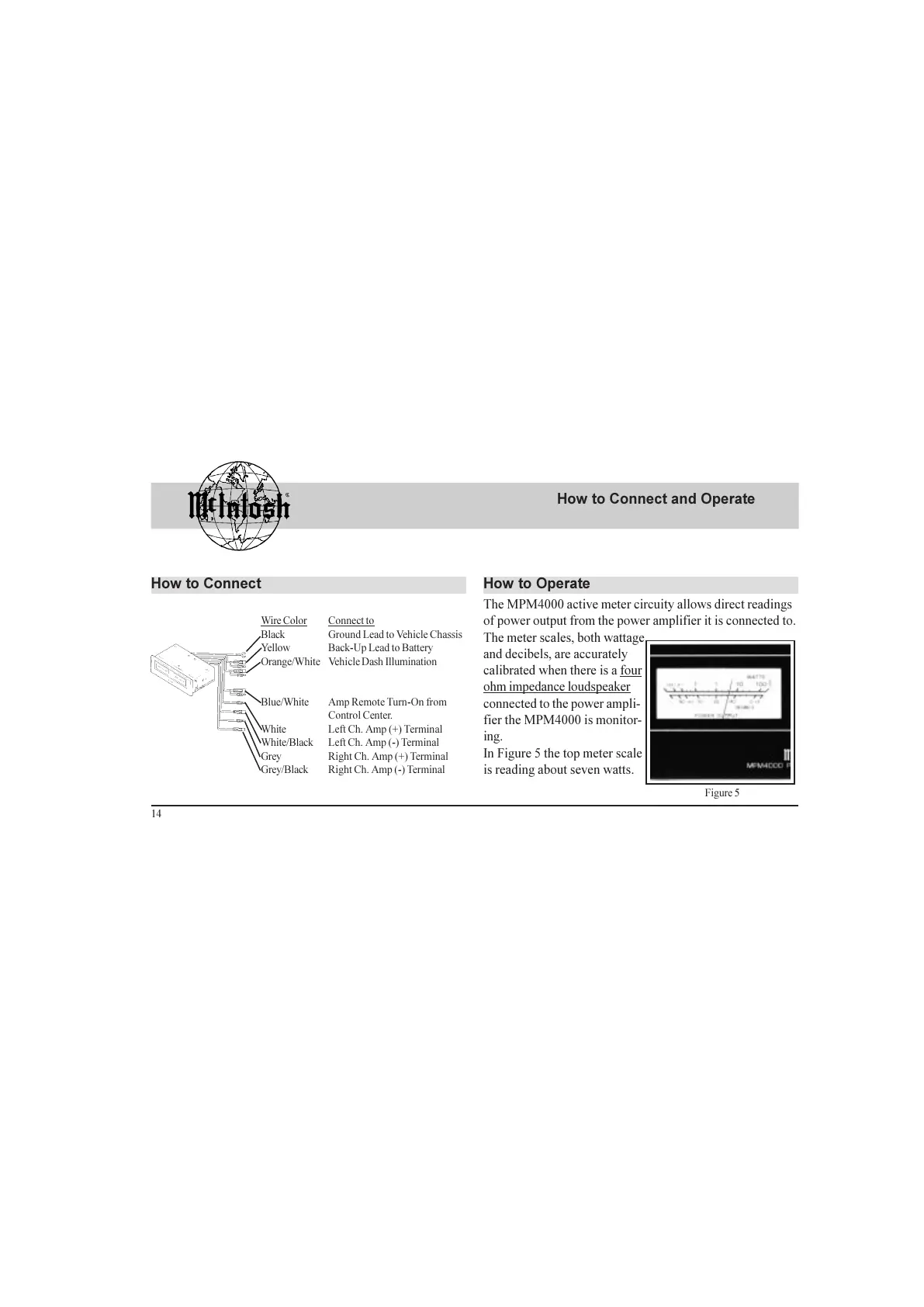

14
The MPM4000 active meter circuity allows direct readings
of power output from the power amplifier it is connected to.
The meter scales, both wattage
and decibels, are accurately
calibrated when there is a four
ohm impedance loudspeaker
connected to the power ampli-
fier the MPM4000 is monitor-
ing.
In Figure 5 the top meter scale
is reading about seven watts.
How to Operate
How to Connect and Operate
How to Connect
Wire Color Connect to
Black Ground Lead to Vehicle Chassis
Yellow Back-Up Lead to Battery
Orange/White Vehicle Dash Illumination
Blue/White Amp Remote Turn-On from
Control Center.
White Left Ch. Amp (+) Terminal
White/Black Left Ch. Amp (-) Terminal
Grey Right Ch. Amp (+) Terminal
Grey/Black Right Ch. Amp (-) Terminal
Figure 5
